In the vast world of modern industry, temperature measurement technology is like a silent guardian, silently monitoring the temperature changes at every critical link. Especially in the field of marine and stationary diesel engines, accurate measurement of exhaust gas temperature is essential to ensure the safe operation and efficiency optimization of equipment. The UST 3 thermocouple assembly, as a leader in this field, has become a competent assistant for engineers with its excellent performance and precise measurement capabilities.

Introduction: The Importance of Temperature Measurement

In marine and stationary diesel engines, the control of exhaust gas temperature is key to ensuring engine performance and extending service life. Too high an exhaust temperature can lead to damage to engine components, while too low a temperature can mean incomplete combustion, reducing fuel efficiency. Therefore, a reliable and accurate temperature measurement system is indispensable. The UST 3 thermocouple assembly, with its unique design and advanced technology, offers the perfect solution to this challenge.

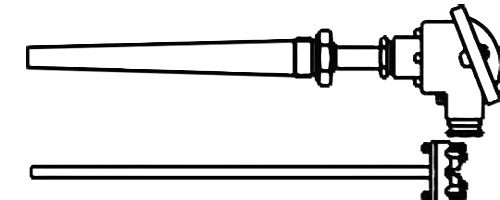

Product Overview: Superior Performance of UST 3 Thermocouple Assemblies

Designed for exhaust temperature measurement of ships and stationary diesel engines, UST 3 thermocouple assemblies are capable of stable operation in high-velocity gaseous media up to 800°C. The core strength of this component is its ability to provide accurate temperature readings in extreme environments, ensuring safe operation and optimal performance of the engine.

Technical features: the perfect combination of robustness and precision

The technical characteristics of the UST 3 thermocouple assembly are the key to its success. First of all, the component is certified by multiple classification societies, which means that it meets stringent industry standards and is able to work reliably in a variety of harsh environments. Secondly, its replaceable measurement insert design makes maintenance and calibration quick and easy, eliminating the need to shut down the production process, significantly reducing downtime.
In addition, the UST 3 thermocouple assembly is designed with a robust construction with high vibration resistance and compliance with IEC 68-2-6 standards, ensuring reliability and durability in vibration environments. The use of type K thermocouples in accordance with IEC 584-1 guarantees high measurement accuracy and long-term stability. At the same time, an optional head-mounted transmitter further increases the integration and convenience of the system.

Connector Type & Insulation Resistance Testing: The Guardian of Electrical Safety

UST 3 thermocouple assemblies are available with both Type B and Type B+BHX connectors, the latter of which is suitable for mounting transmitters, providing users with flexible options. In terms of insulation resistance test, the component was tested at 20°C and 500°C with a voltage of 500V, and the results showed that the minimum insulation resistance was 1000MΩ at 20°C and 5MΩ at 500°C, which ensures electrical safety and provides users with reliable assurance.

Connection diagram and response time: convenient operation and quick response

The UST 3 thermocouple assembly provides a clear connection diagram for single and dual thermocouples, as well as to the transmitter FPTU/T, making it easy for the user to wire and configure correctly. In terms of response time, 0.5/0.9 time represents the time it takes for the sensor to reach the final value of 50%/90% of the temperature change, and this fast response capability ensures real-time and accurate temperature measurement.

Manufacturer's message: A symbol of professionalism and trust

UST 3 thermocouple assemblies are manufactured by AMETEK Denmark A/S, a company with a strong reputation in the field of industrial measurement. The manufacturing base in Allerød, Denmark, not only provides high-quality products, but also provides professional technical support and after-sales service to ensure that users can get the best experience.

Conclusion: Future outlook for UST 3 thermocouple assemblies

With the continuous progress of industrial technology and the increasingly stringent environmental protection requirements, the requirements for temperature measurement technology are also getting higher and higher. With its superior performance and precise measurement capabilities, UST 3 thermocouple assemblies not only meet today's needs, but also lay a solid foundation for future development. As the precise choice for temperature measurement in marine and stationary diesel engines, UST 3 thermocouple assemblies continue to shine on the industrial measurement stage, supporting engineers around the world.

UST 3 thermocouple assemblies are not only an accurate choice for temperature measurement, but also an important part of industrial automation and intelligence, and their future development prospects are exciting.
