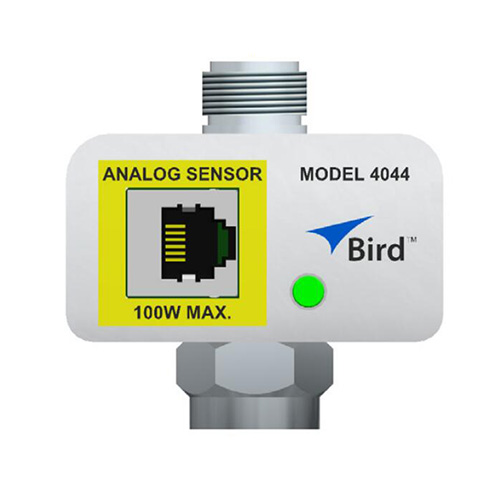

Bird - 4044 Non-Directional RF Power Sensors
Bird - 4044 Non-Directional RF Power Sensors Measures output power of either analog or digitally modulated radios up to 125 watts.4044 Series Non-Directional Power Sensors are designed to be used for continuous power monitoring in multiple Land Mobile Radio (LMR) systems when used with the Bird 3141 Channel Power Monitor (CPM). The 4044 sensor is typically used to measure forward average power on a 50 ohm RF transmission line with a maximum 125 watt forward power level in a frequency band with an overall range of 118 to 940 MHz.
Product Features
- Economical and capable of measuring the output power of either analog or digitally modulated radios up to 125 watts.
- Accurate to within +/-5% of reading with traceability to NIST.
- Non-directional and ideal for use at the input to each channel of the transmit combiner where the VSWR is well controlled.
product specifications:
| Item No | Bird 4044 |
| Item Name | Non-Directional Power Sensor |
| Measurement Range - FWD Power | 2.5 W to 125 W |
| Measurement Range - RFL Power | N/A |
| Measurement Accuracy | ± 5% of reading |
| Frequency Range |
4044-1-ffwwxx-yyzz (See connection options below to build part number) ff: Frequency Range 42 = 118 MHz to 144 MHz 44 = 144 MHz to 244 MHz 45 = 380 MHz to 450 MHz 46 = 450 MHz to 512 MHz 47 = 762 MHz to 806 MHz 48 = 806 MHz to 869 MHz 49 = 896 MHz to 940 MHz ww: Max Forward Power Measurement 04 = 125 W xx: Communication Interface 04 = 0-4 V Analog yy: Input Connector 01 = N (F) 02 = N (M) 03 = 4.3/10 (F) 04 = 4.3/10 (M) zz: Output Connector 01 = N (F) 02 = N (M) 03 = 4.3/10 (F) 04 = 4.3/10 (M) |
| Impedance Ω | 50 |
| Insertion | Loss:< 0.1 dB |
| VSWR: <1.10:1 (max) | |
| Intermodulation Distortion - PIM | <-140 dBc |
| Power Supply | 15 VDC, 5 mA, max (from 3141) |
| Interface | 0-4 VDC via RJ-25 Connector |
| Temperature | 0 to 50 °C (32 to 122 °C) |
| Size | 2.3 in x 2.2 in x 1.7 in (50 mm x 56 mm x 43 mm) |
| Weight | 0.2 lbs (0.1 kg) |
| Compliance | CE, RoHS |
| Standard Accessories | 10' RJ-25 Interface Cable |
| Features | Description |
|---|---|
| Input RF connector | N-Type (female) connector (shown), other connector types available, see "Model Identification" on page 7 |
| Output RF connector | N-Type (male) connector (shown), other connector types available, see "Model Identification" on page 7 |
| Data Connector | RJ-25 connector supplies power and data connection. |
| LED (green) | LED illuminates when power is applied to the sensor. |
