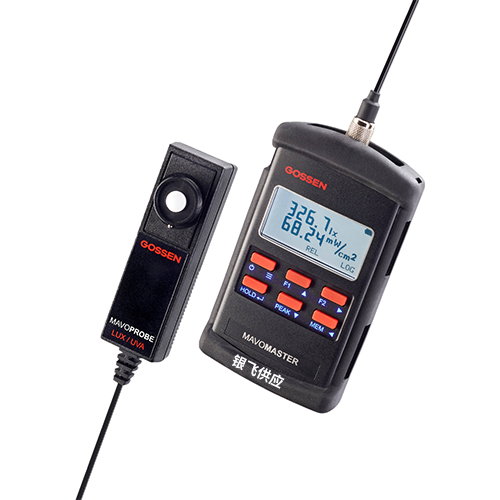

The MAVOLUX LUX/UVA Kit from Gossen combines the MAVOMASTER with a MAVOPROBE LUX/UVA probe for a light measuring kit that measures both illuminance and irradiance and is oriented for use in non-destructive testing and other applications. It also includes a rubber holster, aluminum carrying case, and a USB Cable.



Gossen MAVOMASTER Compact Control and Display Unit

At the center of Gossen's certification light metering system is the MAVOMASTER, a compact, all-in-one control and display unit that generates and stores lighting measurements when used with any MAVOPROBE. The MAVOMASTER interprets MAVOPROBE readings in both absolute and relative values, calculates derivative values, and charts these values over time to provide the user with an in-depth understanding of any lighting environment.



The unit takes one AA battery and has 8GB of internal storage that functions as an external drive when connected to a PC via USB and used with MAVOSOFT software for Microsoft Windows. Only one MAVOPROBE can be connected to a MAVOMASTER at a time.



The MAVOPROBE LUX / UVA from Gossen is a digital measurement attachment for and powered by the MAVOMASTER that provides precision photometrics in a wide variety of residential, commercial, and industrial uses. Its sensitivity range runs from 0.01-199,900 lux, or 0.001-19,990 fc, with an accuracy of ±3%, measuring illuminance in accordance with class B per DIN 5032-7, DIN EN 13032-1 appendix B, and ISO/CIE 19476, and measurement of UV-A irradiance in accordance with DIN EN ISO 3059 and ASTM E2297. Equipped with color correction for a spectral response that is matched to that of the human eye, integrated cosine correction is also included to assure that oblique incident light is evaluated correctly.



The USB 2.0 interface allows MAVOPROBES to directly interface with a computer using an optional USB adapter cable. The measuring probes can also be consolidated using a USB hub and supplied with voltage from a power pack. Extension cords for the MAVOMASTER are also available separately in three different size

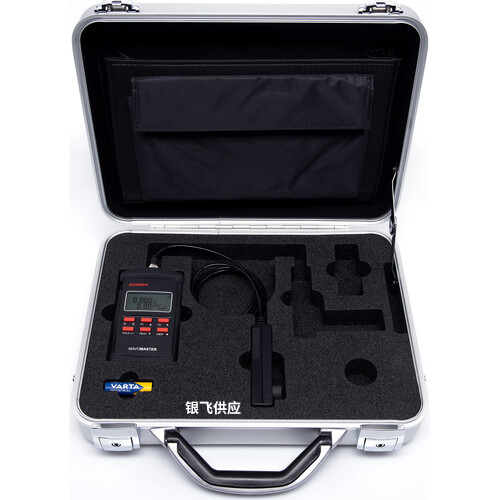

Gossen Aluminum Carrying Case for MAVOMASTER

This Gossen Aluminum Carrying Case and foam insert are designed to transport a MAVOMASTER with a rubber holster and up to two MAVOPROBES.



Gossen Rubber Holster for MAVOMASTER

This Rubber Holster is a protective cover for the Gossen MAVOMASTER that features an integrated tilt stand for tabletop use. The holster's rubber texture provides the user with a unique and secure in-hand feel.



Gossen USB-A 2.0 Male to Micro-USB Male Cable (3.3')

The 3.3' USB-A 2.0 Male to Micro-USB Male Cable from Gossen is designed as an accessory cable for their MAVOMASTER Compact Control and Display Unit.



Illuminance meter kit class B, DIN 5032-7 and irradiance UV-A 365 nm including MAVOMASTER, MAVOPROBE LUX / UVA, rubber holster, aluminum case, MAVOSOFT, USB cable, battery, operating instructions and final test certificate.
