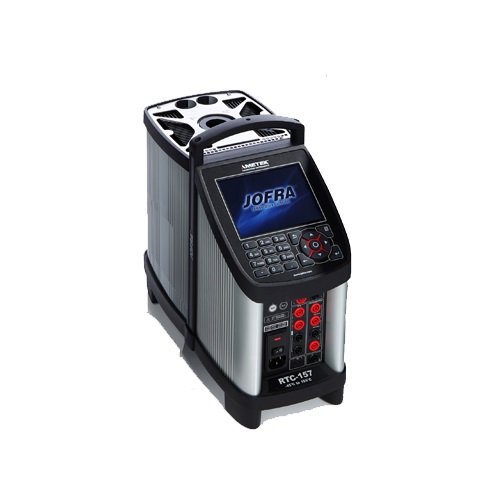

AMETEK Reference Temperature Calibrator Model RTC-157
The AMETEK RTC157 is a high-performance reference temperature calibrator designed for temperature sensor calibration in laboratory and industrial applications. The device is known for its accuracy, stability, and wide temperature range, enabling it to meet stringent calibration needs.
The core technical features of the RTC157 include its Dynamic Load Compensation (DLC) system, which ensures that temperature uniformity inside the casing is maintained even when multiple large sensors or sensors are calibrated at the same time. In addition, RTC157 offers active dual- and three-zone temperature control to further optimize temperature consistency and ensure the accuracy of calibration results.
RTC157 has a wide range of application scenarios and is suitable for calibrating various types of temperature probes, including but not limited to thermocouples, RTDs (Resistance Temperature Detectors), temperature transmitters, etc. In industries such as pharmaceutical, biomedical, food processing, chemical, and energy, the device is essential to ensure the accuracy and reliability of measurement equipment. In the pharmaceutical industry, for example, the monitoring of temperature data plays an indispensable role in product quality assurance, energy savings, and compliance requirements.
The technical advantages of RTC157 are reflected in its high precision and stability, its accuracy can reach ±0.04 °C, the stability is ±0.005 °C, and the display resolution can reach 1/0.1/0.01//0.001 °C. These parameters make the RTC157 an ideal tool for precision temperature calibration. In addition, the device has a wide temperature range from -45°C to 155°C, which is capable of covering the temperature measurement needs of most industrial applications.
The user interface of the RTC157 is designed to be intuitive and easy to operate. The color VGA LCD display provides a clear, easy-to-read display that allows the user to monitor the temperature field status. The device also supports communication with the computer through the USB interface, which is convenient for users to upload and download data, as well as remote control and set up calibration programs.
RTC-157: -45°C bis 155°C
Accuracy (using an external STS reference sensor)
RTC-157 B & C:±0.04 °C
Accuracy (using internal reference sensor)
RTC-157 A, B & C:±0.10 °C
stability
RTC-157:±0.005 °C
Radial uniformity (well-to-well variation)
RTC-157: 0.01 °C
Resolution (user selectable)
All temperatures: 1°, 0.1°, 0.01°, 0.001°
Heating time
RTC-157: -45°C bis 23°C: 7 Minuten, 23°C bis 155°C: 8 Minuten
Cooldown
RTC-157: 155°C bis 100°C: 5 Minuten, 100°C bis 23°C: 10 Minuten, 23°C bis -30°C: 17 Minuten, -30°C bis -45°C: 25 Minuten
Settling time (approx.)
RTC-157: 10 Minuten
Immersion depth
RTC-157: 160 mm
power supply
Voltage: 115V(90-127)/230V(180-254)
Frequency: 50 Hz±5, 60 Hz±5 (US deliveries)
Maximum power consumption: 400 W
Communication Interface:
Serial Data Interface: USB 2.0 device port
LAN: Ethernet MAC 10/100 Base-T (future expansion)
SD card slot (future expansion)
Physical Specifications
Weight and device dimensions (LxWxH):
RTC-157: 10.5kg, 362x171x363mm
Transportation (without carrying case):
RTC-157: 14.8kg, Dimensions: 570x235x440mm
Transportation (with optional carrying case):
RTC-157: 20.5kg, size: 650x380x500mm
2. Active Dual-Zone and Three-Zone Temperature Control: The active dual-zone or three-zone temperature control feature provided by this device further optimizes temperature consistency and ensures temperature uniformity inside the casing bore, which is essential for achieving high-precision calibration.
3. Plug-and-play reference probe configuration: The RTC157 reference probe is equipped with an intelligent chip, which can save calibration data (temperature correction parameters) and other information, so that there is no need to re-download the temperature compensation parameters when replacing the probe, simplifying the calibration process.
4. User-friendly operation interface: RTC157 is equipped with a color VGA LCD screen, which provides multi-information and multi-parameter display at the same time, as well as an intuitive, fast and friendly user interface, which is convenient for the operator to monitor the temperature field status and make calibration settings.
5. Communication capability: The device supports communication with the computer through the USB interface, and has a network interface and SD card slot, which is convenient for data upload and download, as well as remote control and setting of calibration program.
6. Wide temperature range and high precision: The RTC157 has a wide operating temperature range, from -45°C to 155°C, the accuracy can reach ±0.04°C, the stability is ±0.005°C, and the display resolution can reach 1/0.1/0.01//0.001°C, which meets the temperature measurement needs in different industrial applications.
7. Compact design: The design of the RTC157 focuses on portability, light weight, easy to carry, and is suitable for calibration work in the laboratory and in the field.
These technical advantages make the AMETEK RTC157 a high-end choice for precision temperature calibration for demanding scientific and industrial applications.
2. Color VGA LCD screen: Equipped with high-resolution color display, to ensure that users can clearly see the operation interface and calibration data under different lighting conditions, reducing visual fatigue.
3. Touch screen operation: If the RTC157 supports touch screen operation, this will further simplify the operation process, so that users can control the equipment through simple touch actions and improve operation efficiency.
4. Intelligent operation tips: The user interface may be integrated with an intelligent guidance system to provide personalized operation tips and suggestions according to the user's operating habits to reduce learning costs.
5. Multi-language support: In order to adapt to the needs of users in different regions, the user interface of RTC157 may support multi-language display, which is convenient for non-native English users to operate.
6. Remote control and data management: Through the connection with the computer through the USB interface, users can set up remote control and calibration programs, as well as upload and download data, which greatly increases the flexibility of operation.
7. Intuitive Control Panel: The user interface may contain an intuitive control panel that allows users to adjust settings directly on the screen without the need to go through a complex menu structure.
Real-time feedback and monitoring: During the calibration process, the user interface provides real-time feedback to help users monitor the calibration status and ensure the accuracy and repeatability of the calibration.
The design of the DLC system allows the calibrator to calibrate large diameter sensors without sacrificing accuracy, and can be adjusted in real-time during the calibration process in response to changes in sensor load. This dynamic adjustment mechanism ensures that the stability and uniformity of the temperature field are effectively maintained, even under variable calibration conditions.
In this way, AMETEK RTC157's DLC system not only improves the efficiency of simultaneous calibration of multiple sensors, but also ensures that each sensor can be calibrated in a highly consistent temperature environment, which is critical for accurate temperature measurement and control.
Finally, AMETEK RTC157 Reference Temperature Calibrators are an essential tool in the field of precision temperature measurement and control due to their highly specialized technical features that provide reliable calibration services in a variety of complex industrial environments.
The article is from the Temperature Calibrator.
The core technical features of the RTC157 include its Dynamic Load Compensation (DLC) system, which ensures that temperature uniformity inside the casing is maintained even when multiple large sensors or sensors are calibrated at the same time. In addition, RTC157 offers active dual- and three-zone temperature control to further optimize temperature consistency and ensure the accuracy of calibration results.
RTC157 has a wide range of application scenarios and is suitable for calibrating various types of temperature probes, including but not limited to thermocouples, RTDs (Resistance Temperature Detectors), temperature transmitters, etc. In industries such as pharmaceutical, biomedical, food processing, chemical, and energy, the device is essential to ensure the accuracy and reliability of measurement equipment. In the pharmaceutical industry, for example, the monitoring of temperature data plays an indispensable role in product quality assurance, energy savings, and compliance requirements.
The technical advantages of RTC157 are reflected in its high precision and stability, its accuracy can reach ±0.04 °C, the stability is ±0.005 °C, and the display resolution can reach 1/0.1/0.01//0.001 °C. These parameters make the RTC157 an ideal tool for precision temperature calibration. In addition, the device has a wide temperature range from -45°C to 155°C, which is capable of covering the temperature measurement needs of most industrial applications.
The user interface of the RTC157 is designed to be intuitive and easy to operate. The color VGA LCD display provides a clear, easy-to-read display that allows the user to monitor the temperature field status. The device also supports communication with the computer through the USB interface, which is convenient for users to upload and download data, as well as remote control and set up calibration programs.
Key technical parameters:
Temperature rangeRTC-157: -45°C bis 155°C
Accuracy (using an external STS reference sensor)
RTC-157 B & C:±0.04 °C
Accuracy (using internal reference sensor)
RTC-157 A, B & C:±0.10 °C
stability
RTC-157:±0.005 °C
Radial uniformity (well-to-well variation)
RTC-157: 0.01 °C
Resolution (user selectable)
All temperatures: 1°, 0.1°, 0.01°, 0.001°
Heating time
RTC-157: -45°C bis 23°C: 7 Minuten, 23°C bis 155°C: 8 Minuten
Cooldown
RTC-157: 155°C bis 100°C: 5 Minuten, 100°C bis 23°C: 10 Minuten, 23°C bis -30°C: 17 Minuten, -30°C bis -45°C: 25 Minuten
Settling time (approx.)
RTC-157: 10 Minuten
Immersion depth
RTC-157: 160 mm
power supply
Voltage: 115V(90-127)/230V(180-254)
Frequency: 50 Hz±5, 60 Hz±5 (US deliveries)
Maximum power consumption: 400 W
Communication Interface:
Serial Data Interface: USB 2.0 device port
LAN: Ethernet MAC 10/100 Base-T (future expansion)
SD card slot (future expansion)
Physical Specifications
Weight and device dimensions (LxWxH):
RTC-157: 10.5kg, 362x171x363mm
Transportation (without carrying case):
RTC-157: 14.8kg, Dimensions: 570x235x440mm
Transportation (with optional carrying case):
RTC-157: 20.5kg, size: 650x380x500mm
Key technical advantages:
1. Dynamic Load Compensation (DLC) System: The DLC system used in RTC157 ensures that the temperature uniformity inside the sleeve is maintained even when multiple large sensors or multiple sensors are calibrated at the same time. This system optimizes temperature control and improves calibration accuracy by compensating for load variations.2. Active Dual-Zone and Three-Zone Temperature Control: The active dual-zone or three-zone temperature control feature provided by this device further optimizes temperature consistency and ensures temperature uniformity inside the casing bore, which is essential for achieving high-precision calibration.
3. Plug-and-play reference probe configuration: The RTC157 reference probe is equipped with an intelligent chip, which can save calibration data (temperature correction parameters) and other information, so that there is no need to re-download the temperature compensation parameters when replacing the probe, simplifying the calibration process.
4. User-friendly operation interface: RTC157 is equipped with a color VGA LCD screen, which provides multi-information and multi-parameter display at the same time, as well as an intuitive, fast and friendly user interface, which is convenient for the operator to monitor the temperature field status and make calibration settings.
5. Communication capability: The device supports communication with the computer through the USB interface, and has a network interface and SD card slot, which is convenient for data upload and download, as well as remote control and setting of calibration program.
6. Wide temperature range and high precision: The RTC157 has a wide operating temperature range, from -45°C to 155°C, the accuracy can reach ±0.04°C, the stability is ±0.005°C, and the display resolution can reach 1/0.1/0.01//0.001°C, which meets the temperature measurement needs in different industrial applications.
7. Compact design: The design of the RTC157 focuses on portability, light weight, easy to carry, and is suitable for calibration work in the laboratory and in the field.
These technical advantages make the AMETEK RTC157 a high-end choice for precision temperature calibration for demanding scientific and industrial applications.
RTC157 user-friendly features for ease of operation
1. Graphical interface design: RTC157 may adopt a graphical user interface, through intuitive icons and buttons, so that users can easily identify and operate each functional module.2. Color VGA LCD screen: Equipped with high-resolution color display, to ensure that users can clearly see the operation interface and calibration data under different lighting conditions, reducing visual fatigue.
3. Touch screen operation: If the RTC157 supports touch screen operation, this will further simplify the operation process, so that users can control the equipment through simple touch actions and improve operation efficiency.
4. Intelligent operation tips: The user interface may be integrated with an intelligent guidance system to provide personalized operation tips and suggestions according to the user's operating habits to reduce learning costs.
5. Multi-language support: In order to adapt to the needs of users in different regions, the user interface of RTC157 may support multi-language display, which is convenient for non-native English users to operate.
6. Remote control and data management: Through the connection with the computer through the USB interface, users can set up remote control and calibration programs, as well as upload and download data, which greatly increases the flexibility of operation.
7. Intuitive Control Panel: The user interface may contain an intuitive control panel that allows users to adjust settings directly on the screen without the need to go through a complex menu structure.
Real-time feedback and monitoring: During the calibration process, the user interface provides real-time feedback to help users monitor the calibration status and ensure the accuracy and repeatability of the calibration.
How does the AMETEK RTC157 Reference Temperature Calibrator's Dynamic Load Compensation System guarantee temperature uniformity when multiple sensors are calibrated simultaneously?
AMETEK's Dynamic Load Compensation (DLC) system for RTC157 reference temperature calibrators is a key technology that ensures good temperature uniformity inside the sleeve by compensating for the negative impact of heat exchange between the dry-block calibrator and the sensor under test on calibration accuracy. When the sensor is inserted into a dry-body calibrator, the size (diameter and length) of the sensor and the difference between the calibration temperature and the ambient temperature create an axial gradient deviation inside the sleeve. The DLC system guarantees the accuracy of the calibration results by implementing compensation measures inside the casing to maintain temperature uniformity even when multiple large sensors or multiple sensors are calibrated at the same time.The design of the DLC system allows the calibrator to calibrate large diameter sensors without sacrificing accuracy, and can be adjusted in real-time during the calibration process in response to changes in sensor load. This dynamic adjustment mechanism ensures that the stability and uniformity of the temperature field are effectively maintained, even under variable calibration conditions.
In this way, AMETEK RTC157's DLC system not only improves the efficiency of simultaneous calibration of multiple sensors, but also ensures that each sensor can be calibrated in a highly consistent temperature environment, which is critical for accurate temperature measurement and control.
Finally, AMETEK RTC157 Reference Temperature Calibrators are an essential tool in the field of precision temperature measurement and control due to their highly specialized technical features that provide reliable calibration services in a variety of complex industrial environments.
