Bird SCC7 Series Calibration Cart Single Power Sensor

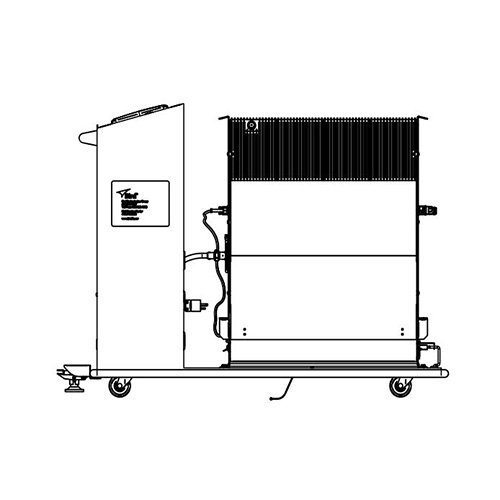

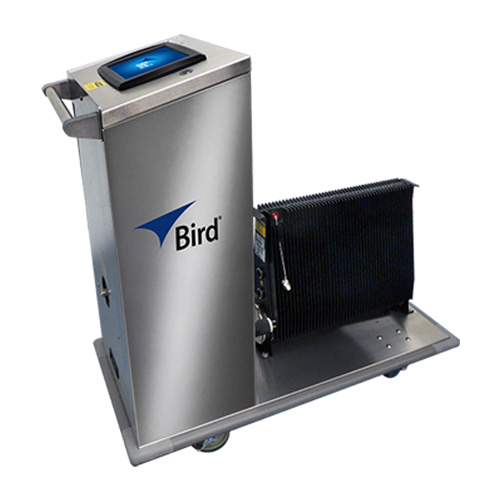

Calibration Carts.Lab Grade Equipment Designed for Immediate, Effortless Use.Bird Calibration Carts provides the ideal solution for the calibration of RF generators. It combines a high accuracy Bird Power Sensor, a user friendly 4421A Multifunction Power Meter, and a low reflection load in an easily transportable mobile package. The system is indispensable for semiconductor fabs with multiple RF generators in various locations.These components are installed on a cart for easy transportation and connected so that the only setup required is connecting AC and RF power. The cart is suitable for use in a clean room environment and is equipped with four swivel casters for maximum maneuverability.
The Calibration Cart is factory configured to the user’s requirements. A selection of Power Sensors is available covering various frequency bands from 250 kHz to 170 MHz. In addition, a number of loads are offered with maximum power ratings from 1kW to 10kW. Contact Bird for customization assistance to ensure that the calibration cart is optimized to your application.Bird has updated the original Calibration Carts (SCC71-series) to now incorporate the latest 4421A-Series Multifunction Power Meter. These new Calibration Carts (SCC72-series) have a larger and more convenient user interface to display Forward Power, Reflected Power and Return Loss at the same time. By maintaining the same selection of Power Sensors and Loads, the measurement capability and high accuracy remains the same.
PRODUCT FEATURES
- Suitable for use in a clean room environment
- Stainless steel cart is designed for easy transportation and effortless use
- Customizable with choice of power sensor and load configuration
- High return loss ensures minimal power measurement error contribution
INCLUDES (See Product Selection Guide on the Datasheet for full details)
- 4421A Multifunction Power Meter to display RF power readings with up to 1% accuracy.
- A 4020, 4027A or 4027F Series Power Sensor for accurate RF measurement.
- An Ultra-Stable SC13 or High Power Load for precision RF power regulation and control.
product specifications
| Product Specification | Description |
|---|---|
| Item Number | SCC7 Series |
| Item Name | Single Sensor Calibration Cart |
| Meter | 4421A Multifunction Power Meter |
| Sensor Options | 4020, 4027A, or 4027F Series (Refer to Datasheet) |
| Load Options | Ultra-Stable Load or High Power Load (Refer to Datasheet) |
| Frequency Range |
- 4020 Sensors: 100 KHz - 1000 MHz - 4027A Sensors: 250 KHz - 65 MHz - 4027F Sensors: 1.8 MHz to 65 MHz |
| Accuracy |
- 4020 Series Sensor: ±3% across power and frequency range - 4027A Series Sensor: ±1% at calibration frequency and power levels, ±2% over remainder of power range and at other than calibration frequencies - 4027F Series Sensor: ±1% across power and frequency range, ±2% over remainder of power range and at other than calibration frequencies |
| Impedance | 50 Ohm |
| Power Requirements | 115/230 VAC, ±10%, 50/60 Hz |
| Connectors | Customer-Specified (Refer to Datasheet) |

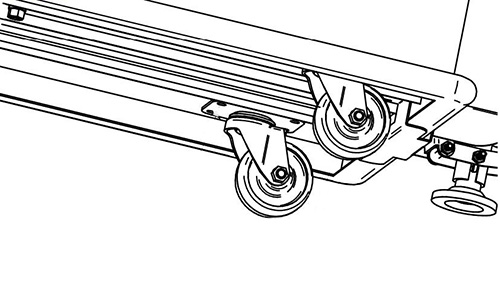

| Construction | Stainless steel cart with (4) locking swivel casters |
| Temperature |
- Operating: 0 to 35 °C (32 to 95 °F) for all models except 10 kW Model - 10 kW Model: 0 to 40 °C (32 to 104 °F) - Storage: -20 to 70 °C (-4 to 158 °F) |
| Humidity | 85% maximum, non-condensing |
| Altitude | Load derated above 5,000 ft (1,524 m) |
| Size (fully assembled) |
- 1 kW & 2.5 kW Models: 42" x 20" x 42" (107 x 51 x 107 cm) - 5 kW & 10 kW Models: 52" x 20" x 42" (132 x 51 x 107 cm) |
| Weight (fully assembled) |
- 1 kW & 2.5 kW Models: 175 lb (80 kg) - 5 kW & 10 kW Models: 250 lb (114 kg) |
| Certifications | CE Compliant |
