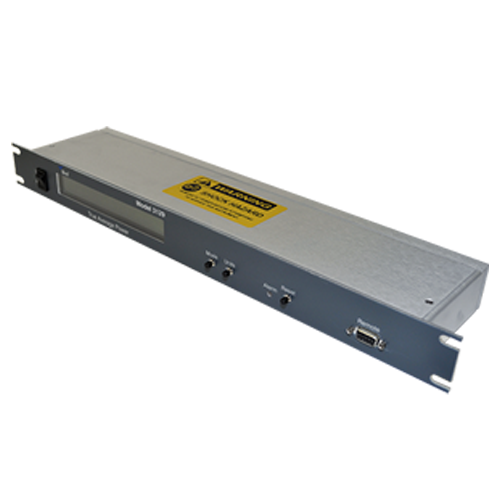

Bird3129A Display Digital RF Power Monitor Display
Bird3129A Display Digital RF Power Monitor Display,the 3129A Digital Display Panel serves as a remote monitoring solution specifically designed to exhibit the operational status of the BPME (Broadcast RF Power Monitor) while also powering its electronic components. Key features and specifications include:
Display Features:
- Equipped with a single-line display split into dual fields, it shows forward power and either reflected power or match measurement readings.
- Incorporates an indicator at the lower right corner of the last digit which blinks to signal communication with the BPME.
- Capable of displaying match measurements in various formats such as VSWR, Rho, Return Loss, and efficiency.
Power and Interface Capabilities:
- Supplies DC power to the BPME itself.
- Displays the BPME's alarm status.
- Offers an electrical interface for discrete outputs from the BPME.
- Provides a serial interface via an RS-232 port for connecting a PC to the BPME; the protocol specifics are RS-232, 9600 baud rate, no parity, 8 data bits, and 1 stop bit with no handshake.
Product Specifications:
- Item Number: 3129A Display
- Item Name: BPME Broadcast Power Monitor Display
- Display Type: 20-character LCD with LED backlight
-
Serial Communication:
- RS-232 Serial Port with a Male DB-9 connector
- Remote Computer Connector with a Female DB-9 connector, sharing the same protocol settings as the Serial Port
Power Alarm and Connectivity:
- Power Alarm - Parallel Port with a Male DB-15 connector
- Power Requirements: Operates on 115/230 VAC at 50/60 Hz with a current draw of 0.6A
AC Power Connectors:
- Domestic: North American Power Cord Standard Type SVT, rated for 300 VAC, 18 AWG, 10 A, 3-conductor including ground
- International: Type H05VV-F, rated for 300 VAC, 1.00 mm^2, 10 A, 3-conductor including ground
Environmental Ratings:
- Operating Temperature: –10 to +50 °C (+14 to 122 °F)
- Storage Temperature: –40 to +80 °C (–40 to +176 °F)
- Humidity: 95% ±5% maximum (non-condensing)
- Altitude: Rated up to 3000 meters (10,000 feet)
Physical Dimensions and Weight:
- Form Factor: 1U, Rack-Mountable (Length x Width x Height)
- Dimensions: 19 inches x 1.75 inches x 5 inches (483 x 44 x 127 mm)
- Weight: Less than 10 pounds (approx. <4.5 kg)
