Bird - Calibration Carts SCC8 Series High Power Calibration Cart
Bird - Calibration Carts SCC8 Series High Power Calibration Cart.Lab Grade Equipment Designed for Immediate, Effortless Use.Bird Calibration Carts provides the ideal solution for the calibration of RF generators. It combines a high accuracy Bird Power Sensor, a user friendly 4421A Multifunction Power Meter, and a low reflection load in an easily transportable mobile package. The system is indispensable for semiconductor fabs with multiple RF generators in various locations.These components are installed on a cart for easy transportation and connected so that the only setup required is connecting AC and RF power. The cart is suitable for use in a clean room environment and is equipped with four swivel casters for maximum maneuverability.Bird - SCC8 Series Calibration Cart, High Power Turnkey Solution for High Power Measurement

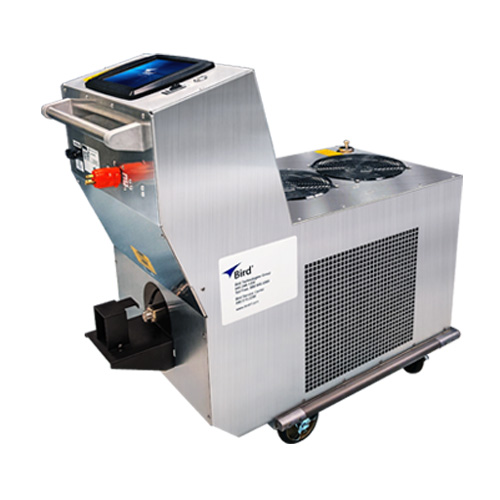

The SCC8 Calibration Cart provides the ideal solution for the calibration of high power RF generators with power measurement up to 25 kW. It combines the high-accuracy Bird 4028 Series Power Sensor, a user-friendly 4421A Multifunction Power Meter, and a Bird Moduload in an easily transportable mobile package.
PRODUCT FEATURES
- Designed for effortless, immediate use
- Suitable for use in a clean room environment
- High return loss ensures minimal power measurement error contribution
- Stainless steel cart with locking wheels is designed for easy transportation and effortless use
INCLUDES (See Product Selection Guide on the Datasheet for full details)
- 4421A Multifunction Power Meter to display RF power readings with up to 1% accuracy
- A 4028 Series Power Sensor for or accurate RF measurement
- A Bird Moduload with low reflection 50 Ohm terminations that can dissipate up to 25 kW

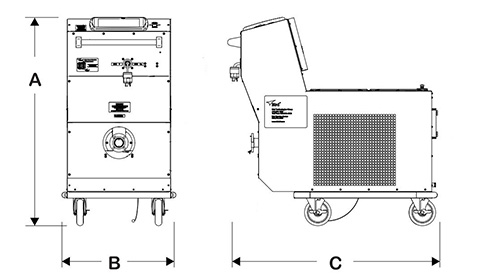

| DIM. A | DIM. B | DIM. C |
| 39” (1001 mm) | 21” (544 mm) |
39” (1001 mm) |
| Product Specification | Description |
|---|---|
| Item Number | SCC8 Series |
| Item Name | High Power Calibration Cart |
| Meter | 4421A Multifunction Power Meter |
| Sensor Options | 4028 Series (Refer to Datasheet) |
| Load Options | 8640B Series, Bird RF Moduload |
| Frequency Range | 250 kHz - 30 MHz, dependent on the sensor model |
| Accuracy |
- ±2% (2s) at calibration frequency and power levels - ±3% (2s) of reading at other power levels and frequencies within sensor range (add 2% to uncertainty outside 25 ± 10 °C) |
| Impedance | Ω50, nominal |
| Power Requirements | 115 or 230 VAC, 50/60 Hz |
| Connectors | Customer-specified (Refer to Datasheet) |
| VSWR |
- Sensor: 1.05 max (32.2 dB return loss) - Load: 1.1 max (26.4 dB return loss) |
| Coolant | 100% water or 35% industrial ethylene glycol / 65% water mix, 9 quarts (8.5 liters), forced air cooling |
| Particle Generation |
- 156 per cfm (0.5 µm) - 29 per cfm (1 µm) - 0 per cfm (3 µm) |
| Construction | Stainless steel cart with (4) locking swivel casters |
| Temperature (Operating) |
- 5 to 30 °C (41 to 86 °F), < 25 kW, 100% water, (de-rate sensor accuracy outside 25 ± 10 °C) - 5 to 35 °C (41 to 95 °F), < 20 kW, 100% water, (de-rate sensor accuracy outside 25 ± 10 °C) - 0 to 25 °C (32 to 77 °F), < 25 kW, 35% ethylene glycol/65% water - 0 to 35 °C (32 to 95 °F), < 20 kW, 35% ethylene glycol/65% water |
| Temperature (Storage) |
- 5 to 50 °C (41 to 122 °F), 100% water - -20 to 50 °C (-4 to 122 °F), 35% ethylene glycol/65% water |
| Humidity | 85% max (non-condensing) |
| Altitude | Load de-rated above 5,000 ft (1,524 m) |
| Size | 39.5" x 21.5" x 39.5" (100.3 x 54.6 x 100.3 cm) |
| Weight | 240 lb (109 kg) |
| Certifications | CE Compliant |
