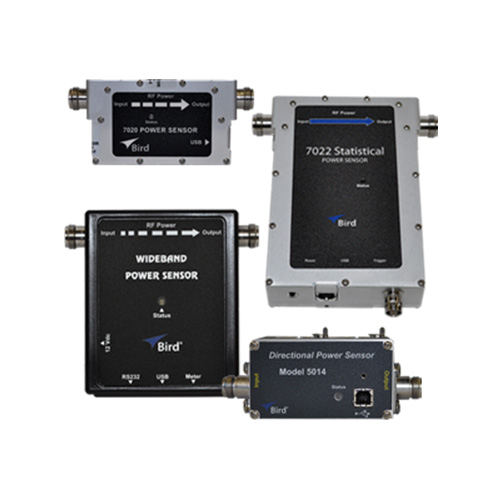

Bird 5016D 60W Peak Wideband RF Power Sensor
The Bird 5016D Wideband RF Power Sensor is a high-precision instrument designed to accurately measure true average power, peak power, and duty cycle across a broad range from 25mW to 25W average and up to a peak of 60W. This advanced sensor does not necessitate field calibration; instead, it requires annual calibration, and its accuracy is traceable to the National Institute of Standards and Technology (NIST).Power Measurement: Measures both average and peak power directly with extraordinary accuracy, using these measurements to derive critical parameters including Voltage Standing Wave Ratio (VSWR), Return Loss, Reflection Coefficient, Crest Factor, Average Burst Power, and Complementary Cumulative Distribution Function (CCDF).Important Note for Calibration and Performance: (*) Please note that, according to the product specifications, when operating at temperatures above 35°C or below 15°C, an additional 3.0% must be added to all stated accuracies. This applies to the entire "Accuracy-Peak Envelope Power" specification.Set-Up Information: This sensor is part of the WPS Series, which offers a straightforward wideband power sensor setup process.
Accessories Included:
- User Manual
- VPM3 - Virtual Power Meter Software and its corresponding Manual
- A 10-foot USB Cable
Bird 5016D Wideband RF Power Sensor product specifications:
| Specifications | Details |
|---|---|
| Item No | Bird 5016D |
| Item Name | Wideband RF Power Sensor |
| Frequency Range | 350 MHz to 4.0 GHz |
| Power Range |
- Average Power: 25 mW to 25 Watts - Peak Power: 60 Watts |
| Insertion VSWR |
<1.05 from 0.35 to 2.5 GHz <1.10 from 2.5 to 4 GHz |
| Insertion Loss |
<0.05 dB from 0.35 to 1.0 GHz <0.1 dB from 1 to 4 GHz |
| Directivity |
30 dB up to 3.0 GHz 28 dB from 3.0 to 4.0 GHz |
| Average Power |
- Range: 25 mW to 25 Watts Avg, 60 Watts Peak - Accuracy: ± 4% of reading, + 0.008 W - Min. Forward Power for Reflected Measurement: 0.1W - Return Loss: 0.0 to 23 dB - VSWR: 1.15 to 99.9 |
| Burst Average Power |
- Range: 0.7 W to 25 Watts Avg - Burst Width: 1 μs to 5 ms - Repetition Rate: 5 Hz, Min - Duty Cycle (D): 0.002 to 1.0 - Accuracy: ± 6% of reading, + 0.008 Watts |
| Peak Envelope Power |
- Range: 0.7 to 60 W - Accuracy (varies by burst width) |
| Crest Factor |
- Measurement Range: 25 mW to 25 Watts - Accuracy: Linear sum of Peak and Average Power Accuracies |
| CCDF (Complementary Cumulative Distribution Function) |
- Measurement Range: 0.1 to 100% - Threshold Measurement Range: 0.7 to 25 W - Measurement Uncertainty: ± 2% - Level Set Accuracy: As Peak Envelope Power Accuracy + 2.0% |
| Connectors | N Female (both ends) |
| Power Supply |
- USB Port: Low-power USB load - DC Input Connector: 7-18 VDC at less than 0.1A |
| Impedance | Ω50 (nominal) |
| Interfaces |
- DPM Interface: DB9 proprietary interface - PC Interface (1): RS-232, 9600 Baud, no parity, 8 data bits, 1 stop bit, DB9 - PC Interface (2): USB 2.0 Type B |
| Weight | Max. 1.2 lbs. |
| Dimensions |
4.8 in x 4.6 in x 1.3 in (122 mm x 117 mm x 33 mm) |
| Data Logging | Requires 5000-NG or VPM3 |
| Operating Temperature | -10 to +50 °C (+14 to +122 °F) |
| Storage Temperature | -40 to +80 °C (-40 °F to +176 °F) |
| Mechanical Shock and Vibration | IAW MIL-PRF-2880F Class 3 |
| CE | EMC EN 61326-1-2006 |
