The 5012D RF Power Sensor never requires field calibration, only requires calibration once per year and is traceable to National Institute of Standards and Technology (NIST). The WPS measures True Average Power, Peak Power, and Duty Cycle directly with exceptional accuracy and uses these precise measurements to calculate a wide range of other important factors, such as VSWR, Return Loss, Reflection Coefficient, Crest Factor, Average Burst Power, and CCDF.Included Accessories: User Manual, VPM3 - Virtual Power Meter Software and Manual, 10 ft. USB Cable.Features and Specifications: The Bird 5012D boasts a comprehensive frequency range from 350 MHz to 4.0 GHz, which caters to the diverse needs of today’s complex RF environments. It provides an extensive power measurement capability, ranging from as low as 150 milliwatts (mW) to a peak power of 400 watts (W), ensuring accurate readings over a broad dynamic scale.In terms of insertion voltage standing wave ratio (VSWR), the sensor exhibits outstanding performance with values of less than 1.05 from 0.35 to 2.5 GHz and less than 1.10 from 2.5 to 4 GHz, guaranteeing minimal signal loss during measurement. Moreover, the insertion loss is maintained at an impressively low level, being under 0.05 dB from 0.35 to 1.0 GHz and under 0.1 dB from 1 to 4 GHz.
Note:The astrisk (*) displayed in the Product Specifications indicates (for temperatures above 35°C or below 15°C add 3.0% to stated accuracies) - this includes the entire "Accuracy-Peak Envelope Power" spec as well.
From simple true-average power measurement applications, to the measurement of the complex waveforms associated with modern communications systems, where peak power or burst power measurement are essential. All Bird RF Sensors are rugged, highly accurate, and provide high value power measurement solutions.

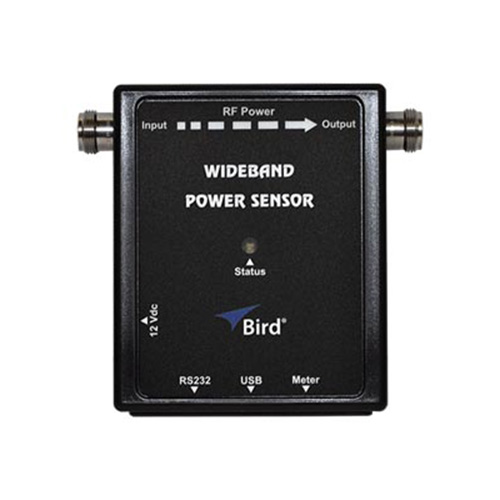

The product specification table for Bird 5012D Wideband RF Power Sensor :

Specification	Details
Item No	5012D
Item Name	Wideband RF Power Sensor
Frequency Range	350 MHz to 4.0 GHz
Power Range	150 mW to 150 Watts Avg., 400 Watts Peak
Insertion VSWR	- <1.05 from 0.35 to 2.5 GHz - <1.10 from 2.5 to 4 GHz
Insertion Loss	- <0.05 dB from 0.35 to 1.0 GHz - <0.1 dB from 1 to 4 GHz
Directivity	- 30 dB up to 3.0 GHz - 28 dB from 3.0 to 4.0 GHz
Average Power	- Average Forward Power Range: 150 mW - 150 Watts Avg, 400 Watts Peak - Accuracy, Average Forward Power: ± 4% of reading, + 0.05 W - Minimum Forward Power for Reflected Measurement: 0.5W - Return Loss: 0.0 to 23 dB - VSWR: 1.15 to 99.9
Burst Average Power	- Burst Average Forward Power Range: 4 W - 150 Watts Avg - Burst Width: 1 μs to 5 ms - Repetition Rate: 5 Hz, Min - Duty Cycle (D): 0.002 to 1.0 - Accuracy, Burst Average Power: ± 6% of reading, + 0.05 Watts
Peak Envelope Power	- Range: 4.0 - 400 W - Accuracy: - burst width > 200 μs: ± 7% of reading, + 0.20 W - 1 μs < burst width < 200 μs: ± 10% of reading, + 0.40 W - 0.5 μs < burst width < 1 μs: ± 15% of reading, + 0.40 W - burst width < 0.5 μs: ± 20% of reading, + 0.40 W
Crest Factor	- Crest Factor Measurement Range: 150mW - 150 Watts - Accuracy: Linear Sum of Peak and Average Power Accuracies
Complementary Cumulative Distribution Function (CCDF)	- Measurement Range: 0.1 to 100% - Threshold Measurement Range: 4.0 - 400 W - Measurement Uncertainty: ± 2% - Level Set Accuracy: As Peak Envelope Power Accuracy + 2.0%
Connectors	N Female (Both)
Power Supply	- USB Port: less than one low-power - USB load DC Input Connector: 7-18 VDC at less than 0.1A
Impedance	Ω50 (nominal)
Interfaces	- DPM Interface: DB9 proprietary interface - PC Interface (1): RS-232, 9600 Baud, no parity, 8 data bits, 1 stop bit, DB9 - PC Interface (2): USB 2.0 Type B
Weight	1.2 lbs., (.54 kg) max.
Dimensions	4.8 in x 4.6 in x 1.3 in (122 mm x 117 mm x 33 mm)
Data Logging	Requires 5000-XT or VPM3
Operating Temperature	-10 °C to +50 °C (+14 °F to +122 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Mechanical Shock and Vibration	IAW MIL-PRF-2880F Class 3
CE	EMC EN 61326-1-2006

The Bird 5012D Wideband RF Power Sensor represents a cutting-edge solution that combines meticulous engineering with user-friendly functionality. Its ability to handle a wide array of power levels and frequencies, coupled with robust performance characteristics and accurate measurement capabilities, makes it a trusted and indispensable component in any RF test bench or monitoring system. By choosing the Bird 5012D, professionals can ensure reliable, consistent, and efficient RF power measurements in demanding environments.
