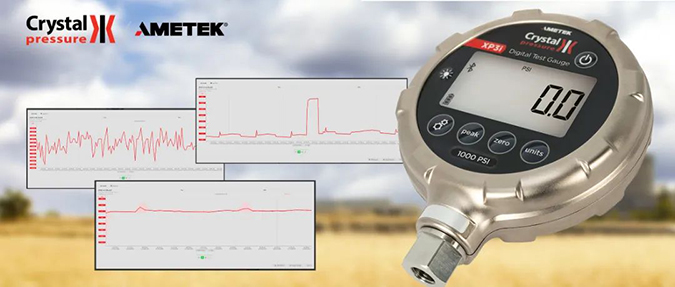

XP3i Digital Pressure Gauge
Digital Pressure Gauge, Digital Test Gauge XP3i
High Accuracy Digital Test Gauge - Ultra Rugged
Ultra rugged, intrinsically safe, digital test gauge with “0.05% of reading”, “0.02% of full scale”, or “0.05% of full scale” accuracy levels. Carry a single XP3i digital pressure gauge to cover a wide pressure range and replace multiple “of scale” gauges. If a recording of a pressure test is required, add the DataLoggerXP upgrade to open a wide range of features and functions.
Now with USB-C and Bluetooth connections, a free mobile app, and a cloud software service, you can share stored files with any colleague with internet access.
• Ranges up to 10 000 psi
• Marine grade enclosure resists corrosion (MIL-STD 810)
• Accuracy not affected from -20 to 50°C (increased range from the XP2i)
• Replaces 5 or more test gauges
• Fast pressure safety valve (PSV) mode
• Easy to use – No Menu. No Manual? No Problem!
• Includes calibration reminders and alerts - See our digital pressure gauge application note for details
With a Bluetooth connection, you can:
• Connect in a hazardous environment while retaining intrinsically safe ratings
• Mount the XP3i in hard-to-reach locations and connect from a safe area
• Avoid inclement weather by connecting to the XP3i from a climate-controlled office or vehicle
• Forgot your communication cable? Are drivers not installed? Is the cable damaged? All of these problems go away with a Bluetooth connection
With the optional DataLoggerXP upgrade
• Record over 200 million data points
• Over an entire year of continuous recording time
• Start and stop logging runs from your phone or the gauge
• Download data using a USB connection and a computer or through Bluetooth and the mobile app
With the new CrystalControlWeb cloud software (Free)
• Upload stored data from your computer
• Upload stored data from a file – wirelessly downloaded using your app
• Share stored data with anybody in your organization
• Grant user access to your organization through a license key
• Graph your stored data
• Customized graph details like line color, axis minimum and maximums, and run and test names
• Configure the settings on your XP3i
• Download data to spreadsheets or secure, tamper-proof pdf files
If you would like to communicate, please contact our 银飞 staff.
Options-
AMETEKCal Discounted three year calibration program.
-DD Dual Line Display – Adds a second line to the display which can be set to indicate peaks, average, leak rate, or data logging details (if upgraded to -DL). Great for relief valve or leak testing.
-DL DataLoggerXP – Allows you to store and record over 200 million measurements at a time. Our CrystalControlWeb service stores records in the cloud and allow you to create, share, and export reports. The XP3i, once authorized, performs all of the actual data collection.
-S2 0.02 % of full scale accuracy. See Data Sheets for complete specifications.
-S5 0.05 % of full scale accuracy. See Data Sheets for complete specifications.
-BSP G ¼ B Parallel Pressure Fitting
-M20 M20 x 1.5 Male CPF Adapter
