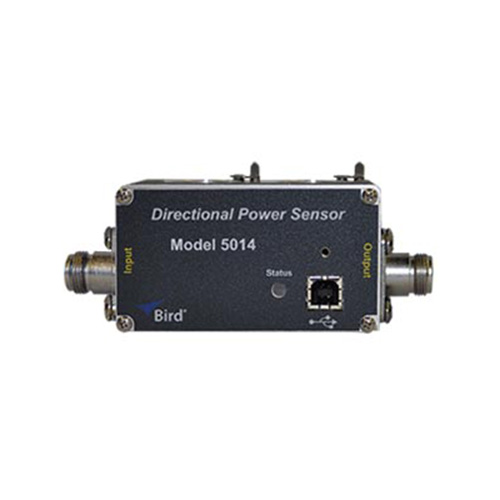

Bird 5014 Directional RF Power Sensor - USB Connector
The Bird 5014 Directional RF Power Sensor - USB Connector.From simple true-average power measurement applications, to the measurement of the complex waveforms associated with modern communications systems, where peak power or burst power measurement are essential. All Bird RF Sensors are rugged, highly accurate, and provide high value power measurement solutions.Bird 5014 RF Power Sensor is the most flexible RF sensor on the market today. With this Dual-Socket, Thruline® sensor, you may select from a wide range of Bird Elements to tailor the unit to your needs over a wide range of frequencies and power levels. Also, select field changeable input and output RF connectors from dozens of types including (N, BNC, HN, 7/16 DIN). Operate your sensor our Bird 5000-NG Digital Power Meter or via a computer with our windows compatible VPM3 Software and RF Meter App.The DPS measures True Average Power and/or Peak Power with exceptional accuracy that is traceable to National Institute of Standards and Technology (NIST). It is also a highly economical RF power measurement tool offering reliable results for hundreds, not thousands of dollars.
Applications:
- Measurements: Standard elements; true average forward power, true average reflected power, Peak detecting elements; peak forward power
- Calculations: VSWR, Return loss, Reflection Coefficient
Product Specifications:
| Specification | Details |
|---|---|
| Item Number | 5014 |
| Product Name | Directional RF Power Sensor |
| Frequency Range | Dependent on Elements, 2 MHz to 1000 MHz |
| Power Range | Dependent on Elements, Full Scale from 125 mW to 1 kW |
| Impedance | 50 Ohms |
| Peak-to-Average Ratio (PAPR) | 10 dB (maximum), with DPM Elements |
| Accuracy - True Average Power |
± 5% of reading at 15 to 35°C ± 7% of reading at -10 to 50°C |
| Accuracy - Peak Power | ± 8% of full scale |
| Insertion Voltage Standing Wave Ratio (VSWR) | 1.05:1 from 0.45 to 1000 MHz (with N-type connectors) |
| Directivity | 30 dB (typical value); exact value depends on selected elements |
| Pulse Parameters |
- Pulse Width: • 800 µs (minimum) at 100 MHz • 1.5 µs (minimum) at 26 to 99 MHz • 15 µs (minimum) at 2 to 25 MHz - Repetition Rate Peak: 15 pps (minimum) - Duty Cycle: 1 x 10^-4 (minimum) |
| Dynamic Range | 16 dB |
| Stability Time | < 2.5 seconds |
| Power Supply | Through cable connection from host instrument |
| Interface | USB 1.1, Type B Connector |
| Connector Type | N-Type (female), typically provided |
| Temperature Range |
Operating: -10 to +50°C (14 to 122°F) Storage: -40 to +75°C (-40° to 167°F) |
| Humidity | 95% maximum (non-condensing) |

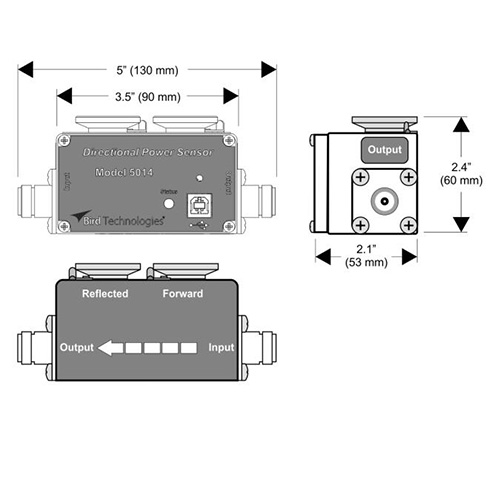

| Dimensions |
2.3 inches x 2.1 inches x 3.5 inches (H x W x D) (58 x 53 x 89 millimeters), excluding connectors |
| Weight | 1.12 pounds (0.51 kilograms) |
