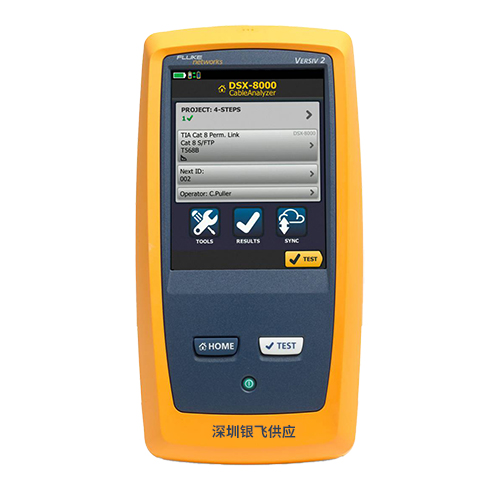

DSX-5000 DSX-8000 CableAnalyzer Series Copper Cable Certifiers

Date:2024-05-31      Category:Others

DSX-5000: Full 2-way Autotest of Category 5e or 6/Class D or E: 9 seconds. Full 2-way Autotest of Category 6A/Class EA: 10 seconds
DSX2-5000-NW Same configuration as the DSX2-5000 with integrated Wi-Fi disabled. Learn more about Fluke Premium Care – Gold

Unique Features:

Versiv enables users to accomplish more than ever before with a cable tester, by accelerating every step of the testing process
LinkWare Live cloud service lets the Project Manager remotely set up the testers, monitor job progress and even location from any smart device
ProjX™ management system eases tasks from initial set-up of a job to system acceptance. It eliminates redundant steps, and ensures that all tests are completed correctly the first time, and every time
Taptive™ user interface puts advanced data analysis and easy set-up and operation at the fingertips of technicians of all skill levels
LinkWare PC management software provides unmatched analysis of test results and professional test reports
The DSX reduces the time required to fix cabling faults with dedicated diagnostics, a simple test that locates the problem


Overview

The DSX CableAnalyzer Series copper cable certifiers enables testing and certification of twisted pair cabling for up to 40 Gigabit Ethernet deployments and will handle any cabling system whether it is a Cat 5e, 6, 6A, 8 or Class FA and I/II. Certifying a cable is one part of a process that starts with system design and ends with system acceptance. The faster that process goes, the more profitable you’ll be. Unfortunately, there are a lot of things that slow the process down – setting up the tester incorrectly, testing to the wrong limits, waiting for skilled technicians to analyze and troubleshoot failures, misinterpretation of results, and producing test reports that customers cannot understand.

As part of the Versiv cabling certification product family, the DSX CableAnalyzer Series copper cable certifiers provides accurate, error-free certification. In the installation business there are multiple teams, varying media types and multiple testing requirements. The difference between being profitable or not is just a few percentage points. The DSX certifies copper cabling, complies with all standards including Level VI/2G accuracy, making jobs easier to manage, and getting to system acceptance faster. It’s not just for the expert technicians and Project Managers. Individuals of various skill levels can improve the set-up, operation, test reporting, and simultaneously manage diverse projects.
DSX2-5000-NW
GLD-DSX-5000：1 year of Gold Support for DSX2-5000, DSX2-5000-NW, DSX-5000-W or DSX-5000
GLD3-DSX-5000：3 years of Gold Support for DSX2-5000, DSX2-5000-NW, DSX-5000-W or DSX-5000

Standards:
Compliant with ANSI/TIA-1152-A Level 2G and proposed standard IEC 61935-1 Ed. 5 Level VI field tester accuracy requirements to 2000 MHz
Supports the complete suite of Resistance Unbalance standards needed for Power over Ethernet (PoE) –IEEE 802.3bt, ANSI/TIA/EIA-568, ISO/IEC 11801 series documents
TCL and ELTCTL measurements compliant to IEC 61935-1-1 (Published Sep 2019 )
Screen continuity along path of cabling


Specifications

Cable Types：
Shielded and unshielded pair LAN cabling：TIA Category 3, 4, 5, 5e, 6, 6A, 8: 100 Ω ISO/IEC Class C, D, E, EA, F, FA and I/II: 100 Ω and 120 Ω
Standard Link Interface Adapters：
Permanent link adapters：Plug type: shielded RJ45；Optional Plug type: Tera
Channel Adapters：Jack type: shielded RJ45；Optional Jack type: Tera, GG45

TIA：Category 3, 4, 5, 5e, 6, 6A, 8 per ANSI/TIA-568.2-D
ISO/IEC：Class C and D, E, EA, F, FA and I/II certification per ISO/IEC
Maximum frequency：DSX-8000: 2000 MHz;DSX-5000: 1000 MHz

Supported test parameters (The selected test standard determines the test parameters and the frequency range of the tests)：Wire Map, Length, Propagation Delay, Delay Skew, DC Loop Resistance, Pair-to-Pair Resistance Unbalance, Pair Resistance Unbalance, Insertion Loss (Attenuation), Return Loss (RL), Common Mode Return loss (CMRL), Near End Crosstalk (NEXT), Far End Crosstalk (FEXT), Attenuation-to-crosstalk Ratio (ACR-N), ACR-F (ELFEXT), Power Sum ACR-F (ELFEXT), Power Sum NEXT, Power Sum ACR-N, Power Sum Alien NEXT (PS ANEXT), Power Sum Alien Attenuation NEXT Ratio Far End (PS AACR-F), Common Mode to Differential Mode NEXT (CDNEXT),Transverse Conversion Loss (TCL), Equal Level Transverse Conversion Transfer Loss (ELTCTL)

Input protection：Protected against continuous telco voltages and 100 mA over-current. Occasional ISDN over-voltages will not cause damage
Display：5.7 in LCD display with a projected capacitance touchscreen
Case：High impact plastic with shock absorbing overmold
Dimensions：Main Versiv unit with DSX module and battery installed: 2.625 in x 5.25 in x 11.0 in (6.67 cm x 13.33 cm x 27.94 cm)
Weight：Main Versiv unit with DSX module and battery installed: 3 lbs, 5oz (1.28 kg)
Main unit and remote:Lithium ion battery pack, 7.2 V
Typical battery life:8 hours
Charge time*：Tester off: 4 hours to charge from 10 % capacity to 90 % capacity.
Languages supported：English, French, German, Italian, Japanese, Portuguese, Spanish, Chinese, Korean, Russian, Trad Chinese, Czech, Polish, Swedish, Hungarian
Calibration：Service center calibration period is 1 year
Integrated Wi-Fi：Meets IEEE 802.11 a/b/g/n; dual band (2.4 GHz and 5 GHz)

Operating Temperature：32°F to 113°F (0°C to 45°C)
Storage Temperature：-14°F to +140°F (-10°C to +60°C)
Operating relative humidity：0% to 90 %, 32°F to 95 °F (0°C to 35°C)；0 % to 70 %, 95°F to 113 °F (35°C to 45°C)
Vibration：Random, 2 g, 5 Hz-500 Hz
Shock：1 m drop test with and without module and adapter
Safety：CSA 22.2 No. 61010, IEC 61010-1 3rd Edition
Operating altitude：13,123 ft (4,000 m)；10,500 ft (3,200 m) with ac adapter
EMC：EN 61326-1

Length of Twisted Pair Cabling1


Length of Twisted Pair Cabling1 Without Remote or in DSX-5000 Long Communication Mode With Remote
Range 800 m (2600 ft) 150 m (490 ft)
Resolution 0.1 m or 1 ft 0.1 m or 1 ft
Accuracy ± (0.3 m + 2 %); 0 m to 150 m
± (0.3 m + 4 %); 150 m to 800 m		 ± (0.3 m + 2 %)

Delay Skew
Range：0 ns to 100 ns
Resolution：1 ns
Accuracy：± 10 ns

DC Loop Resistance Test
Range：0 Ω to 540 Ω
Resolution：0.1 Ω
Accuracy：± (1 Ω + 1 %)
Overload recovery time：Less than 10 minutes to rated accuracy following an overvoltage. Referencing is required after repeated or prolonged overvoltage.
