HDV700 Series High-Performance Videoscope
The HDV700 is a versatile and lightweight professional videoscope that is designed for inspections in locations that are difficult or unsafe to access. With one or more of the eight waterproof (IP67) camera probes*, you can use the HDV700 for condition monitoring in manufacturing, HVAC/R, plumbing, building, and automotive applications. A range of small diameter and articulating camera probes are available to give you clear visibility of components from the 5-inch color touchscreen display. Easily maneuver the narrow probes into small openings without disassembling equipment. The HDV700 also features multiple data recording options so you can easily create reports at the job site by transferring images and videos to your laptop.
*Sold separately, or as a kit (see ordering section on next page)
HDV700 Series Features
●View clear, bright images with a wide field-of-view onthe 5-inch color capacitive touchscreen
●Capture both still images and videos
●Gain access to difficult-to-see components withoutdisassembling equipment
●Simultaneously view live camera image and a savedimage side by side on the display to easily comparechanges since last inspection
●Record voice annotations and photo notes foradvanced reports
●Efficiently manage your inspection data using theSession and Tag feature
●Make it easy for a second person to inspect with youby connecting the display to a monitor using the HDMIvideo output
●Inspect comfortably using the display stand andtripod mount
●Immerse the IP67-rated camera probes in water ata depth up to 1 m (3.2 ft) for 30 minutes max
●Each kit is complete with a HDV700 Videoscope Screen, camera probe (model dependent on kit ordered), 32 GB Micro SD card, USB-A to USB-C cable, HDMI Type A to Type D cable, Li-ion rechargeable battery (built-in), and universal adapter (with US, UK, EU, and AUS plugs)
●Simultaneously view live camera image and a savedimage side by side on the display to easily comparechanges since last inspection
●Record voice annotations and photo notes foradvanced reports
●Efficiently manage your inspection data using theSession and Tag feature
●Make it easy for a second person to inspect with youby connecting the display to a monitor using the HDMIvideo output
●Inspect comfortably using the display stand andtripod mount
●Immerse the IP67-rated camera probes in water ata depth up to 1 m (3.2 ft) for 30 minutes max
●Each kit is complete with a HDV700 Videoscope Screen, camera probe (model dependent on kit ordered), 32 GB Micro SD card, USB-A to USB-C cable, HDMI Type A to Type D cable, Li-ion rechargeable battery (built-in), and universal adapter (with US, UK, EU, and AUS plugs)

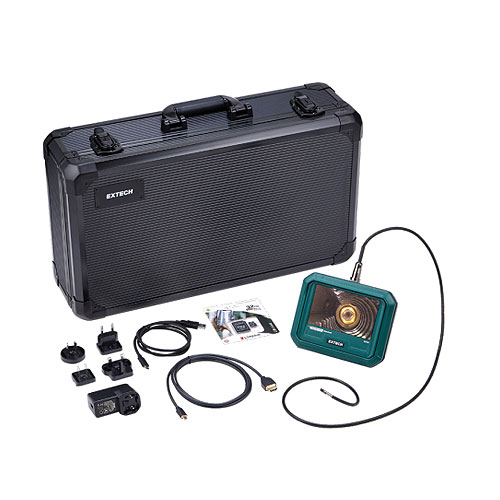

HDV710 Kit

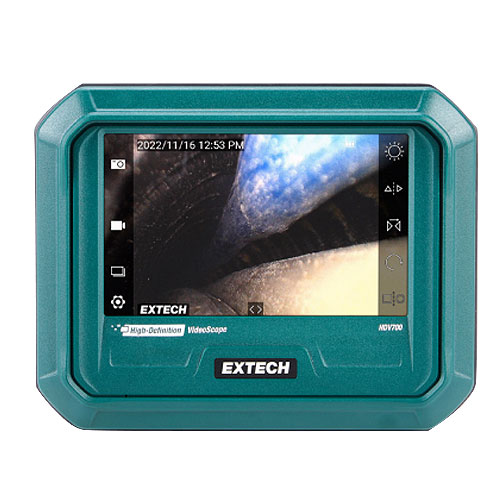

HDV700 Videoscope Screen (No Camera Probes)
Display (Resolution)；5” color TFT (800 × 480)
Touchscreen (Backlight)；Capacitive touch (500 nits)
Image/Video Format；JPEG (1280 × 720)/MP4 (1280 × 720)
Voice and Text Annotation；Yes
Video Output；Micro HDMI
Data Communication Interface；USB-C, Micro SD
Storage Capacity；Up to 64 GB micro SD (32 GB microSD included)
Battery Type (Life)；Rechargeable 3.6 V Li-ion (5 hours)
Tripod Mount；UNC ¼”-20
Power；5 V, 3 A DC with universal adapters (US, EU, UK, AU)
Drop Test；1 m (3.28 ft）
IP Rating；Videoscope Screen: IP54Camera probe: IP67
Dimensions [W × H × D]；161.9 mm × 127.9 mm × 30 mm(6.38 in × 5.04 in × 1.18 in)
Weight；705 g (1.55 lb)
HDV700 Series Camera Probes
General Purpose：
HDV7C-55-HD-1；Diameter：5.5mm；Length：1m；Probe Flexibility：Semi-rigid；Resolution：1280 × 720；Depth Of Field：10 mm to infinity；Field of View：90˚；Direction of View：Forward
HDV7C-55-3：Diameter：5.5mm；Length：3m；Probe Flexibility：Semi-rigid；Resolution：640 × 480；Depth Of Field：10 mm to infinity；Field of View：90˚；Direction of View：Forward
Dual View Inspection：
HDV7C-49-DUAL-1：Diameter：4.9mm；Length：1m；Probe Flexibility：Semi-rigid；Resolution：1280 × 720；Depth Of Field：10 mm to infinity；Field of View：90˚；Direction of View：Forward & Side
2-Way 180˚Articulation Camera：
HDV7C-A2-39-HD-1：Diameter：3.9mm；Length：1m；Probe Flexibility：Flexible, Stainless Steel Mesh；Resolution：1280 × 720；Depth Of Field：10 mm to infinity；Field of View：90˚；Direction of View：Forward
HDV7C-A2-45-15：Diameter：4.9mm；Length：1.5m；Probe Flexibility：Flexible, Stainless Steel Mesh；Resolution：640 × 480；Depth Of Field：10 mm to infinity；Field of View：90˚；Direction of View：Forward
4-Way 110˚Articulation Camera：
HDV7C-A4-60-1：Diameter：6mm；Length：1m；Probe Flexibility：Flexible, Stainless Steel Mesh；Resolution：640 × 480；Depth Of Field：10 mm to infinity；Field of View：87.1˚；Direction of View：Forward
HDV7C-A4-60-3：Diameter：6mm；Length：3m；Probe Flexibility：Flexible, Stainless Steel Mesh；Resolution：640 × 480；Depth Of Field：10 mm to infinity；Field of View：87.1˚；Direction of View：Forward
Pipe Inspection：
HDV7C-P28-30：Diameter：28mm；Length：30m；Probe Flexibility：Fiberglass；Resolution：640 × 480；Depth Of Field：10 mm to infinity；Field of View：150˚；Direction of View：Forward
Ordering
Complete Kits
HDV710 ......................Videoscope Kit with Semi-Rigid HD 5.5 mm × 1 m Camera Probe
HDV720 ......................Videoscope Kit with Semi-Rigid Dual HD 4.9 mm × 1 m Camera Probe
HDV730 ......................Videoscope Kit with HD Flexible 2-Way Articulating 3.9 mm × 1 m Camera Probe
HDV740 ......................Videoscope Kit with Flexible 4-Way Articulating 6 mm × 1 m Camera Probe
HDV750 ......................Videoscope Plumbing Kit with 28 mm Camera, 30 m Plumbing Spool and Probe Length Locator
Screen and Camera Probes (sold separately)
HDV700 ......................HDV700 Videoscope Screen (No Probes)
HDV7C-55-HD-1.........HD 5.5 mm × 1 m Camera Probe
HDV7C-55-3 ...............5.5 mm × 3 m Camera Probe
HDV7C-49-DUAL-1.....Dual HD 4.9 mm × 1 m Camera Probe
HDV7C-A2-39-HD-1 ...HD 2-Way Articulating 3.9 mm × 1 m Camera Probe
HDV7C-A2-45-15........2-Way Articulating 4.5 mm × 1.5 m Camera Probe
HDV7C-A4-60-1..........4-Way Articulating 6 mm × 1 m Camera Probe
HDV7C-A4-60-3..........4-Way Articulating 6 mm × 3 m Camera Probe
HDV7C-P28-30...........28 mm Camera Probe with 30 m Plumbing Spool
