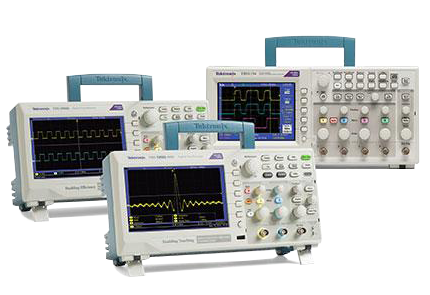

泰克科技TBS1000系列数字示波器
TBS1000B从容应对日常测试挑战,却不会造成预算压力。 TBS1000B 型号经济实惠,可提供出色的信号可视性、测量精度和分析功能。 设计确保可靠性 分析测量时间关系 使用内置快速傅立叶变换 (FFT) 频谱分析 特点 7 英寸宽视角 WVGA 显示 34 种自动测量 FFT 分析、波形数学计算、光标、双频率计数器等 极限测试和数据记录 TBS1000B-EDU培育未来领先工程师。 通过提供适用于教育工作者的特殊功能,TBS1000B-EDU 可帮助讲师培养未来的工程师。 特点 课件生态环境可让......
产品描述

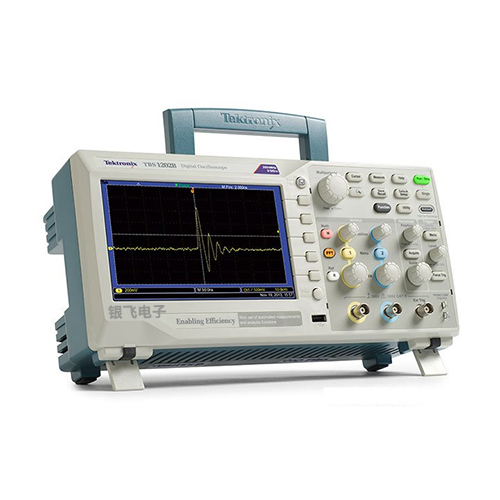

TBS1000B从容应对日常测试挑战,却不会造成预算压力。
设计确保可靠性 分析测量时间关系
使用内置快速傅立叶变换 (FFT) 频谱分析
特点
- 7 英寸宽视角 WVGA 显示
- 34 种自动测量
- FFT 分析、波形数学计算、光标、双频率计数器等

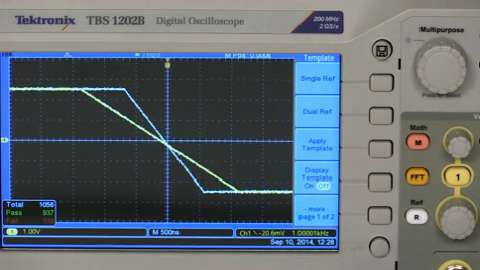

- 极限测试和数据记录

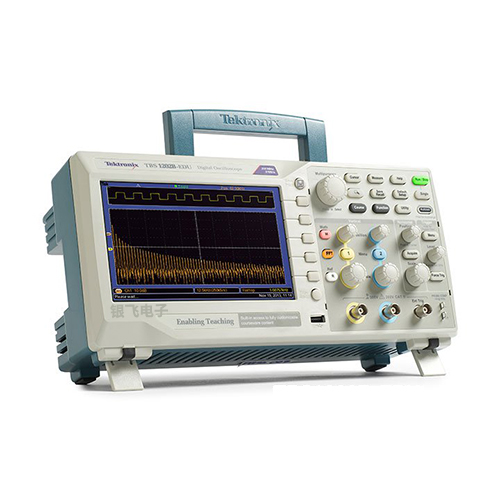

TBS1000B-EDU培育未来领先工程师。
通过提供适用于教育工作者的特殊功能,TBS1000B-EDU 可帮助讲师培养未来的工程师。
特点
- 课件生态环境可让讲师将信息加载到 TBS1000-EDU,以在实验室中帮助学生(标配)
- 兼容 TekSmart Lab™ 网络软件 ,可帮助讲师从一台 PC 设置和监控多台仪器
- 内置上下文相关帮助系统随时随地为您提供所需帮助

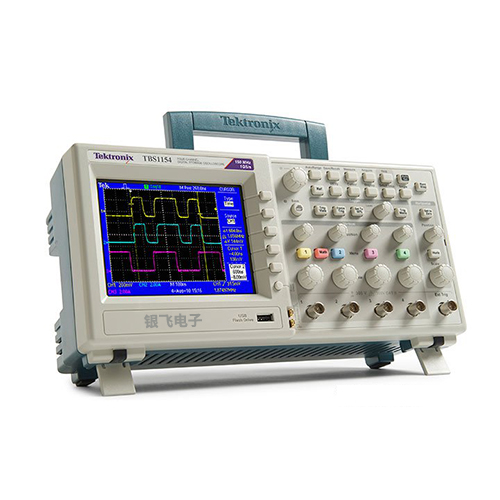

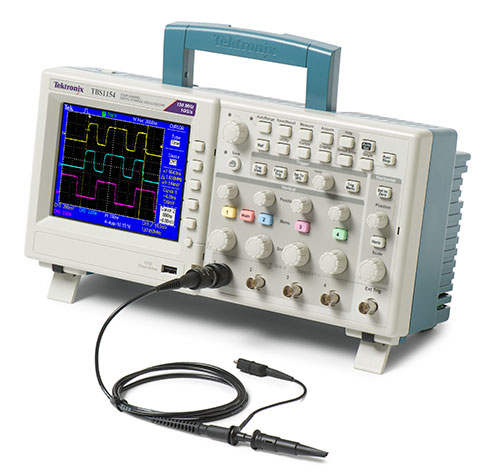

TBS1000轻松分析更多信号
TBS1000 支持同时虚拟化多个信号,包括较为复杂的信息。
使用TBS1000进行测量
特点
- 4条模拟通道
- 16 种自动测量
- 5.7 英寸彩色显示
型号 | 模拟带宽 | 采样率 | 记录长度 | 模拟通道 |
---|---|---|---|---|
TBS1072B-EDU | 70 MHz | 1 GS/s | 2.5k 点 | 2 |
TBS1072B | 70 MHz | 1 GS/s | 2.5k 点 | 2 |
TBS1102B-EDU | 100 MHz | 2 GS/s | 2.5k 点 | 2 |
TBS1102B | 100 MHz | 2 GS/s | 2.5k 点 | 2 |
TBS1064 | 60 MHz | 1 GS/s | 2.5k 点 | 4 |
TBS1152B-EDU | 150 MHz | 2 GS/s | 2.5k 点 | 2 |
TBS1152B | 150 MHz | 2 GS/s | 2.5k 点 | 2 |
TBS1104 | 100 MHz | 1 GS/s | 2.5k 点 | 4 |
TBS1202B-EDU | 200 MHz | 2 GS/s | 2.5k 点 | 2 |
TBS1202B | 200 MHz | 2 GS/s | 2.5k 点 | 2 |
TBS1154 | 150 MHz | 1 GS/s | 2.5k 点 | 4 |
型号 | 模拟带宽 | 采样率 | 记录长度 | 模拟通道 |
---|---|---|---|---|
TBS1072B-EDU | 70 MHz | 1 GS/s | 2.5k 点 | 2 |
TBS1072B | 70 MHz | 1 GS/s | 2.5k 点 | 2 |
TBS1102B | 100 MHz | 2 GS/s | 2.5k 点 | 2 |
TBS1102B-EDU | 100 MHz | 2 GS/s | 2.5k 点 | 2 |
TBS1064 | 60 MHz | 1 GS/s | 2.5k 点 | 4 |
TBS1152B-EDU | 150 MHz | 2 GS/s | 2.5k 点 | 2 |
TBS1152B | 150 MHz | 2 GS/s | 2.5k 点 | 2 |
TBS1104 | 100 MHz | 1 GS/s | 2.5k 点 | 4 |
TBS1202B-EDU | 200 MHz | 2 GS/s | 2.5k 点 | 2 |
TBS1202B | 200 MHz | 2 GS/s | 2.5k 点 | 2 |
TBS1154 | 150 MHz | 1 GS/s | 2.5k 点 | 4 |
泰克 TBS1000B |
泰克 TBS1000 |
泰克 TBS1000B-EDU |
泰克 TBS2000 |
|
---|---|---|---|---|
显示 | 7 英寸 | 5.7 英寸 | 7 英寸 | 9 英寸 (800x480) |
记录长度 | 2.5k 点 | 2.5k 点 | 2.5k 点 | 2M 点 |
水平网格 | 10 | 10 | 10 | 15 |
通道 | 2 | 4 | 2 | 2 或 4 |
带宽 | 可达 200 Mhz | 可达 150 Mhz | 可达 200 Mhz | 可达 100 Mhz |
采样率 | 可达 2 Gs/s | 可达 1 GS/s | 可达 2 Gs/s | 可达 1 GS/s |
自动测量 | 34 | 16 | 34 | 32 |
应用 | 研发和教育 | 研发和教育 | 教育 | 研发和教育 |
特殊应用 | 频率计数器、趋势图、增强的通过/失败和数据记录 | - | 频率计数器,课件集成 | - |
教育解决方案 | - | - | 包含课件,兼容 TekSmartLab |
包含课件,兼容 TekSmartLab HelpEverywhere、ScopeIntro |
保修 | 5 年 | 5 年 | 5 年 | 5 年 |
产品技术资料 | 附件 | 描述 |
---|---|---|
AC2100 | 软提包 | |
HCTEK4321 | 硬提包 | |
视图 产品技术资料 | TEK-USB-488 | USB 至 IEEE488 (GPIB) 通信适配器,适用于 USBTMC-USB488 兼容泰克仪器 |
