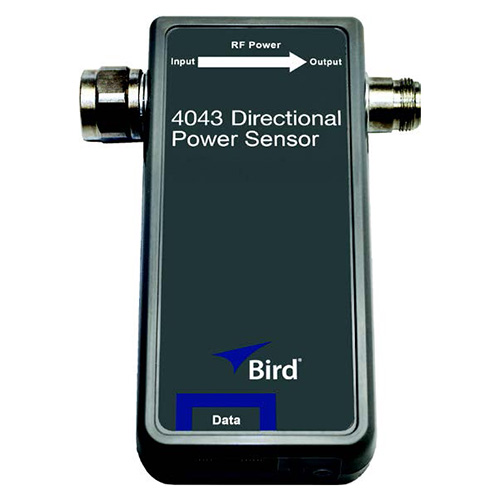

Bird-4043 Directional Power Sensors Provides composite power readings 4043 Series, RF Power Sensors are designed for use with the 3141 Channel Power Monitor (CPM) to provide composite power readings. The sensors are typically used to measure forward and reflected average power on a 50 ohm RF transmission line with maximum 500 watt forward and reflected power levels in a frequency band with an overall range of 118 to 940 MHz. The 4043 sensor also provides VSWR readings.

The 4043 has a RS-485 serial bus designed to transfer data to and from a CPM. The serial bus also serves as the RF sensor’s power supply. Each sensor is equipped with two RJ-25 jacks for serial communications, RF input and output connectors, and a status indicator. The second RJ-25 jack may be used to extend the RS-485 bus to another digital sensor.

Bird 4043 Directional Power SensorsPRODUCT FEATURES

• Power monitor display and sensors allow you to build a system around your needs.
• Monitor up to 16 non-directional and 16 directional sensors simultaneously.
• Measures forward, reflected, composite and individual channel power as well as antenna system VSWR.
• Monitoring of the system is accomplished via interface with the front panel or accessed through the built in web server and web page.
• Configurable alarming for high and low level power and high antenna VSWR,utilizing hard contact and SNMP formats.
• Standard Push-to-Talk (PTT) compatibility.

Bird 4043 Directional Power Sensors product specifications:

Specification	Description
Item No	Bird-4043
Item Name	Directional Power Sensor, RJ-25
Measurement Range - FWD Power (Standard)	25 W to 500 W
Measurement Range - FWD Power (Low Power LP)	2.5 W to 50 W
Measurement Range - RFL Power (Standard)	2.5 W to 50 W
Measurement Range - RFL Power (Low Power LP)	0.25 W to 5 W
Measurement Accuracy	±5% of reading
Frequency Range	Part number constructed per connection options: ff: Frequency Band 42 = 118 MHz to 144 MHz 44 = 144 MHz to 244 MHz 45 = 380 MHz to 450 MHz 46 = 450 MHz to 512 MHz 47 = 762 MHz to 806 MHz 48 = 806 MHz to 869 MHz 49 = 896 MHz to 940 MHz 50 = 225 MHz to 400 MHz (Military Band)
Max Forward Power Measurement	ww: 02 = 0.25 W to 5 W ww: 03 = 2.5 W to 50 W ww: 05 = 25 W to 500 W
Communication Interface	xx: 05 = RS-485 via RJ-25
Input Connector	yy: 01 = N (F) yy: 02 = N (M) yy: 03 = 4.3/10 (F) yy: 04 = 4.3/10 (M)
Output Connector	zz: 01 = N (F) zz: 02 = N (M) zz: 03 = 4.3/10 (F) zz: 04 = 4.3/10 (M)
Dynamic Range	13 dB
Impedance	50 Ω
Insertion Loss	< 0.2 dB
VSWR	<1.15:1 (Maximum)
Intermodulation Distortion - PIM	<-145 dBc
Power Supply	7/18 VDC, <50 mA (from 3141)
Operating Temperature	0 to 50 °C (32 to 122 °F)
Dimensions	5.2 in x 3.8 in x 1.4 in (132 mm x 96.5 mm x 35.5 mm)
Weight	0.5 lbs (0.23 kg)
Compliance Standards	CE, RoHS
Standard Accessory	10' RJ-25 Interface Cable
