DRUCK公司压力校验仪产品推荐

DRUCK公司压力校验仪产品推荐。德鲁克Druck是一家拥有深厚历史底蕴的压力、温度测量和校准仪器仪表制造商,其创立可追溯至1972年。作为全球公认的品牌创新者之一,Druck始终专注于研发和生产各类精密压力传感产品,旨在满足各种关键应用领域的需求,包括航空航天、石油天然气、汽车制造、工业过程控制以及科研实验等。DRUCK公司推出的IDOS智能数字输出压力传感器模块是其技术创新的典范之作。这款模块集高精度、稳定性与智能化于一体,采用先进的数字化技术,能够提供准确且实时的压力数据输出。IDOS模块设计灵活,易于集成到不同的系统中,不仅扩展了仪器的测量范围,还提升了整体的测量能力和应用灵活性。凭借其卓越的测量性能和坚固耐用的设计,DRUCK IDOS智能数字输出压力传感器模块在严苛环境中也能保持可靠的工作状态,为用户提供高度精确的压力测量解决方案。此外,该模块还具备用户友好的界面和便捷的安装特性,进一步增强了其在市场中的竞争力。德鲁克Druck凭借其专业技术、持续创新和对产品质量的执着追求,不断推动着压力测量技术和标准的发展,为全球各行业提供了好用的的精密测量工具和服务。DRUCK公司的IDOS智能数字输出压力传感器模块便是其致力于满足客户需求和推动行业进步的有力证明。
Druck, a Baker Hughes business, delivers world-class expertise, excellence, and reliability in the toughest environments. Druck’s piezo-resistive pressure sensors, pressure transducers, pressure test and calibration instruments provide our companies high performance, stability, quality, accuracy, and quick response – in any environment.
What began in 1972 as a small business in Leicester, UK, has grown into a pressure-measurement business that’s recognized as a world leader, serving a range of calibration equipment and pressure sensor applications for customers in more than 70 countries. Druck’s high-quality pressure sensors and multifunction calibrators start with the in-house, raw processing of silicon right through to the delivery of the final pressure sensor or calibration system.
IDOS智能数字输出压力传感器模块

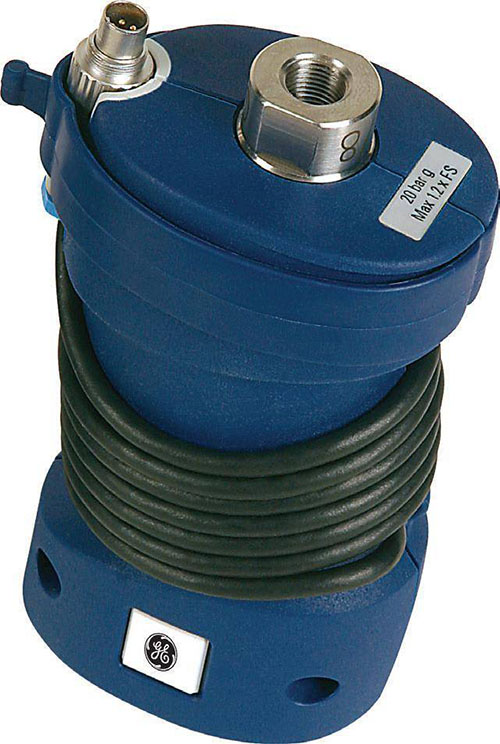

DRUCK IDOS智能数字输出压力传感器模块
Druck DPI系列的每一款仪器都配备了一个通信接口,与IDOS智能压力传感器模块兼容,使得能够连接远程IDOS压力测量模块。例如,通过装配通用压力模块,Druck DPI800压力指示器可以升级为一款全功能的压力校验仪
DRUCK德鲁克公司的IDOS智能压力传感器模块具有互换性,可以在任何支持IDOS技术的设备上使用,无需进行额外的校准或设置过程。这些模块被誉为真正的“即插即用”解决方案,方便快捷。
Druck公司开发的IDOS-UPM通用压力模块提供了一种成本效益高的方式来扩大仪表的测量范围、增强压力测量能力,并适应更多的应用场合。这些模块精度高,封装在坚固耐用的外壳中,确保了可靠性,并且支持IDOS的即插即用连接特性。
IDOS智能数字输出压力传感器模块与DPI系列
IDOS智能数字输出压力传感器模块与DPI系列压力指示仪配合使用

IDOS智能压力传感器模块显著优点:

压力范围为10 in H2O至10000 psi(25 mbar至700 bar)
标准精度为0.05%满标度(FS);10”H2O(表压)和5 psi(绝对)时为0.1%;1 psi至10 psi(表压)和30至300 psi(绝对)时为0.075%,
可选0.01%FS premier精度(0.03%,压力范围在10”H2O和10 psi之间)
与所有IDOS兼容产品完全可互换;无需设置
抗冲击,弹性外壳保护
坚固、防风雨、使用简单

IDOS压力模块“即插即用”通用压力模块的特点
IDOS压力模块兼容仪表的远程压力传感器
应用:测试、测量、监控和校准
扩展仪器测量范围和能力

IDOS智能压力模块与以下校验仪兼容:

一、DPI611压力校验仪,独立的压力测试和校准系统,将压力产生、信号测量和回路供电结合在一起

DPI611Features
Fast, intuitive, dependable performance
50% smaller and 33% lighter than the DPI610
Generates from 95% vacuum to 20 bar/300 psi pneumatic pressure
Achieves 0.0185% FS accuracy
Simplified, intuitive touch screen interface with application DASHBOARD, quick TASK selection and FAVORITES storage
Fast, three touch set-up for any application
Calculates PASS/FAIL errors, documents results and interfaces with calibration software
Quick automated procedures, error free digital data and software integration
DPI 611


二、DPI612Flex系列压力检验仪,有三种型号可供选择,产生低至95%真空或高达15000 psi,精确度高达0.005%FS。

DPI612FlexFeatures
Complete pressure calibration tool
Accuracy up to 0.005% FS
Touch screen
Fast and dependable up to 15000 psi (1000 bar)
31 interchangeable pressure modules
"Quick-to-fit" pressure adaptor/hose system
Automated calibration procedures
8Gb internal memory
Operating temp: -4 to 158°F (-20 to 70°C)

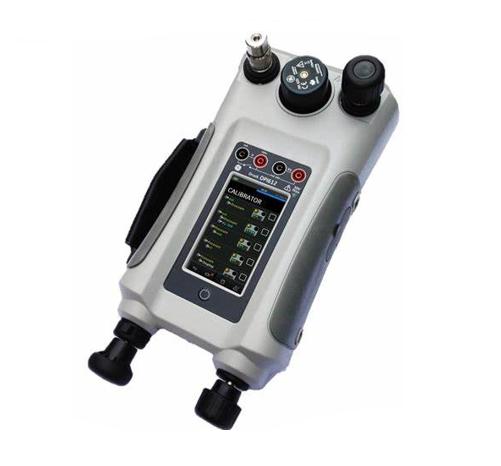

DPI612FLEX压力检验仪



三、DPI802压力指示器和回路校验仪,力指示器和回路校准器的测量范围为10 inH2O至10000 psi。

DPI802PFeatures
Ranges from 10inH2O to 10,000psi (25mbar to 700bar)
Single or dual range configuration
IDOS sensors are accurate to 0.05% FS all-inclusive
Or 0.01% precision
mA measure, switch test, and 24V loop power
Large backlit display, menu driven interface
HART loop resistor
Robust and weatherproof
Compact, simple to use, easy to carry
Convenient, one-handed operation
Secure grip, impact resistant, elastomer protected

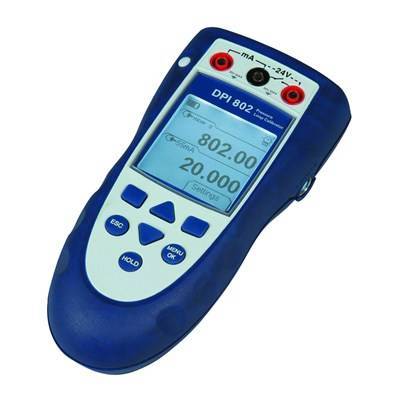

DPI 802压力指示器和回路校验仪




四、DPI880多功能校验仪,超紧凑且易于使用的便携式多功能信号校验仪。

DPI880Features
Sources and reads mA, mV, ohms, frequency and pulses
Simulates and reads 8 RTDs and 12 thermocouples
32 IDOS ‘Plug-N-Play' Pressure modules from 10 in H2O to 10,000 psi (25 mbar to 700 bar)
Simultaneous dual reading capability
Automatic switch test and pressure leak test
24 V loop power supply
Datalogging option
Compact, simple to use, easy to carry
Convenient one hand operation
DPI 880多功能校验仪




五、PACE1000精密压力控制器,测试台、台面和机架安装校准;测试和监控应用程序。

PACE1000Features
Single or multiple pressure range configurations
Up to three pressures displayed simultaneously
Choice of precision up to 0.005% FS
Long term stability up to 0.01% Rdg per year
Negative gauge calibration included as standard
High resolution touch screen operation
Data Logging as standard with on screen replay

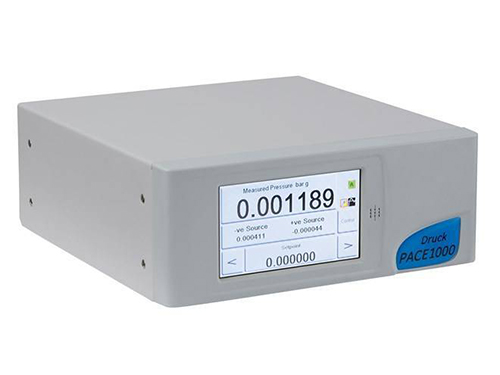

PACE1000精密压力控制器



六、PACE1001大气压计,高精度气压指示器和记录器,用于实验室、机场和其他应用中的大气压力监测。

PACE1001Features
Pressure ranges 750-1150 mbar (10.9-16.7 psi, 75-115 Kpa), absolute
Choice of precision up to 0.025 mbar/0.0003625 psi
Data logging as standard with on screen replay
Selectable numeric or graphic display
High resolution touch screen operation
Intuitive icon driven task menu structure
Airfield Task as standard: Display QFE, QFF or QNH in pressure units or as altitude in feet or meters
Leak Test Option
Analog Output option
Voltage Free Contact option
RS232, IEEE connectivity, Ethernet and USB as standard
Min/Max/Average display
Compatible with software packages
28 selectable pressure units plus 4 user defined units

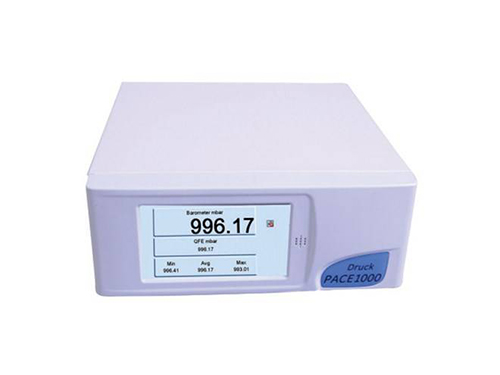

PACE1001大气压计
7、DPI812 RTD热电阻校验仪,为压力变送器/回路维护提供同时RTD输出和mA测量。
8、DPI820双输入温度计,双输入温度计允许单独测量或同时比较。
9、DPI822热电偶回路校验仪,带有可选回路的热电偶校验仪。
10、GE Druck公司DPI832电压电流校验仪,用于仪表测试和回路维护的电气回路校准器。

IDOS UPM压力模块订货型号:

IUPM-S-5PSIA
IUPM-S-30PSIA
IUPM-S-100PSIA
IUPM-S-300PSIA
IUPM-S-50PSIG
IUPM-S-100PSIG
IUPM-S-150PSIG
IUPM-S-300PSIG
IUPM-S-500PSIG
IUPM-S-1000PSIG
IUPM-S-1500PSIG
IUPM-S-2000PSIG
IUPM-S-3000PSIG
IUPM-S-5000PSIG
IUPM-S-10,000PSIG
IUPM-S-10inH2OG/D
IUPM-S-1PSIG/D
IUPM-S-3PSIG/D
IUPM-S-5PSIG/D
IUPM-S-10PSIG/D
IUPM-S-15PSIG/D
IUPM-S-30PSIG/D
IUPM-P-50PSIG
IUPM-P-100PSIG
IUPM-P-150PSIG
IUPM-P-300PSIG
IUPM-P-500PSIG
IUPM-P-1000PSIG
IUPM-P-1500PSIG
IUPM-P-2000PSIG
IUPM-P-3000PSIG
IUPM-P-10inH2OG/D
IUPM-P-1PSIG/D
IUPM-P-3PSIG/D
IUPM-P-5PSIG/D
IUPM-P-10PSIG/D
IUPM-P-15PSIG/D
IUPM-P-30PSIG/D
文章来源于DRUCK公司,深圳银飞公司有售压力校验仪产品,欢迎沟通和定制。
