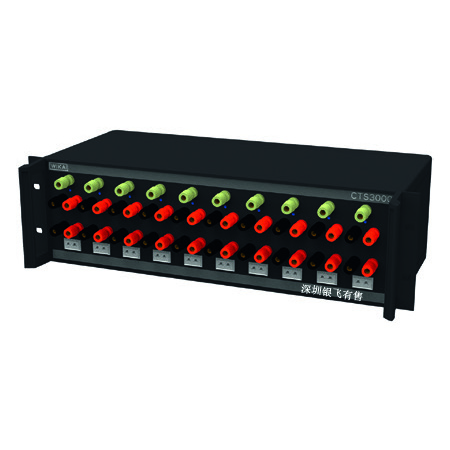

多路温度开关 CTS3000 19英寸机架的内置外壳

Multiplexer model CTS3000 in built-in case for 19 rack 多路温度开关CTS3000 19英寸机架的内置外壳。The model CTS3000 multiplexer is a component of the modular system of our precision thermometer series.It is used to switch between several thermometers in order to make the measured value registration easier or even to automate it. This saves time and with that, also money. Our multiplexer can only be used with one of our model CTR precision thermometers. These feed and communicate completely autonomously with the multiplexer. The multiplexer is operated reliably by solid-state rela......

产品描述

Multiplexer model CTS3000 in built-in case for 19" rack多路温度开关CTS3000 19英寸机架的内置外壳。The model CTS3000 multiplexer is a component of the modular system of our precision thermometer series.It is used to switch between several thermometers in order to make the measured value registration easier or even to automate it. This saves time and with that, also money.
Our multiplexer can only be used with one of our model CTR precision thermometers. These feed and communicate completely autonomously with the multiplexer.
The multiplexer is operated reliably by solid-state relays, so that high-precision switching from channel to channel is possible. Due to the use of high-quality materials, no loss of accuracy is to be expected, either.
All settings for the thermometer on a specific channel, such as the measuring range, characteristic curves or measuring current, are made directly on the measuring instrument. In addition, these settings can be comfortably managed from a PC and also via the interface of the measuring instrument.
CTS3000型多路温度开关是我们精密温度计系列模块化系统的一个组成部分。它用于在多个温度计之间切换,以使测量值注册更容易,甚至实现自动化。为客户提高了工作效率,也为用户企业节约很大的时间和测试人工成本。我们的多路开关只能与我们的一个CTR型精密温度计一起使用。它们与多路开关完全自主地馈送和通信。
多路开关由固态继电器可靠操作,因此可以从一个通道到另一个通道进行高精度切换。由于使用了高质量的材料,预计也不会损失精度。
特定通道上温度计的所有设置,如测量范围、特性曲线或测量电流,都直接在测量仪器上进行。此外,这些设置可以通过PC轻松管理,也可以通过测量仪器的接口轻松管理。
CTS3000

多路温度开关应用

■ 测量仪器通道的扩展
■ 扩展测量值配准
■ 温度映射

多路温度开关特色

■ 测量仪器无精度损失
■ 测量仪器处无通道损失
■ 很多可以堆叠四个多路开关
■ 由于采用优质材料,因此无寄生热电压
■ 通过使用固态继电器,无磨损和咔哒声

CTS3000多路温度开关规格

多路开关
频道数:10
信道指示:LED
探针连接:4 mm香蕉插孔和TC迷你连接器
案例类型■ 19英寸机架的内置外壳
              ■ 桌面机箱(可选)
与测量仪器的连接
每个测量仪器的很大数量:4
可选探头类型
Pt100–3线制✅
Pt100–4线✅
热敏电阻✅
热电偶✅
测量仪器分配
CTR3000✅

容许环境条件
工作温度0…50°C[32…122°F]
相对湿度0…60%r.h.(非冷凝)
储存温度-20…+50°C[-4…+122°F]

产品尺寸(宽x高x深):见技术图纸
重量4公斤[8.8磅]

产品符合欧盟CE认证,通过欧盟符合性声明
■ EMC指令
■ RoHS指令
  Order code

CTP5000
Temperature probe model CTP5000
Immersion probe
CTP5000
CTP9000 Thermocouple model CTP9000
Immersion probe type S With or without cold junction
CTP9000
