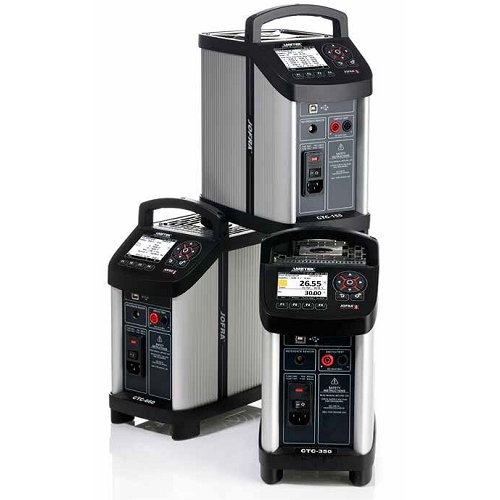

CTC Series Compact Temperature Calibrator



Save Time, Save Money

Best in class industrial calibrator

The new generation of the CTC temperature

calibrator has improved the accuracy with as much

as 25%. This makes it the most accurate industrial

class temperature calibrator on the market.

Wide temperature range

The CTC series covers a wide temperature range

from -25 to 660°C (-13 to 1220°F). This makes it

sufficent to cover almost all standard industrial

emperature calibration applications.

CTC-155: -25 to 155°C (-13 to 311°F)

CTC-350: 28 to 350°C (82 to 662°F)

CTC-660: 28 to 660°C (82 to 1220°F)



Fast calibration

All our Jofra temperature calibrators feature a

purpose-dedicated temperature regulator. This

provides a very fast heating and cooling time as

well as a short stabilization time. Performing a three

point temperature calibration procedure is fast and

saves time.



External reference sensor

All our C Models are designed with a signal input

for an external reference sensor. The sensor makes

it possible to improve accuracy even more. Our new

range of external reference sensors have been

developed to match each of the new CTC’s.



External sensor control

The CTC can be run in two modes when using the

external reference sensor. “External ref” mode is

where the external reference sensor represents the

True value. The “Set Follows True” mode is where

the reference sensor serves two purposes;

measuring the reference temperatue and at the

same time controlling the block temperature to the

set temperature.



Easy to carry

The CTC series is designed for both on-site and

maintenance shop calibration. We have focused on

great portability in regard of size and weigth. The

calibrator is lightweigth and easy to carry and with a

handle placed away from the heat-zone.



Multi-Information Display



Status Bar

Shows information about

recalibration due status and hot/

cold safety warnings and keeps

track of date and time.

Calibration Settings

Shows the actual calibration

settings for reference sensor and

stability criteria. Can be accessed

and changed directly in the

display by use of the arrow keys.

Calibration Status

Shows current status of the

calibrator, like heating/cooling,

stabillity achieved and expected

time to stability.

Function Bar

Shows the current possibilities of

the function keys.



Function Keys

The function keys serve as shortcuts to the main functions like Set, Preset, Auto step and Switch test. When entering one of the functions the function key shows the options within the selected function.

Informative color display and intuitive operation

The CTC series is designed with an easy to read and very informative color display that gives you a full overview of the calibration task you currently are performing.
