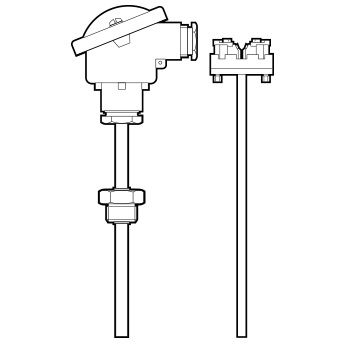

The 1400 series industrial temperature sensor is a resistance thermometer with a fixed or replaceable sleeve for use at a maximum temperature of 600 degrees celsius. Equipped with low pressure, high pressure welding or open type thermocouple tube hole, can be screwed in or welding access to process flow. Our sensors are manufactured with the highest quality, allowing the system to maximize performance and minimize costly downtime.

Seven different models cover a wide range of fields and applications:

Chemical process engineering

HVAC (HVAC)

Heat and energy distribution (heating)

Mechanical structure and environmental engineering

Incinerator

Boiler boiler

Power plant

Drying equipment

Option:

1401 A type resistance thermometer assembly with replaceable casing A. Suitable for temperature measurement in ducts and furnaces with air and flue gas flow. The maximum operating temperature is 600 DEG C in the low pressure range

1402 type BF - a resistance thermometer assembly with a screwed in bushing BF. The utility model is suitable for the temperature measurement of the air and the liquid which is required for the quick reaction, and also can be used for the temperature measurement in the sealed pipeline and the container, if the optional screwing type sleeve is used. Maximum operating temperature of 400 degrees, the maximum pressure of 50 bar, the maximum flow rate of 25 m/sec (air)

1403 type B - resistance thermometer assembly with a screwed in replaceable casing B. The utility model is suitable for the temperature measurement in pipelines and containers containing air, steam, natural gas, water, oil, etc.. Maximum operating temperature of 600 degrees, the maximum pressure of 50 bar, the maximum flow rate of 25 m/sec (air)

1405 type D - resistance thermometer assembly with welded replaceable casing D. The utility model is suitable for the temperature measurement of the pipeline system and the storage tank with high pressure and high flow rate air, steam, water, etc.. Maximum operating temperature 600 DEG C, maximum pressure of bar (water), the maximum flow rate of 60 m/sec (steam)

1406 type DS - resistance thermometer assembly with welded replaceable casing DS. The utility model is suitable for the temperature measurement of the pipeline system and the storage tank with high pressure and high flow rate air, steam, water, etc.. Maximum operating temperature 600 DEG C, maximum pressure of bar (water), the maximum flow rate of 60 m/sec (steam)

1407 BH type fast response resistance thermometer assembly with replaceable casing BH. The utility model is suitable for the temperature measurement in pipelines and containers containing air, steam, natural gas, water, oil, etc.. Maximum operating temperature of 600 degrees, the maximum pressure of 50 bar, the maximum flow rate of 25 m/sec (air)

1408 type AF - Measurement of resistance thermometer assembly with casing with a connector AF. Suitable for temperature measurement in ducts and furnaces with air and flue gas flow. The maximum operating temperature is 600 DEG C in the low pressure range
