氧中氢分析仪和氢中氧分析仪工作原理
氧中氢分析仪和氢中氧分析仪工作原理，FTC320和FTC130设备都可以通过RS232接口来获取数据。其中FTC320采用了坚固的IP65防护等级设计，可以在-20°C到+50°C的温度范围内工作，并且能够承受高达20 bar的压力。对于氧中氢和氢中氧的测量，其氧气的最小检测范围为0至0.5 vol.%（相当于5000ppm），而氢气的最大检测范围则为98% Vol.至100% Vol.。该设备具有每周100ppm的零点漂移，测量噪声为50ppm，每摄氏度有5 ppm的温度依赖性。

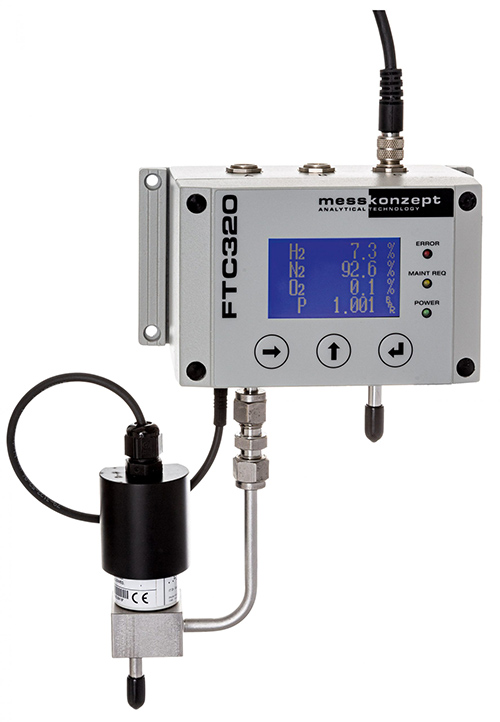

FTC320 with O2 module with additional oxygen measurement
An optional add-on module for oxygen measurement extends the application range of the FTC320 to non-binary gas mixtures with oxygen content. The electrochemical cell has a long service life of 1 to 6 years. The cell can be replaced by the customer.Oxygen concentrations from 0-100 vol.% can be measured selectively. The measured concentration can be used for cross sensitivity compensation. The additional module is pneumatically connected to the gas output of the FTC320. The voltage supply, operation and all interfaces run via the FTC320. The measured oxygen concentration is shown on the display.If required, adjustment can be made via the operating menu or via the RS232 interface of the FTC320. Due to an internal compensation of the pressure dependency, the oxygen content can be measured reliably even in case of pressure fluctuations.
FTC320和FTC130氧中氢分析仪以及氢中氧分析仪采用先进的热导式原理，能够准确测量二元组份气体的量程高达0-100%Vol。其显示分辨率更是达到了惊人的1ppm，并且线性可达1%FS，响应时间极快，只需短短1秒（T90）即可完成测试。
The FTC320 is the new generation of our thermal conductivity analyzers. With the new electronics, the measurement accuracy has been improved compared to the FTC300. The already low noise of our analyzers has been further reduced. This is particularly crucial for measurements in the trace range.New measurement tasks can be realized with the FTC320. In particular, the possibility of cross-sensitivity compensation using external signals has been expanded. This is made possible by the larger program memory and significantly more computing power. A good example from the practical application is the use of the additional module for oxygen measurement. The increased computing power of the FTC320 allows cross-sensitivity compensation in real time.
For a more intuitive use, the operating menu has been slightly revised. As usual, data access is possible via an RS232 interface. The mounting dimensions as well as the analog interfaces (4-20mA, 0-10V and relays) stay the same compared to the FTC300. Those who are familiar with the FTC300 will also quickly get to work with the FTC320.

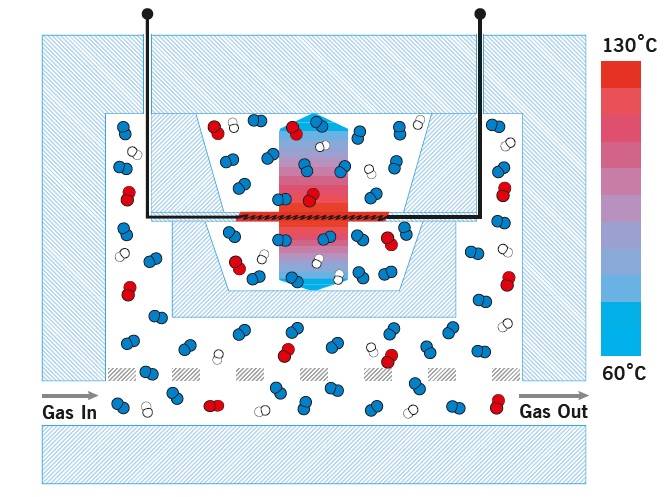

氧中氢分析仪和氢中氧分析仪热导工作原理示意图
FTC320和FTC130氧中氢分析仪和氢中氧分析仪仪特点
l 6次方线性化拟合，精度非常高。
l 隔离的4-20mA输出，在100%Vol.的范围内，可以任意设置量程
l 经典的2点校准或单点校准
l 可自由设置显示屏ppm或Vol.%显示，分辨率达到1ppm
l 快速响应，T90响应时间小于1秒(取决于流量)
l 耐正压(20bar)和真空密封不锈钢(LF316i) 气体管路
l 三个隔离继电器分别显示警报和仪器状态
l RS232数字接口，可以输出所有参数
l 在整个100%Vol.范围内，数字输出达到1ppm分辨率
l 小巧且坚固的变送器嵌入铝壳，适合野外作业（防护等级为IP65）
l 尺寸：145mm(宽)x 80mm (高，没有连接器)x 85 mm(深)
l 电源：18~36VDC/1000mA
FTC320和FTC130氧中氢分析仪和氢中氧分析仪测量范围
测量气体： 氢气H2
背景气：氧气O2
基本量程：0~100%
最小量程：0~0.5%
最小压缩零点量程：98%~100%
测量气体：氧气O2
背景气：氢气H2
基本量程：0~100%
最小量程：0~2%
最小压缩零点量程：98%~100%

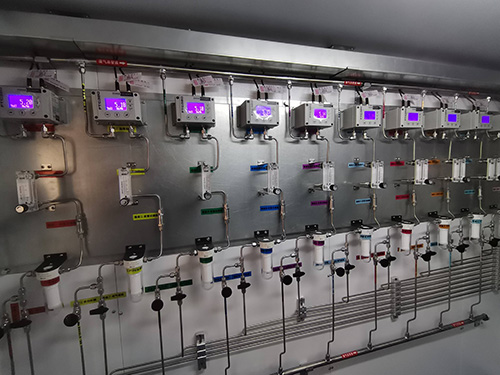

氧中氢分析仪和氢中氧分析仪安装示意图
FTC320和FTC130氧中氢分析仪和氢中氧分析仪技术参数
线性：1%FS
预热时间：大约20分钟，1小时（小量程），取决于环境温度
流量：10l/h~150l/h; 60l/h~80l/h(推荐)
响应时间（T90）：<1s @60l/h，或取决于用户设置
噪音：<最小量程的1%
零点漂移：<最小量程的2%/周
重复性：<量程的1%
误差（环境温度变化）：<最小量程的1%/10K
误差（流量变化@80l/h）：<最小量程的1%/10l/h
误差（压力变化，80kPa<P<120 kPa）：<最小量程的1%/1kPa
显示：128 x 64点，图形LCD
键盘：3个快速键
模拟输入：0~10VDC,输入阻抗：50 kΩ，24位分辨率
电流输出：0/4~20mA,最大500V，最大负载：800Ω，16位分辨率
电压输出1和2：0~10VDC,输入阻抗：10 kΩ，16位分辨率
继电器1,2和3：最大电压：30V，最大开关电流：0.5A，最大开关容量：10W，全浮空最大±500V
供电电压：18V-30VDC，最大1A，典型：500mA，保护性超低电压
数据接口：RS232，波特率：19200，数据位：8，奇偶性：N,停止位：1
气体压力：最大20bar绝压
气体温度：最大80℃@25℃环境温度，最大50℃@50℃环境温度
灰尘、气溶胶、油雾：用户需要通过水汽分离器和过滤器去除
腐蚀性气体：避免
湿度和液滴：非冷凝
工作温度：-20~+50℃
存储温度：-25~+70℃，非冷凝
防护等级：IP65(如果电缆被塞紧和/或所有未使用的插孔都使用保护帽密封）
流量：40l/h~150l/h; 60l/h~80l/h(推荐)
尺寸（没有接头）/重量：144mm(宽)x 80mm (高)x 85 mm(深)/1500g(最大)
供电电压：18~36VDC/700mA，最大1000mA
安装方式：墙壁安装
深圳银飞公司有售FTC320和FTC130氧中氢分析仪和氢中氧分析仪
Specifications additional module: Selective oxygen (O2) measurement
| General: | |
| Measurement process | Electrochemical |
| Construction type | additional module |
| Sampling | 6mm pipe socket |
| Dimensions (W x H x D in mm) | 145x80x85 |
| Connection | IP 65 |
| Protection class | 700 hPa bis 1250 hPa |
| Pressure-proof to | 10l/h bis 100l/h |
| Power supply | From FTC320 |
| Ambient temperature range | 0 bis 45 °C |
| Weight | 500g |
| T90 time at 60l/h | < 10sec |
| Lifetime | < 6 years with ambient air, depending on the application, higher temperature and dryer gas reduce service life |
| Maintenance | User replaceable sensor |
| Materials in contact with media: | ABS, PVC, PPS, PTFE, stainless steel |
| Communication: | |
| RS232 | Via FTC320 |
| Current output | - |
| Voltage output | - |
| Display | Via FTC320 |
| Relays | Via FTC320 |
| Service programm SetApp2.0 | - |
| Calibration on site | Via FTC320 |
| Specifications gas analysis: | |
| Measuring range |
Smallest measuring range: 0.01Vol.% to 2Vol.% Smallest measuring range: 0.01Vol.% to 100 Vol.% |
| Noise | Smallest measuring range: 0.01Vol.% to 2Vol.% |
| Zero Offset Equivalents |
Smallest measuring range: 0.01Vol.% to 2Vol.% Largest measuring range: 0.01Vol.% to 100 Vol.% |
| Drift | < 1 % per month, averaged over 12 months |
| Repeatability | ± 1 % vol O2 @ 100 % vol O2 for 5 min applied |
| Linearity deviation |
0 to 2 Vol.% O2: ± 0.1 absolute 2.1 Vol.% to 100 Vol.% O2: ± 0.5 relative |
| Pressure dependence, compensated: | <0.1% / 10hPa |
| Messfehler bei Umgebungstemperaturänderung pro 10°K | < 1% of smallest MB |
| Measuring error with ambient temperature change per 10°K | < 1% of smallest MB |
| Error when the sample gas pressure changes (Pabs> 800hPa) per 10hPa | < 1% of smallest MB |
| Influence of humidity: | 0,03 % rel. O2-measured value per % RH |
