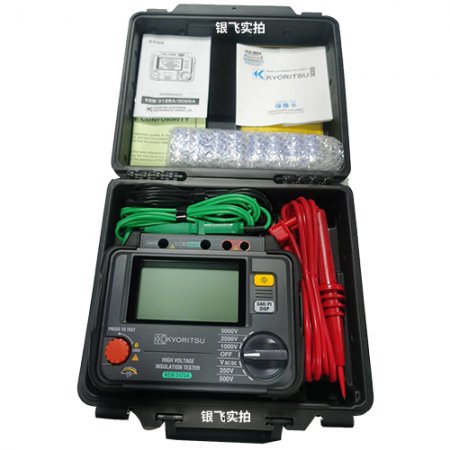

高压绝缘测试仪 KEW3125A
产品描述
高压绝缘测试仪 KEW-3125A
HIGH VOLTAGE INSULATION TESTER KEW 3125A
CE AutoDischarge
●Insulation Resistance up to 1TΩ
●Short-Circuit Current up to 1.5mA
●Wide Test Voltage from 250Vto 5000V
●Diagnosis Function of PI and DAR
●Newly-designed alligator clip

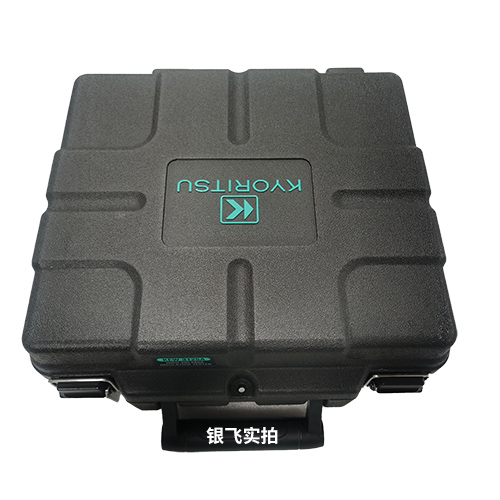

●It comes with a tough hard case
●Filter function reduces noise interference for obtaining stable measurement
●Large display with Bar Graph indication and backlight
●Live voltage warning
●Safety standard IEC 61010-1 CAT IV300V/ CAT III 600V
●DC/AC V，Backlight，AutoPower，Off，250V 500V 1000V 2500V 5000V
绝缘电阻/Insulation resistance
|
额定电压/Rated voltage |
250V |
500V |
1000V |
2500V |
5000V |
|
|---|---|---|---|---|---|---|
|
准确性/Accuracy |
0.0 - 100.0MΩ |
0.0 - 99.9MΩ |
0.0 - 99.9MΩ |
0.0 - 99.9MΩ |
0.0 - 99.9MΩ |
|
|
±5%rdg±3dgt |
±5%rdg±3dgt |
±5%rdg±3dgt |
±5%rdg±3dgt |
±5%rdg±3dgt |
||
|
短路电流/Short circuit current |
1.5mA |
|||||
|
输出电压/Output voltage |
|
|
||||
|
Accuracy |
±10% |
-10 - +20% |
0 - +20% |
|||
|
Monitor |
±10%rdg±20V |
|||||
电压测量/Voltage measurement
|
测量范围/Measuring range |
AC: 30 - 600V(50/60Hz), DC: ±30 - ±600V |
|---|---|
|
准确性/Accuracy |
±2%rdg±3dgt |
一般规格参数/General
|
通过认证标准/Applicable standards |
IEC 61010-1, 61010-2-030 CAT Ⅳ 300V/ CAT Ⅲ 600VPollution degree 2, |
|---|---|
|
电源（电池供电）/Power source |
DC12V: LR14/R14 × 8pcs |
|
尺寸大小/Dimension |
177 (L) × 226 (W) × 100 (D) mm |
|
重量/Weight |
3125A: 1.9kg approx. (including batteries) |
|
附件信息/Accessories |
7165A (Line probe: 3m), 7264 (Earth cord: 3m), 7265 (Guard cord: 3m), |
|
选件附件/Optional Accessories |
7168A (Line probe with alligator clip: 3m), |
日本共立KYORITSU克列茨KEW3125A数字式高压绝缘电阻测试仪配件/可选配件/相关产品
|
日本共立 KYORITSU7165A |
日本共立 KYORITSU7264 |
日本共立 KYORITSU7265 |
日本共立 KYORITSU8019 |
|
日本共立 KYORITSU9181 |
日本共立 KYORITSU7168A |
日本共立 KYORITSU7253 |

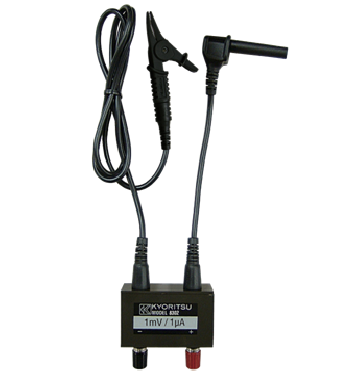

 日本共立 KYORITSU8302 |
