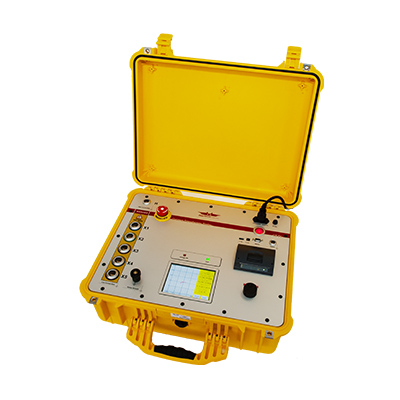

CT-T1电流互感器测试仪用于测量励磁电流变比极性判断无需切换接头
CT-T1是一台基于微处理器的电流互感器测试仪，用于测量励磁电流，变比和极性判断，所以测试无需切换接头。CT-T1和其它Raytech的型号一样，都是以精度为傲的产品，专为严苛现场环境而设计，2-5年选件产品质量和精度保证，让用户使用无忧。单连接允许电流互感器上的所有抽头在无需操作员干预的情况下进行自动测试。
这个CT-TI测试仪是精密制造的，就像你已经知道的所有Raytech产品一样。CT-T1是为适应恶劣的现场测试环境而制造的，它有5年的保修期，保证多年的准确可靠使用。全自动拐点侦测功能，(ASA 10/50, IEEE 30°, IEEE 45°)，变比量程 0.1 to 15000。
5个二次侧抽头开关
1个一次侧抽头开关
针对电流互感器进行励磁电流，变比和极性判断测试
手动或自动消磁测试功能
易用，一次连接较大可测5个抽头
自动测试电压切换功能
方便的抽头选择接头
较大存储 10 000 组测试结果
3“ 寸图形打印机
2个 USB 接口1个 RS-232 串口
型号CT-T1
尺寸：L: 521 mm (20.5”) W: 432 mm (17”) H: 216 mm (8.5”)，重量：20 kg (44 lbs.)
输入电压：115 / 230 VAC, 50 / 60 Hz (auto ranging)
Panel Display: 5.7” Color LCD with back light and touch screen, additional digipot
Front Panel Sealed, Anodized
Interfaces: 2 USB 2.0 full speed (1 host, 1 device) and 9 Pin RS232 serial
Memory Storage Internally stores more than 10 000 test results
Temperature Operating –10°C to 60°C, Storage –20°C to 70°C
L: 521 mm (20.5”) W: 432 mm (17”) H: 216 mm (8.5”)
Weight: 20 kg (44 lbs.)
Input Power: 115/230 VAC, 50/60 Hz, auto ranging
Panel Display: 5.7” Color LCD with backlight and touch screen, additional digipot
Interface: 2 USB interfaces (host and device) and RS-232
Memory Storage: More than 10,000 measurements
Temperature: Operating: –10°C to 60°C (14ºF to 140ºF), Storage: –20°C to 70°C (-4ºF to 158ºF)
4080A-05002: H Lead – 5m (16 ft.), Qty. 1
4080A-05014: X Leads – 5m (16 ft.), Qty. 5
4080A-05001: Safety Ground Lead – 10m (32 ft.)
4080A-31001: Safety Switch – 2m (6.5 ft.)
4080A-05000: H Lead Extension – 5m (16 ft.), Qty. 1
4080A-05003: H Lead Adapter
4080A-05009: X Lead Clip Adapters, Qty. 5
2021A-05009: Power Cord – 7.62m (25 ft.)
4080X-18001: Paper Refill for Printer – 5 rolls
1004A-27003: External USB Drive
2040A-08003: Touch Screen Stylus
1003A-37001: A-B USB Cable 3m (10 ft.)
2021X-07002: Spare Fuse Set, Fast-Acting 16A, Qty. 5
2040A-03004: Cable Bag with Shoulder Strap
4080A-02001: Instruction Manual
4080X-10001: Certificate of Accuracy
| Ratio Range | Accuracy | Resolution | |
| 0.9 ... 5'000 | ± 0.05% | 5 Digits | |
| 5001 ... 10'000 | ± 0.5% | 5 Digits | |
| 10'001 ... 15'000 | ± 1% | 5 Digits | |
| Voltage Range | Accuracy | Resolution | |
| 0 ... 2'000 | 1% Rdg ± 0.1V | 0.01V | |
| Current Range | Accuracy | Resolution | |
| 0 ... 10A | 1% Rdg ± 0.001A | 0.1mA | |
尺寸：L: 521 mm (20.5”) W: 432 mm (17”) H: 216 mm (8.5”)，重量：20 kg (44 lbs.)
输入电压：115 / 230 VAC, 50 / 60 Hz (auto ranging)
Panel Display: 5.7” Color LCD with back light and touch screen, additional digipot
Front Panel Sealed, Anodized
Interfaces: 2 USB 2.0 full speed (1 host, 1 device) and 9 Pin RS232 serial
Memory Storage Internally stores more than 10 000 test results
Temperature Operating –10°C to 60°C, Storage –20°C to 70°C
| Voltage Range: | 0 to 2'000V |
| Current Range: | 0 to 10A |
| Ratio Range: | 0.9 to 15'000 |
| Temperature: | Operating -10°C to +60°C |
| Storage -20°C to +70°C |
See Instruction Manual for more Parameters.Specifications are subject to change without notice.
Weight: 20 kg (44 lbs.)
Input Power: 115/230 VAC, 50/60 Hz, auto ranging
Panel Display: 5.7” Color LCD with backlight and touch screen, additional digipot
Interface: 2 USB interfaces (host and device) and RS-232
Memory Storage: More than 10,000 measurements
Temperature: Operating: –10°C to 60°C (14ºF to 140ºF), Storage: –20°C to 70°C (-4ºF to 158ºF)
4080A-05014: X Leads – 5m (16 ft.), Qty. 5
4080A-05001: Safety Ground Lead – 10m (32 ft.)
4080A-31001: Safety Switch – 2m (6.5 ft.)
4080A-05000: H Lead Extension – 5m (16 ft.), Qty. 1
4080A-05003: H Lead Adapter
4080A-05009: X Lead Clip Adapters, Qty. 5
2021A-05009: Power Cord – 7.62m (25 ft.)
4080X-18001: Paper Refill for Printer – 5 rolls
1004A-27003: External USB Drive
2040A-08003: Touch Screen Stylus
1003A-37001: A-B USB Cable 3m (10 ft.)
2021X-07002: Spare Fuse Set, Fast-Acting 16A, Qty. 5
2040A-03004: Cable Bag with Shoulder Strap
4080A-02001: Instruction Manual
4080X-10001: Certificate of Accuracy
CT-T1选件
4080N-05001: H Lead Extensions – 5m (16 ft.)
Custom Clips
4080N-15001: Annual Warranty Extension
