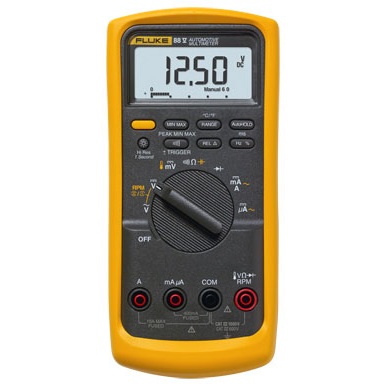

Fluke88V数字万用表
Fluke 88V是 福禄克 88系列的换代产品。新型的Fluke88V汽车诊断万用表进一步提高了测量功能与排障功能即准确度，可以完美地解决传统汽车与混和动力汽车的更多故障。 Fluke88V的工作方式非常类似于88系列，但是 88V 解决问题的功能更强大、更安全、便利，并且还具有更强的防碰撞功能。 特点 ： 0.1 % dc accuracy. Current measurements up to 10 A, 20 A for up to 30 seconds. Millisecond pulse width measurements for fuel injectors. Optional magnetic hanger allows meter to attach to the vehicle and free your......
产品描述
Fluke 88V是福禄克88系列的换代产品。新型的Fluke88V汽车诊断万用表进一步提高了测量功能与排障功能即准确度，可以完美地解决传统汽车与混和动力汽车的更多故障。 Fluke88V的工作方式非常类似于88系列，但是88V解决问题的功能更强大、更安全、便利，并且还具有更强的防碰撞功能。
特点：
- 0.1 % dc accuracy.
- Current measurements up to 10 A, 20 A for up to 30 seconds.
- Millisecond pulse width measurements for fuel injectors.
- Optional magnetic hanger allows meter to attach to the vehicle and free your hands for other tasks.
- Min/Max/Average recording with Min/Max Alert to capture variations automatically.
- Peak Min/Max to record transients as fast as 250 μs.
- Relative mode to remove test lead resistance from low ohms measurements.
- Auto and manual ranging for maximum flexibility.
- Autohold™ to capture stable readings with only one touch of the leads.
- Large display digits and two-level bright white backlight for increased visibility.
- Analog bargraph to track changing or unstable signals.
- Input Alert provides audible warning against wrong use of input jacks.
- Access door for fast battery changes without opening up the case.
- “Classic design that fits your hand with new removable holster, built-in test lead and probe storage.
- 10 meg ohm input impedance won’t damage computer circuits.
- Limited lifetime warranty.
技术指标：
| 技术指标 | |||||||||
| 直流电压 |
|
||||||||
| 交流电压 |
|
||||||||
| 直流电流 |
|
||||||||
| 交流电流 |
|
||||||||
| 电阻 |
|
||||||||
| 电容 |
|
||||||||
| 频率 |
|
||||||||
| 占空比 |
|
||||||||
| 温度测量（不含探头） |
|
||||||||
| 80BK温度探头 |
|
||||||||
| 电导率 |
|
||||||||
| 工作范围 |
|
||||||||
| 尺寸及重量 |
|
||||||||
型号与配件：
| 型号名称 | 描述 | |
| Fluke 88V |
汽车数字多用表包括:
|
| 机套和挂件 | |
| C550 | 工具包 |
| C800 | 仪表和附件箱 |
| CAMO-C25 | 迷彩便携包 |
| C1600 | 带轮的万用表和附件仪器箱 |
| C25 | 用于数字万用表的大软包 |
| 汽车测试附件 | |
| BP880 | BP880 BNC to Female Double Stacking Banana Plug |
| RPM80 | RPM80 感应式采集/外部触发器 |
| TL82 | TL82 汽车探针-管套适配器组 |
| TLK281 | TLK281 SureGrip™ 汽车测试线套件 |
| TLK282 | TLK282 SureGrip™ 高级汽车测试线套件 |
| 照明灯 | |
| L210 | 探头灯套件 |
| 电流钳 | |
| 80i-110s | 交/直流电流钳 |
| i1010 | 交/直流电流钳 |
| 压力 | |
| PV350 | 压力真空模块 |
| 温度 | |
| 80AK-A | 热电偶适配器 |
| 80PK-22 | SureGrip 浸入式温度探头 |
| 80PK-25 | SureGrip 刺穿式温度探头 |
| 80PK-3A | 表面探头 |
