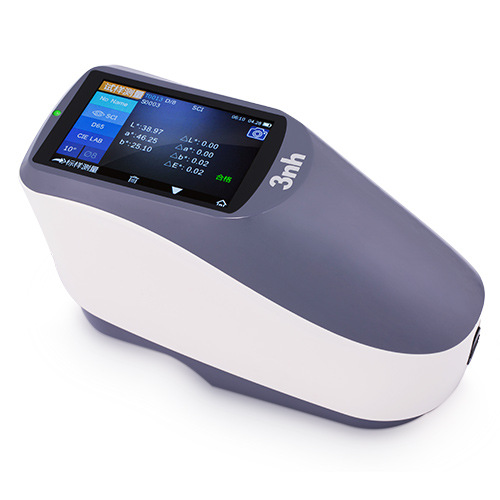

3nh YS3010经济型光栅分光测色仪
YS3010经济型光栅分光测色仪，文章来源于3nh三恩时测色仪。随着现代工业的发展，塑料制品已经深入到人们生活的各个角落。塑料制品的色彩和质量不仅直接影响到产品的美观和舒适度，更是反映产品品质的重要指标。为了精确控制塑料制品的色差，提高产品质量，分光测色仪YS3010在塑料制品行业得到了广泛应用。
YS3010 economic grating spectrophotometric colorimeter, article from 3nh. with the development of modern industry, plastic products have penetrated into all corners of people's lives. The color and quality of plastic products not only directly affects the aesthetics and comfort of the product, but also reflects the quality of the product is an important indicator. In order to accurately control the color difference of plastic products and improve product quality, spectrophotometric colorimeter YS3010 has been widely used in the plastic products industry.
YS3010是3nh公司独立开发的完全拥有自主知识产权的国产光栅分光测色仪其性价比高、测量精度高、较大的存储空间,可满足大部分客户需求，该仪器在各类产品的色差品质管控方面有广泛应用,配有高端颜色管理软件,连接电脑使用，实现更多功能扩展。
YS3010 is 3nh company independently developed completely with independent intellectual property rights of the domestic grating spectrophotometric colorimeter its cost-effective, high measurement accuracy, large storage space, to meet the needs of most customers, the instrument has a wide range of applications in all types of products in the color difference between the quality control, with high-end color management software, connected to a computer to use, to achieve more functionality to expand.
凹面光棚分光|采用LED光源|摄像头取景|支持电脑连接强大功能拓展
YS3010 economic grating spectrophotometric colorimeter, article from 3nh. with the development of modern industry, plastic products have penetrated into all corners of people's lives. The color and quality of plastic products not only directly affects the aesthetics and comfort of the product, but also reflects the quality of the product is an important indicator. In order to accurately control the color difference of plastic products and improve product quality, spectrophotometric colorimeter YS3010 has been widely used in the plastic products industry.
YS3010 is 3nh company independently developed completely with independent intellectual property rights of the domestic grating spectrophotometric colorimeter its cost-effective, high measurement accuracy, large storage space, to meet the needs of most customers, the instrument has a wide range of applications in all types of products in the color difference between the quality control, with high-end color management software, connected to a computer to use, to achieve more functionality to expand.
产品特点 Product Features
1、D/8几何光学结构，符合CIE No.15，GB/T3978,GB2893,GB/T18833,ISO7724/1,ASTM E1164,DIN5033 Teil7；D/8 geometric optical structure, in line with CIE No.15, GB/T3978,GB2893,GB/T18833,ISO7724/1,ASTM E1164,DIN5033 Teil7；
2、采用高寿命低功耗的组合LED光源；Adopt high life and low power consumption combination LED light source；
3、单一口径：Φ8/Φ10mm口径，同时测量SCI、SCE；Single caliber: Φ8/Φ10mm caliber, measure SCI, SCE at the same time；
4、测量样品光谱,Lab数据精准，可用于配色和颜色传递；Measuring the sample spectrum, Lab data is accurate, can be used for color matching and color transfer;
5、电子硬件配置高：3.5英寸TFT真彩屏,电容触摸屏,凹面光栅，256像元双阵列CMOS探测器等；High electronic hardware configuration: 3.5-inch TFT true color screen, capacitive touch screen, concave grating, 256 image element dual-array CMOS detector and so on;
6、两种标准观察者角度，多种光源模式，多种表色系，符合多种标准的色度指标，满足各种客户对颜色测量的需求；two standard observer angle, a variety of light source modes, a variety of table color system, in line with a variety of standard chromaticity indicators, to meet the needs of a variety of customers on the color measurement;
7、耐脏、稳定、标准高反射率白板；dirt-resistant, stable, standard high-reflectivity whiteboard;
8、大容量存储空间，可存储20000条测试数据；large capacity storage space, can store 20000 test data
9、摄像头取景定位；Camera framing and positioning.

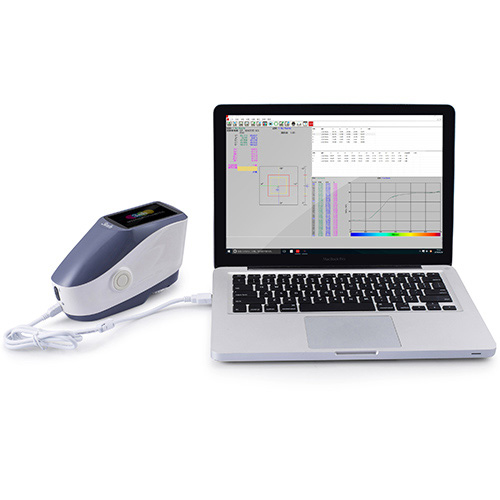

10、PC端软件有功能强大的功能扩展；PC terminal software has powerful function extension;
应用行业 APPLICATIONINDUSTRY
光栅分光仪可轻松实现颜色的准确传递,也可做为配色系统的检测设备。在塑胶电子、油漆油墨、纺织服装印染、印刷纸品、汽车、医疗、化妆品和食品等行业,在科研机构、实验室领域均有广泛应用。
The grating spectrometer can easily realize the accurate transmission of color, and can also be used as the testing equipment of color matching system. In the plastic and electronic, paint and ink, textile and garment printing and dyeing, printing and paper, automotive, medical, cosmetics and food industries, in scientific research institutions, laboratories are widely used.
The grating spectrometer can easily realize the accurate transmission of color, and can also be used as the testing equipment of color matching system. In the plastic and electronic, paint and ink, textile and garment printing and dyeing, printing and paper, automotive, medical, cosmetics and food industries, in scientific research institutions, laboratories are widely used.
凹面光棚分光|采用LED光源|摄像头取景|支持电脑连接强大功能拓展
|

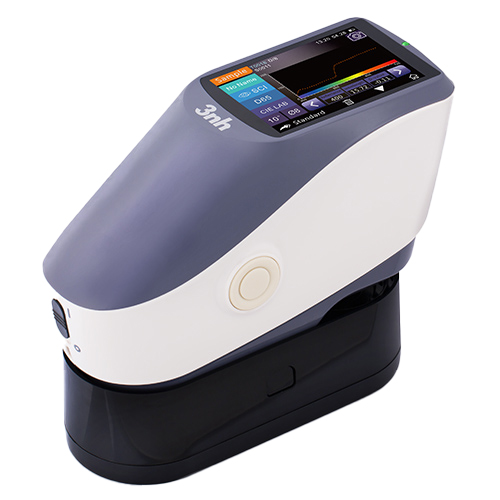

产品型号：YS3010经济型光栅分光测色仪
Model No.: YS3010 Economy Grating Spectrophotometer
照明方式：D/8(漫射照明,8°方向接收)
Illumination mode: D/8 (diffuse illumination, 8°direction receiving)
积分球尺寸：Φ48mm
Integrating sphere size: Φ48mm
照明光源：组合LED光源
Illumination source: Combined LED light source
分光方式：凹面光栅分光
Spectroscopic mode: concave grating spectroscopy
感应器：256像元双阵列CMOS图像感应器测量波长范围：400~700nm
Sensor: 256 pixels dual-array CMOS image sensor Measurement wavelength range: 400~700nm
波长间隔：10nm
Wavelength interval: 10nm
半带宽：10nm
Half bandwidth: 10nm
反射率测定范围：0~200%
Reflectance Measurement Range: 0~200
测量口径：单一口径：MAV：Φ8mm/Φ10mm
Measuring aperture: Single aperture: MAV: Φ8mm/Φ10mm
含光方式：同时测试SCI/SCE
Light-containing mode: Simultaneous testing SCI/SCE
颜色空间：CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB
Color space：CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB
色差公式：ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2：1),ΔE*cmc(1：1)ΔE*00,ΔE(Hunter)
Color difference formula: ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1)ΔE*00,ΔE(Hunter)
其它色度指标：WI(ASTM E33,CIE/ISO,AATCC,Hunter),YI(ASTM D1925,ASTM 313),同色异谱指数MI,粘色牢度,变色牢度,力份,遮盖度,8度光泽度
Other colorimetric indexes: WI(ASTM E33, CIE/ISO, AATCC, Hunter), YI(ASTM D1925, ASTM 313), homogeneous index MI, adhesion fastness, color fastness to color change, power, coverage, 8 degrees gloss
观察者角度：2°/10°
Viewer angle: 2°/10°
观测光源：
Observation light source： D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)
显示：光谱图/数据,样品色度值,色差值/图,合格/不合格结果,颜色偏向
Display: Spectral graph/data, sample chromaticity value, color difference value/graph, pass/fail result, color bias
测量时间：约1.5s(同时测试SCI/SCE约3.2s)
Measurement time: approx. 1.5s (approx. 3.2s for simultaneous SCI/SCE testing)
重复性；分光反射率：MAV/SCI标准偏差0.1%以内(400~700nm：02%以内）
Repeatability; Spectral reflectance: within 0.1% of MAV/SCI standard deviation (400~700nm: within 02%)
色度值：MAV/SCIΔE*ab 005以内(预热后,以间隔5s测量白板30次平均值)
Chromaticity value: MAV/SCI ΔE*ab 005 or less (after warming up, measure the average value of 30 times on the white board with 5s interval)
台间差：MAV/SCIΔE*ab 0.2以内(BCRA系列II 12块色板测量平均值)
Interstage difference: MAV/SCIΔE*ab within 0.2 (average of BCRA Series II 12 color plates)
测量方式：单次测量平均测量(2~99次)
Measurement method: Single measurement average (2~99 times)
定位方式：显示屏摄像头取景定位
Positioning method: display camera framing positioning
尺寸：长X宽X高=184X77X105mm重量：约600g
Size: LXWXH = 184X77X105mm Weight: about 600g
电池电量：鲤电池8小时内5000次
Battery power: carp battery 8 hours 5000 times
照明光源寿命：5年大于300万次
Illumination light source life: 5 years more than 3 million times
测量显示屏：TFT真彩3.5inch,电容触摸屏
Measurement display: TFT true color 3.5inch, capacitive touch screen 接口：USB Interface: USB
存储数据：标样800条,试样20000条(一条数据可同时包括SCI/SCE)
Storage data: 800 standard samples, specimens 20000 (a data can be included at the same time SCI / SCE)
语言：简体中文,English
Language: Simplified Chinese, English
操作温度范围：0~40°C，0~85%RH(无凝露)海拔：低于2000m
Operating temperature range: 0~40°C, 0~85%RH (no condensation) Altitude: below 2000m
存储温度范围：-20~50°C,0~85%RH(无凝露)
Storage temperature range: -20~50°C,0~85%RH(no condensation)
标准附件：电源适配器、数据线、内置锂电池、说明书、品质管理软件(官网下载)、黑白校正盒、保护盖
Standard accessories: power adapter, data cable, built-in lithium battery, manual, quality management software (download from the official website), black and white calibration box, protective cover
可选附件：微型打印机粉末测试盒、多功能测试组件
Optional accessories: micro-printer powder test box, multifunctional test kit |
