同惠新推出宽范围可编程线性直流电源TH6314

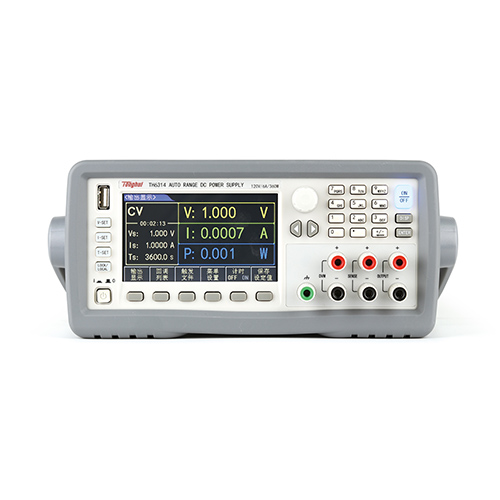

TH6314宽范围可编程线性直流电源额定输出0-120V/0-6A (360W)
TH6314宽范围可编程线性直流电源内可以满足大电压小电流输出或者小电压大电流输出供电
TH6314宽范围可编程线性直流电源系列型号
参数 |
|||||||||||
额定输出 |
电压 |
20V |
30V |
60V |
120V |
30V |
60V |
120V |
60V |
120V |
|
电流 |
30A |
20A |
10A |
5A |
30A |
15A |
6A |
25A |
10A |
||
功率 |
200W |
200W |
200W |
200W |
360W |
360W |
360W |
600W |
600W |
||
负载调节率≤ |
电压 |
0.01%+20mV |
0.01%+25mV |
0.01%+10mV |
0.01%+20mV |
0.01%+20mV |
0.01%+30mV |
0.01%+8mV |
0.01%+30mV |
0.01%+25mV |
|
电流 |
0.01%+20mA |
0.01%+ 15mA |
0.05%+4mA |
0.05%+6mA |
0.01%+20mA |
0.05%+6mA |
0.01%+6mA |
0.1%+10mA |
0.5%+10mA |
||
电源调节率≤ |
电压 |
0.01%+20mV |
0.01%+ 20mV |
0.01%+10mV |
0.01%+20mV |
0.01%+20mV |
0.01%+30mV |
0.01%+8mV |
0.01%+30mV |
0.01%+25mV |
|
电流 |
0.01%+20mA |
0.01%+ 15mA |
0.05%+4mA |
0.05%+6mA |
0.01%+20mA |
0.05%+6mA |
0.01%+6mA |
0.1%+10mA |
0.5%+10mA |
||
设定值解析度 |
电压 |
1mV(<100V), 10mV(>100V) |
|||||||||
电流 |
0.1mA(<10A), 1mA(>10A) |
||||||||||
回读值解析度 |
电压 |
1mV(<100V), 10mV(>100V) |
|||||||||
电流 |
0.1mA(<10A), 1mA(>10A) |
||||||||||
设定精度12月(25°C±5°C)≤ |
电压 |
0.05%+10mV |
0.05%+10mV |
0.03%+5mV |
0.04%+30mV |
0.05%+10mV |
0.03%+5mV |
0.05%+15mV |
0.03%+5mV |
0.03%+20mV |
|
电流 |
0.1%+30mA |
0.1%+20mA |
0.1%+10mA |
0.1%+10mA |
0.1%+30mA |
0.1%+15mA |
0.1%+20mA |
0.1%+25mA |
0.1%+25mA |
||
回读精度12月(25°C±5°C)≤ |
电压 |
0.05%+10mV |
0.05%+10mV |
0.03%+5mV |
0.04%+30mV |
0.05%+10mV |
0.03%+5mV |
0.05%+15mV |
0.03%+5mV |
0.03%+20mV |
|
电流 |
0.1%+30mA |
0.1%+20mA |
0.1%+10mA |
0.1%+10mA |
0.1%+30mA |
0.1%+15mA |
0.1%+20mA |
0.1%+25mA |
0.1%+25mA |
||
纹波和噪声(20Hz20MHz)≤ |
差模电压 |
≤15mVpp |
≤15mVpp |
≤8mVp-p |
≤30mVp-p |
≤15mVpp |
≤15mVp-p |
≤20mVpp |
≤20mVp-p |
≤50mVp-p |
|
差模电流 |
≤10mArms |
≤10mArms |
≤6mArms |
≤6mArms |
≤12mArms |
≤8mArms |
≤12mArms |
≤15mArms |
≤15mArms |
||
上升时间≤ |
10%-90% |
≤100mS |
≤100mS |
≤150mS |
≤200mS |
≤100mS |
≤200mS |
≤150mS |
≤150mS |
≤150mS |
|
下降时间≤ |
90%-10% |
≤2S |
≤2S |
≤2S |
≤3.5S |
≤2S |
≤2S |
≤3.5S |
≤2S |
≤3.5S |
|
DVM |
显示精度 |
0.05%+10mV |
0.05%+10mV |
0.03%+5mV |
0.04%+30mV |
0.05%+10mV |
0.03%+5mV |
0.05%+15mV |
0.03%+5mV |
0.03%+20mV |
|
显示分辨率 |
1mV |
||||||||||
输入电压范围 |
20V |
30V |
60V |
120V |
30V |
60V |
120V |
60V |
120V |
||
存储 |
10组触发输出,每组100个步骤,100组设定记忆 |
||||||||||
注:当测试端输出电流大于10A时,不能使用带香蕉插头的测试线测试,请使用带Y型或O型冷接线端子的测试线进行测试;也可以选用机箱后面板测试端进行测试。 |
标配 | |||||
配件名称 | 型号 | ||||
两端测试线 | TH26004C |
选配 | |||||
配件名称 | 型号 | ||||
大电流测试线缆 | TH26035D | ||||
大电流测试线缆 | TH26035E |
