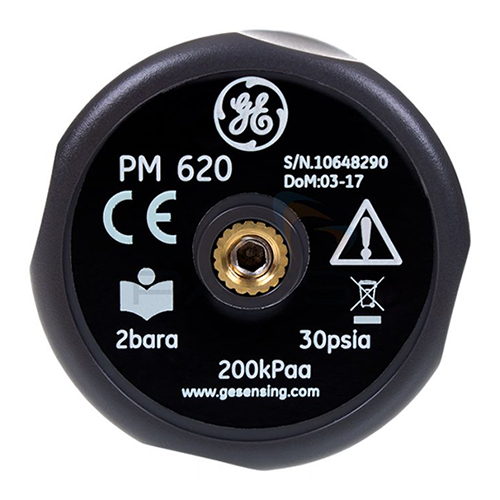

PM620可互换无需设置或校准的压力模块
PM620可互换无需设置或校准的压力模块。PM620是数字输出传感器技术的很新发展， 结合了许多关键创新，可以重新调整兼容设备的压力范围。一个简单的螺纹配合压力校验仪使用即可实现压力和电气连接，无需工具、密封胶带、电缆或插头 ，数字特性允许无需设置或校准即可互换。PM620还提供本质安全版本PM 620-IS，用于危险环境。特点包括：
完全可互换，无需设置或校准
简单的螺丝安装，无需工具即可用手拧紧
范围从 25 mbar到1,000 bar（10 inH2 O到15,000psi），下单前须选择好量程。
精度从 0.005% FS • 安全和危险区域 提供不同的版本可供选择
压力范围从 -14.5到15,000psi
表压或绝压
IS 型号通过 ATEX 和 IEC 认证本质安全
PM620压力模块配合DPI612压力校验仪使用。如下图所示，深圳银飞公司有售。
PM620 - lnterchangeable Pressure Modules
The PM 620 is the latest development in digital output sensor technology incorporating a number of key innovations to allow pressure re-ranging of compatible equipment. A simple screw fit makes both the pressure and electrical connectionswithout the need for tools, sealing tape, cables, or plugs and digital characterization allows interchangeability without set-up or calibration. The PM 620 is also available in an intrinsically safe version, the PM 620-IS, for use in hazardous environments. Features include：
The PM 620 is the latest development in digital output sensor technology incorporating a number of key innovations to allow pressure re-ranging of compatible equipment. A simple screw fit makes both the pressure and electrical connectionswithout the need for tools, sealing tape, cables, or plugs and digital characterization allows interchangeability without set-up or calibration. The PM 620 is also available in an intrinsically safe version, the PM 620-IS, for use in hazardous environments. Features include：
- Fully interchangeable with no need for set-up or calibration
- Simple screw fit - hand tight no tools required
- Ranges from 25 mbar to 1,000 bar (10 inH2 O to 15,000psi)
- Accuracy from 0.005% FS • Safe and Hazardous area Versions available
- Pressure ranges from -14.5 to 15,000psi
- Gauge or absolute pressures
- IS model is ATEX and IEC approved Intrinsically Safe
