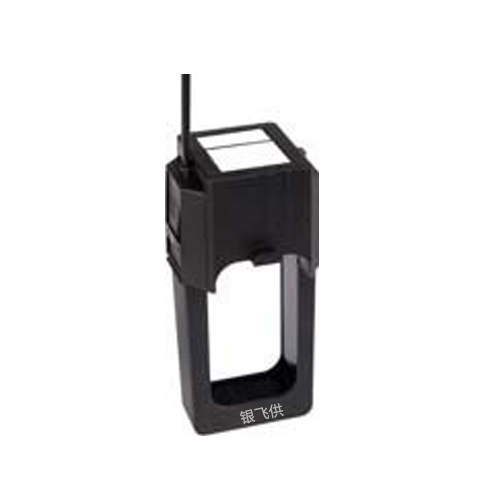

SC50-L开合式电流互感器Dia.2x 2mm
SC50-L开合式电流互感器钳口开口尺寸Dia.2x 2mm。 Cableopening SC50-L:forleadswithamax.dia.2x42mmf.只能用于测量交流电。SC仅适用于安装在受天气保护且干燥的绝缘一次导线上。 SC50-L电流互感器特别适合在受限通道和受限空间使用。可分离的铁芯使变压器更容易安装在电缆或轨道上。当电路难以中断或测量仪器必须轻松快速地重新安装时，SC50-L电流互感器是正确的选择。电流互感器一次引线的安全安装由机械设计保证，并通过清晰的咔嗒声确认。两个防紫外线电缆扎......
产品描述

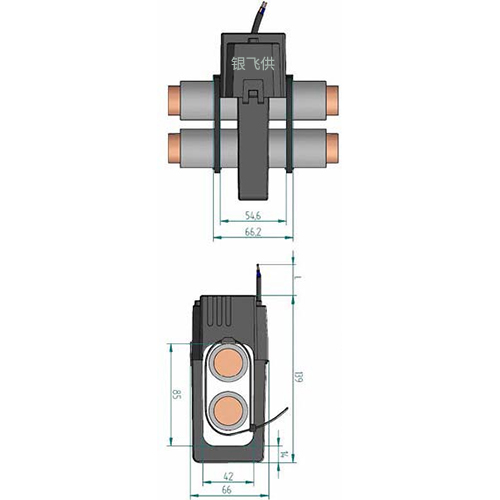

SC50-L开合式电流互感器钳口开口尺寸Dia.2x 2mm。 Cable opening SC50-L: for leads with a max. dia. 2x 42 mmf.只能用于测量交流电。SC仅适用于安装在受天气保护且干燥的绝缘一次导线上。
SC50-L电流互感器特别适合在受限通道和受限空间使用。可分离的铁芯使变压器更容易安装在电缆或轨道上。当电路难以中断或测量仪器必须轻松快速地重新安装时，SC50-L电流互感器是正确的选择。电流互感器一次引线的安全安装由机械设计保证，并通过清晰的咔嗒声确认。两个防紫外线电缆扎带是标准设备的一部分，有助于额外固定变压器。
1) burden at the end of the secondary lead
2) Ambient temperature –10 °C ... +40 °C
SC50-L电流互感器特别适合在受限通道和受限空间使用。可分离的铁芯使变压器更容易安装在电缆或轨道上。当电路难以中断或测量仪器必须轻松快速地重新安装时，SC50-L电流互感器是正确的选择。电流互感器一次引线的安全安装由机械设计保证，并通过清晰的咔嗒声确认。两个防紫外线电缆扎带是标准设备的一部分，有助于额外固定变压器。
| Transmission factor | Class | Burden 1) | Secondary lead | Article number |
| 250/1A | 1 | 0,5 V/A | 5 m, 0.5 mm² | U184A |
| 300/1A | 1 | 0,5 V/A | 5 m, 0.5 mm² | U184B |
| 400/1A | 0,5 | 0,5 V/A | 5 m, 0.5 mm² | U184C |
| 500/1A | 0,5 | 0,5 V/A | 5 m, 0.5 mm² | U184D |
| 600/1A | 0,5 | 0,5 V/A | 5 m, 0.5 mm² | U184E |
| 750/1A | 0,5 | 0,5 V/A | 5 m, 0.5 mm² | U184F |
| 800/1A | 0,5 | 0,5 V/A | 5 m, 0.5 mm² | U184G |
| 1000/1A 2) | 0,5 | 0,5 V/A | 5 m, 0.5 mm² | U184H |
| 300/5A | 1 | 0,5 V/A | 3 m, 1,5 mm² | U584A |
| 400/5A | 1 | 0,5 V/A | 3 m, 1,5 mm² | U584B |
| 500/5A | 1 | 0,5 V/A | 3 m, 1,5 mm² | U584C |
| 600/5A | 0,5 | 0,5 V/A | 3 m, 1,5 mm² | U584D |
| 750/5A | 0,5 | 0,5 V/A | 3 m, 1,5 mm² | U584E |
| 800/5A | 0,5 | 0,5 V/A | 3 m, 1,5 mm² | U584F |
| 1000/5A 2) | 0,5 | 0,5 V/A | 3 m, 1,5 mm² | U584G |
2) Ambient temperature –10 °C ... +40 °C
• Compact, split-core current transformers for primary nominal current from 60 A … 1000 A and secondary nominal current of 1 A or 5 A.
• Very easy and time-saving installation thanks to split-core design.
• Particularly suited for retrofit purposes since the dismantling of primary leads is not necessary
• Allows for retrofitting without interrupting mains power supply
• Compact design allows for use in areas with restricted access and confined space
• Clearly audible click sound confirms proper installation. Addi- tional safety is provided by UV proof cable ties.
• Accuracy class: 0.5, 1 or 3, depending on type
• Very easy and time-saving installation thanks to split-core design.
• Particularly suited for retrofit purposes since the dismantling of primary leads is not necessary
• Allows for retrofitting without interrupting mains power supply
• Compact design allows for use in areas with restricted access and confined space
• Clearly audible click sound confirms proper installation. Addi- tional safety is provided by UV proof cable ties.
• Accuracy class: 0.5, 1 or 3, depending on type
