Complete Pressure Systems
Ready-to Use Calibration Solutions
Pump Systems Designed for Your Specific Requirements
AMETEK offers a variety of solutions forpressure generation and measurement. Our lineof products for pressure generation includes everything from small pneumatic hand pumps to a precision, hydraulic pressure comparator capable of generating up to 15 000 psi / 1000 bar /100 MPa.

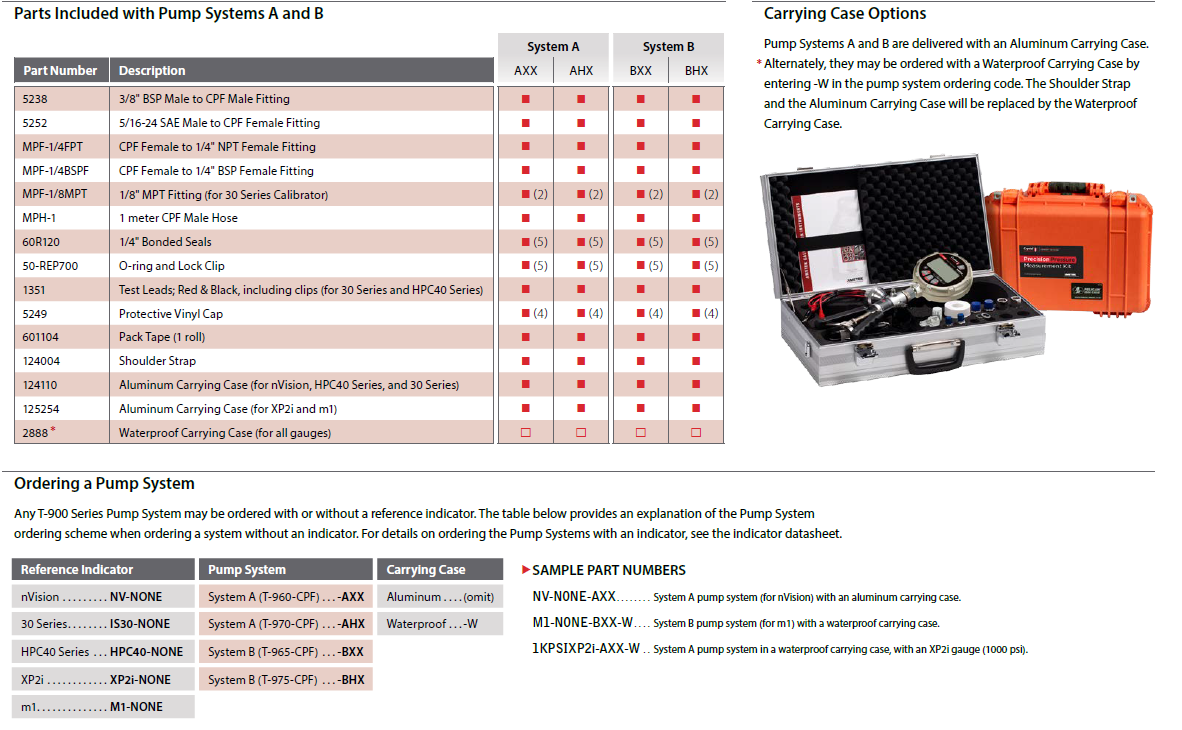

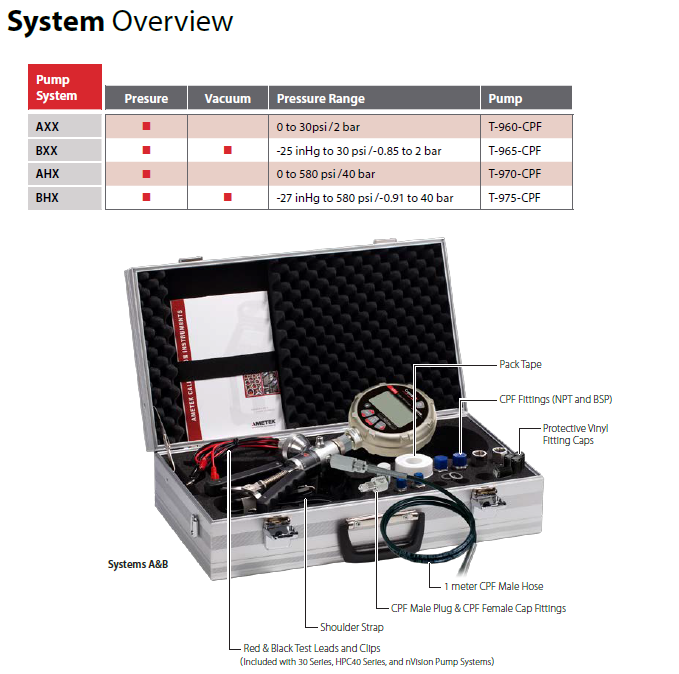

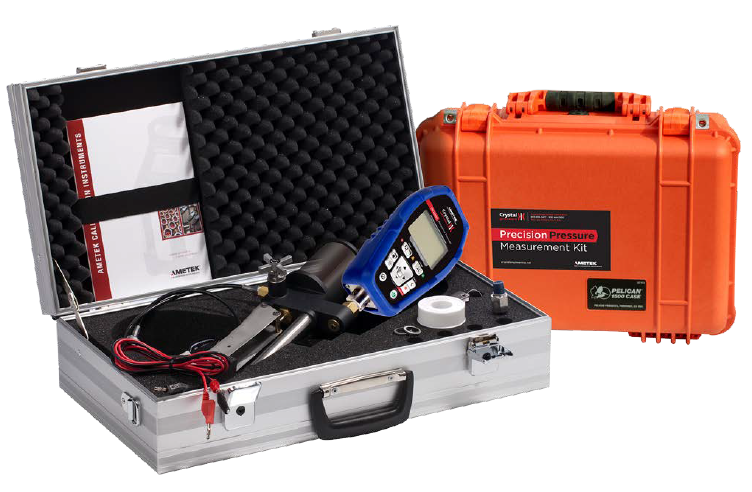

All of our pumps may be ordered as part of a Pump System, complete with a Crystal Reference Indicator and delivered in a sturdy carrying case with custom insert. Key Features & Options Easy to use fine adjustments.CPF Fittings and Hoses.Oil or water compatible.
Wide pressure ranges.
Key Features
Key Features
Lightweight, compact design.Two outlet ports.Adjustable stroke.Generates up to580 psi /40 barand vacuum.
Learn more here.
System C

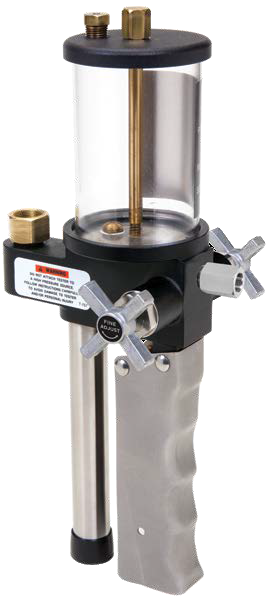

T-600 Series is a lightweight and portable hydraulic hand pump, specially designed for high pressure applications. A fine adjust allows precise control of pressure, while a vent valve provides quick and positive shut-off and pressure release. The pump is compatible with petroleum-based oils or hydraulic
fluids.
Key Features
Two outlet ports.
Large reservoir.
Easy-to-use fine adjust.
Generates up to5000 psi/350 bar.

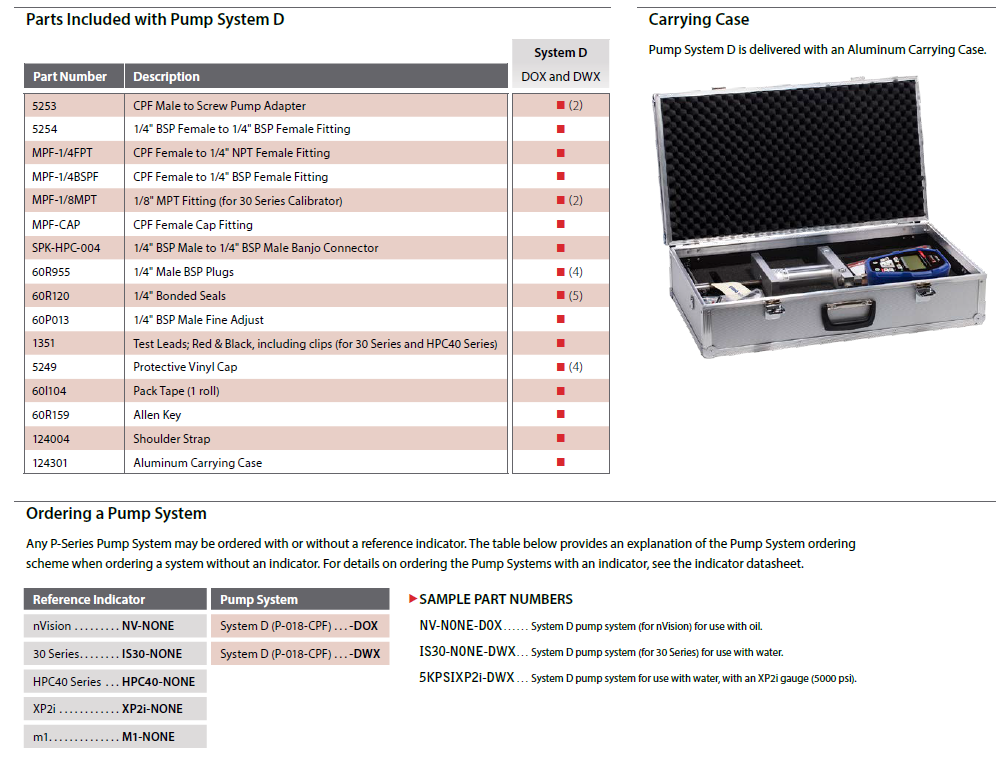

System D
Pump Overview

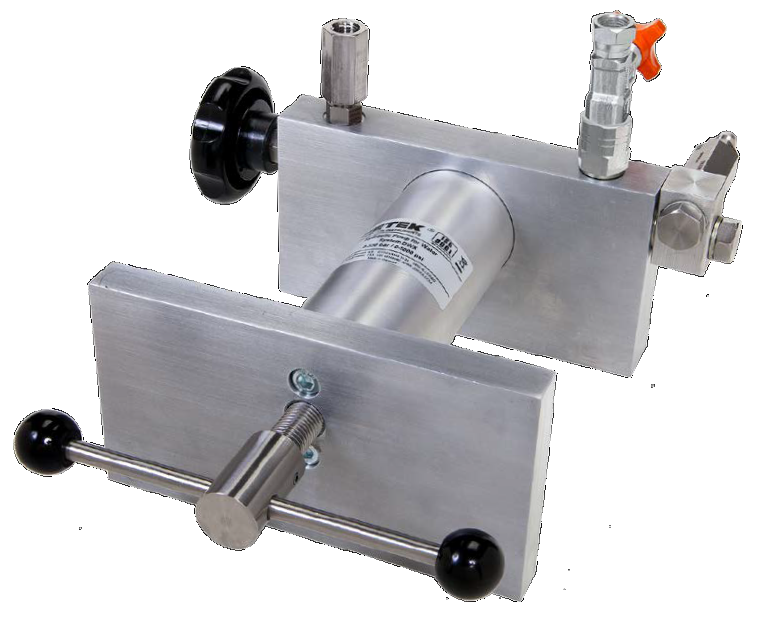

P-018 hydraulic screw pumps produce pressure
with superior control. The adjustable reference pressure
port lets you set your reference gauge at the
best viewing angle.
Key Features
Generates 5000 psi/350 bar.
Easy-to-use fine adjust.
Adjustable reference port.
Compatible with water or oil.
Pump
System Pressure Range Test Media Media Specifics Pump
DOX 0 to 5000 psi / 350 bar Hydraulic Oil Rando HDZ32 P-018-CPF
DWX 0 to 5000 psi / 350 bar Water Distilled Water P-018-CPF
System E
Pump Overview

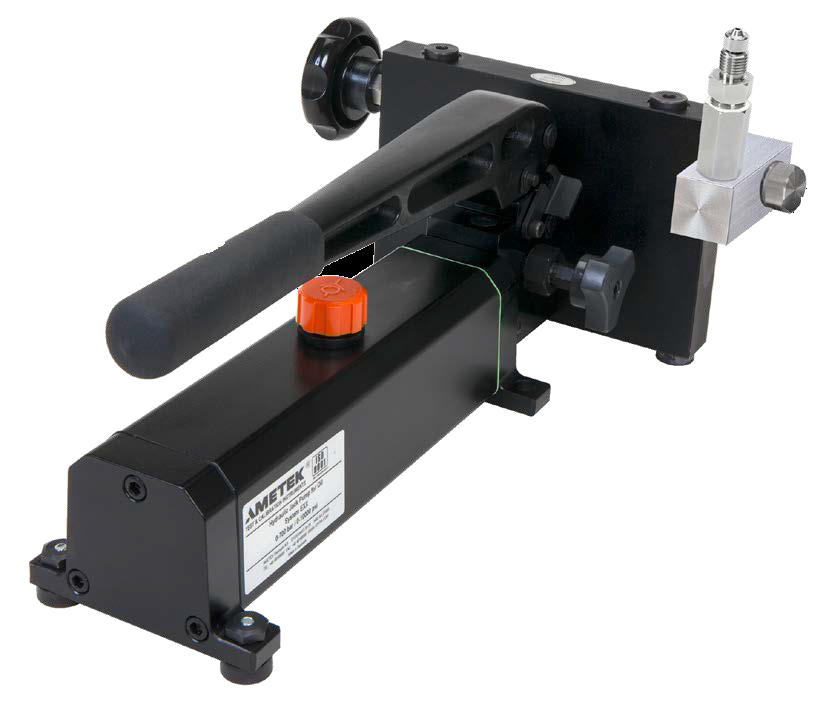

P014 hydraulic jack pumps are designed for high pressure oil applications. Its small size and light
weight makes it a sensible, rugged and portable pressure generating solution.
Key Features
Generates 10 000 psi/ 700 bar.
Small, and light weight.
Easy-to-use fine adjust.
Four pressure output manifold.
System Overview
Pump
System Pressure Range Test Media Media Specifics Pump
EOX 0 to 10 000 psi / 700 bar Hydraulic Oil Rando HDZ32 P014-CPF
System F
Pump Overview
TSeries is a high volume hydraulic comparator
capable of producing pressure up to 15 000 psi / 1000
bar. This unit is ideal for testing and calibrating pressure
gauges, relief valves, and pressure switches.
Key Features
High and Low Volume Settings.
Two outlet ports.
Large fluid capacity.
Fine Adjustment up to 3500 psi / 240 bar.
Compatible with water or oil.
System Overview
Pump
System Pressure Range Test Media Media Specifics Pump
FOV 0 to 15 000 psi / 1000 bar Hydraulic Oil Rando HDZ32 T-1-CPF
FWV 0 to 15 000 psi / 1000 bar Water Distilled Water T-1-CPF
System G

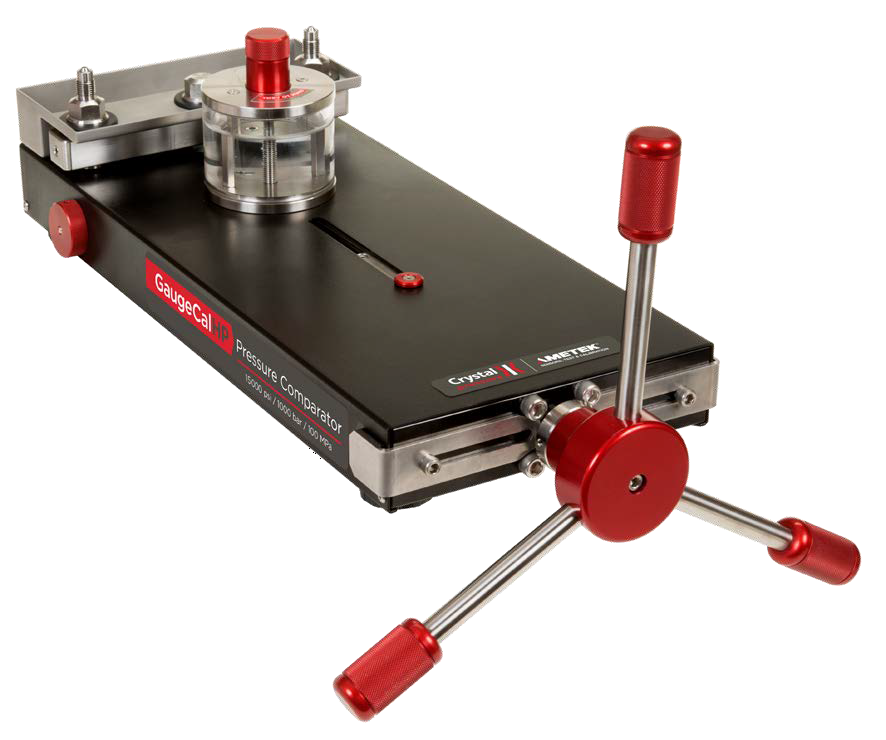

GaugeCalHP is a self-contained, precision hydraulic pressure comparator intended for the calibration of pressure gauges, transmitters, sensors,and safety valves rated up to 15 000 psi / 1000 bar. You may fill the comparator with your choice of water or oil.The GaugeCalHP is much faster than deadweight testers and most automated pressure controllers;and it’s so quick and easy to use,it’s ideal for calibrating those low cost gauges thatare often overlooked for ISO9000 compliance.
System Overview
Pump
System Pressure Range Test Media Media Specifics Pump
GOX 0 to 15 000 psi / 1000 bar Hydraulic Oil Rando HDZ32 GaugeCalHP
GWX 0 to 15 000 psi / 1000 bar Water Distilled Water GaugeCalHP
System H
Pumps Overview

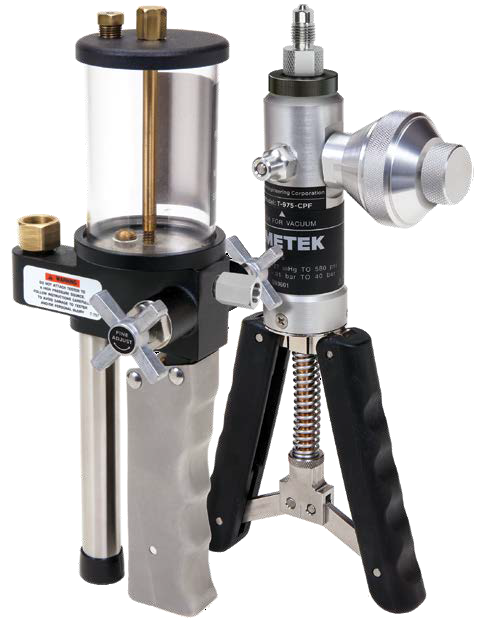

T-900 Series pneumatic pressure pumps feature an extended range fine adjust for precise control of
pressure and vacuum, while a vent valve provides quick and positive shut-off and pressure release. T-600 Series are lightweight, portable hydraulic handpumps, specially designed for high pressure applications.
Key Features
Lightweight, compact design.
Two outlet ports.
Adjustable stroke.
T-900 Seriesgenerates up to580 psi /40 barand vacuum.T-600 Series generates up to 5000 psi/350 bar.
Dear Calibration Professional,
You’re already familiar with the family of high quality AMETEK calibrators and pressure gauges.
Perhaps you even own one.
e same relentless pursuit of perfection invested in our gauges; and that spurred the design of CPF–
the industry’s safest test fi tting line–also drives us to create top-quality pressure generation systems.
We know, just as you do, that the best calibrators are only as good as their support equipment.
Our pumps and Pump Systems deliver exactly what you need for fi eld and lab calibration: reference
indicators, fi ttings, hoses, and accessories, all packed inside sturdy and portable cases.
From rugged and eff ective pumps, to the best fi ttings and hoses, to time-saving software–we’ve thought
of everything.
ese are your tools for pressure calibration; the ones you use over and over, every day. Doesn’t it make
sense to buy the best?
Working for you,
The yinfei Team
