Temperature range: -150~650

Component type: Ptl00

Accuracy: + 0.03 DEG C (-150~320 C)

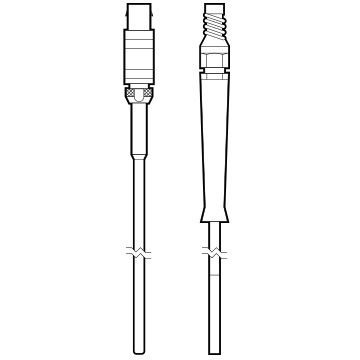

* probe length: 250mm, 350mm, 500mm

Probe diameter: A type 4mm, type 6.35mm B

.90 degree right angle probe 207mm

.4 gold plated LEMO connector

Fast response, low drift, high stability

Stainless steel tube

Traceable calibration certificate

Applicable to DTI-1000, DTI050, ATC-B series, ASC301, AMC901

option

STS050 all

STS050 -50 to 400 DEG C reference temperature sensor

A probe diameter 4 mm (0.16 in)

B probe diameter 6.35 mm (0.25 in)

250 straight probe, 250 mm (9.8 in)

350 straight probe, 350 mm (13.8 in)

500 straight probe, 500 mm (19.7 in)

90190 degree probe, 207 mm (8.1 in) - only for type B

D 1 m cable with Redel connector for DTI050

F traceable certificate -45 to 650 DEG C

H ISO17025 accreditation certificate -45 to 650 DEG C

STS100 all

STS100 -150 to 650 DEG C reference temperature sensor

A probe diameter 4 mm (0.16 in)

B probe diameter 6.35 mm (0.25 in)

250 straight probe, 250 mm (9.8 in)

350 straight probe, 350 mm (13.8 in)

500 straight probe, 500 mm (19.7 in)

90190 degree probe, 207 mm (8.1 in) - only for type B

A 0.5 m (1.6 ft) cable with LEMO / LEMO joint

B 2 m (6.6 ft) cable with LEMO / LEMO joint

C 2 m (6.6 ft) cable with LEMO / Banana joint

D LEMO / Redel junction with 2 m (6.6 ft) cable, suitable for DTI050

HL ISO17025 accreditation certificate -90 to 125 DEG C

F traceable certificate -45 to 650 DEG C

FL traceable certificate -90 to 125 DEG C

G NIST traceable certificate -45 to 650 DEG C

I certificate or coefficient

STS102 all

STS102 -50 to 155 DEG C reference temperature sensor

A probe diameter 4 mm (0.16 in)

030 short sensor at 30 mm (1.18 in)

The integration of Teflon S with LEMO connectors 1 m (3.3 ft) cable

D LEMO / Redel junction with 1 m (3.3 ft) cable, suitable for DTI050

E LEMO / Redel junction with 1 m (3.3 ft) cable, suitable for RTC

H ISO17025 accreditation certificate -45 to 155 DEG C

F traceable certificate -45 to 155 DEG C

G NIST traceable certificate -45 to 155 DEG C

I certificate or coefficient

STS103 all

B probe diameter 3 mm (0.12 in)

A 0.5 m (1.6 ft) cable with LEMO / LEMO joint

B 2 m (6.6 ft) cable with LEMO / LEMO joint

C 2 m (6.6 ft) cable with LEMO / Banana joint

H ISO17025 accreditation certificate -45 to 400 DEG C

F traceable certificate -45 to 400 DEG C

G NIST traceable certificate -45 to 400 DEG C

I certificate or coefficient

STS150 all

A probe diameter 4 mm (0.16 in)

91290 degree probe, suitable for PTC-125 series, -90 to 125 DEG C

91590 degree probe, suitable for PTC-155 series, -25 to 155 DEG C

93590 degree probe, suitable for PTC-350 series, 0 to 350 DEG C

96690 degree probe, suitable for PTC-660 series, 0 to 660 DEG C

E LEMO / Redel junction with 0.5 m (1.6 ft) cable, suitable for RTC/PTC

H ISO17025 accreditation certificate

F traceable certificate

I certificate or coefficient

STS200 all

A probe diameter 4 mm (0.16 in)

B probe diameter 6.35 mm (0.25 in)

91590 degree probe, suitable for RTC-156, 157 series, -65 to 160 DEG C

91790 degree probe, suitable for RTC-159 series, -100 to 160 DEG C

92590 degree probe, suitable for RTC-250 series, 0 to 250 DEG C

97090 degree probe, suitable for RTC-700 series, 0 to 700 DEG C

A 0.5 m (1.6 ft) cable with LEMO / LEMO joint

B 2 m (6.6 ft) cable with LEMO / LEMO joint

C 2 m (6.6 ft) cable with LEMO / Banana joint

D LEMO / Redel junction with 2 m (6.6 ft) cable, suitable for DTI050

E LEMO / Redel junction with 0.5 m (1.6 ft) cable, suitable for RTC/PTC

H ISO17025 accreditation certificate

F traceable Certificate (including)

I certificate or coefficient

parts

60-F100 insulation pipe, 100 mm x is 25 mm

60-F101 insulation pipe, 150 mm x is 25 mm

65-F102 insulation pipe, 200 mm x is 25 mm

65-F103 insulation pipe, 250 mm x is 25 mm

65-F104 insulation pipe, 300 mm x is 25 mm

65-F105 insulation pipe, 350 mm x is 25 mm

65-F106 insulation pipe, 400 mm x is 25 mm

65-F107 insulation pipe, 450 mm x is 25 mm

105173 heat shield Kit (10 pieces)

125068 sensor strut assembly (2 handles, 2 clamps)

125066 sensor handle additional fixture

125067 additional sensor handle

127787 m cable with Redel male connector / Redel female connector (STS-050) 2

122801 m cable with LEMO / LEMO joints of 0.5

65-PT100-LL-CABLE 2 m cable with LEMO / LEMO connector

65-PT100-LB-CABLE 2 m (6.6 ft) cable with LEMO / Banana connector

125522 LEMO / Redel connector with a length of 2 m cable

123859 for the calibration of health sensors complete suite of applications, including: STS102A030SH, re calibration sleeve, manual, 5 tape cable trough undrilling casing, portable box
