福禄克Fluke301D刀锋钳表用于拖拉机驱动桥电气试验
福禄克Fluke301D刀锋钳表用于拖拉机驱动桥电气试验，文章来源于福禄克。
|
窦工 试验工程师
山东某传动技术有限公司
25年工作经验

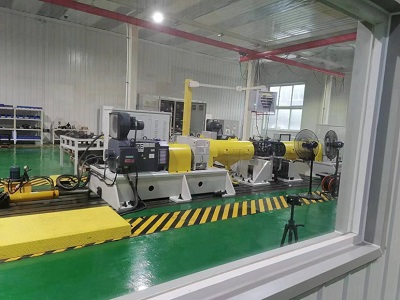

作为试验工程师，窦工主要负责对公司的前驱动桥类产品，进行研发阶段的台架和整机试验。因为驱动桥上配有很多传感器，所以检测这些传感器的信号接入以及输出的电压电流信号值是否在范围内，这些是电气试验测试的一部分。试验测试一部分在大型台架上完成，因为试验台架上会有比如变频器、PLC等设备，有时需要检测接线是否正常，也需要钳表来辅助进行验证或者故障排查的工作。
|
还有一部分测试，需要将驱动桥安装在整车上进行，则需要测试设备更加小巧便携，这时会应用到比如301D这样多功能且轻薄型的钳表。
Other tests, which require the drive axle to be mounted on the vehicle, require more compact and portable test equipment, such as the 301D, which is a versatile and slim clamp meter.
Other tests, which require the drive axle to be mounted on the vehicle, require more compact and portable test equipment, such as the 301D, which is a versatile and slim clamp meter.
福禄克Fluke301D刀锋钳表现场测试体验

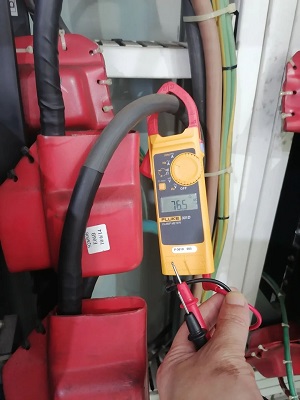

1、使用钳表对数据采集仪进行接线检查
数采是进行整机测试时的关键设备，一般会使用钳表的电阻档位，测接入测试平台线路的接触电阻，确认是否处于正常范围。以此来验证数采已经接线正常。在测试设备完成接线以后，还需要测试其供电电流，来进行检查确认。
use a clamp meter on the data acquisition instrument wiring inspection,Digital acquisition is the key equipment for machine testing, generally use the resistance of the clamp meter gear, measuring access to the test platform line contact resistance, to confirm whether it is in the normal range. To verify that the number of mining has been wired properly.In the test equipment to complete the wiring, but also need to test its power supply current, to check and confirm.

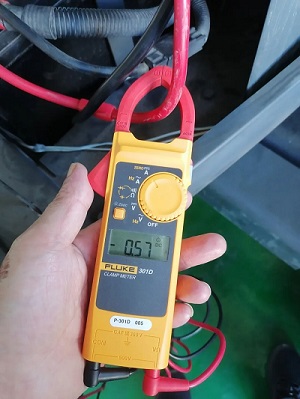

2、整机工作输出电流测试

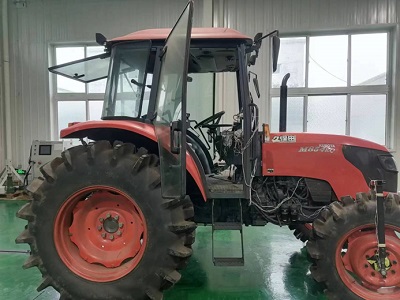

拖拉机整机工作中，打开车灯，空调等所有用电设备，对其蓄电池供电部分电流的输出运行情况进行测试，判断是否处于正常状态。
machine work output current test,Tractor machine work, open the lights, air conditioning and other electrical equipment, its battery power supply part of the current output operation test, to determine whether the normal state.
machine work output current test,Tractor machine work, open the lights, air conditioning and other electrical equipment, its battery power supply part of the current output operation test, to determine whether the normal state.
3、台架设备故障排查
比如变频器出现故障，需要通过检测变频器的信号线的通电情况，判断其供电电流是否处于正常数值。
比如变频器出现故障，需要通过检测变频器的信号线的通电情况，判断其供电电流是否处于正常数值。
bench equipment fault troubleshooting,For example, if the frequency converter is faulty, it is necessary to determine whether its supply current is at a normal value by detecting the energization of the signal line of the frequency converter.

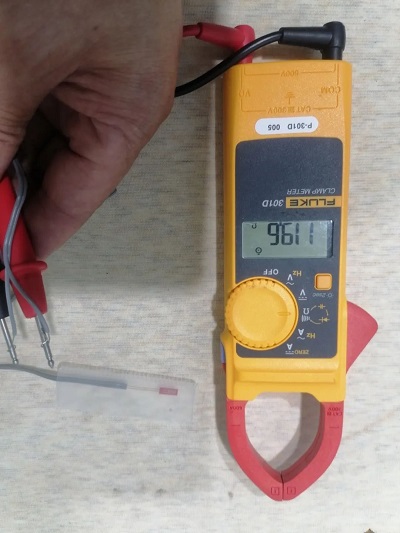

4、传感器电阻测试
有时需要单独对应变片的电阻进行测试，来判断它的好坏，一般正常为120欧姆。
Sensor resistance test, sometimes it is necessary to test the resistance of the strain gauge alone to determine its good or bad, generally normal for 120 ohms.
Sensor resistance test, sometimes it is necessary to test the resistance of the strain gauge alone to determine its good or bad, generally normal for 120 ohms.
|
整体使用体验
相比于之前使用的钳表，福禄克301D更加小巧方便，灵敏度高，测量数值精确，尤其是重复精度更好一些。
Overall experience, compared with the previous clamp meter, Fluke 301D is more compact and convenient, high sensitivity, accurate measurement values, especially better repeatability. |
