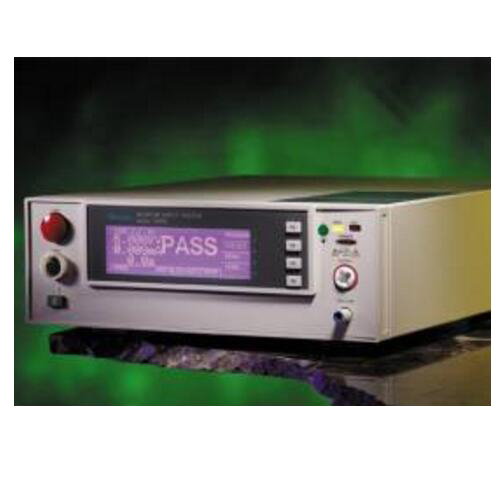

Chroma19053 AC/DC/ IR耐压测试仪器，内建8组高压扫描功能。Chroma19053 AC/DC/ IR耐压测试仪器具备数字显示面板，容易操作的接口便于变压器产品执行耐压、绝缘测试，为很新型耐压测试仪器。

交/直流耐压、绝缘电阻测试三合一机型
可程序输出电压AC 5kV，DC 6kV
可程序电流较大AC 30mA，DC 10mA
绝缘阻抗 50GΩ/1000V DC
内建 8 组高压扫描仪 (19053)
内建 4 组高压扫描仪 (19054)
开/短路侦测功能(OSC)
人体保护功能 (GFI)
电气闪络侦测功能 (Flashover)
可组合 50 个测试步骤及 100 组记忆功能
具 0.4 ms快速切断及 0.2 sec 快速放电
可选购变压器测试治具 (19053)
标准 RS-232 接口
可选购 GPIB 界面

The Chroma Hipot Tester 19050 series provide 3 models for choice.The 19053 which combines both AC and DC Hipot tests and IR measurements with 8HV scan channel capability into a single compact unit. The front panels of the fevers make them easy to operate. Digital display and user friendly control allows test parameters and limits to be set easily without the high voltage activating.

3 in 1 Tester : AC, DC, IR
Programmable output voltage to 5kV AC and 6kV DC
Trip current programmable to 30mA AC and 10mA DC
Insulation resistance to 50GΩ/1000V DC
Built-in 8 channel SCANNER (19053 only)
Built-in 4 channel SCANNER (19054 only)
Open/Short Check (OSC)
Ground Fault Interrupt (GFI)
ARC detection (Flashover)
Storage of 50 Tests Setups with 100 Steps per setup
Optional transformer test fixture (19053 only)
Standard RS-232 Interface
Optional GPIB Interface
