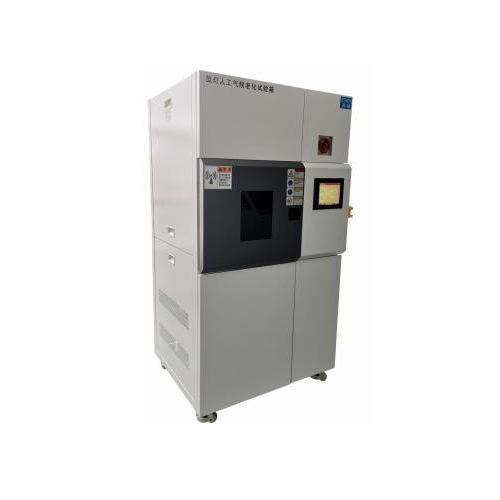

X-II水冷式氙灯老化试验箱
X-II水冷式氙灯老化试验箱 利用水冷氙灯和智能控制系统,对3C电子产品或样品的气候环境进行模拟测试或验证,测试内容为3C电子产品的表面材料及工艺抗太阳光老化测试。 Xenon test machine adopts water-cooled xenon lamp, PLC control system. optical technology is applied to aging testing instruments. The product is suitable for plastic, paint, coating, ink, packaging materials, photochemical and pigments, dyes, stabilizer and additives industry products light aging test。 X-II水冷式氙灯老化试验箱使用说明书......
产品描述
X-II水冷式氙灯老化试验箱利用水冷氙灯和智能控制系统,对3C电子产品或样品的气候环境进行模拟测试或验证,测试内容为3C电子产品的表面材料及工艺抗太阳光老化测试。 Xenon test machine adopts water-cooled xenon lamp, PLC control system. optical technology is applied to aging testing instruments. The product is suitable for plastic, paint, coating, ink, packaging materials, photochemical and pigments, dyes, stabilizer and additives industry products’ light aging test。
X-II水冷式氙灯老化试验箱使用说明书
光辐照度控制范围: 340nm时0.25-1.0ww/㎡;420nm时0.5-1.3w/㎡;300~400nm时20-100W/㎡
光辐照度监控波长: 340nm or 420nmor anyone point between 300-400nm
光辐照度监控波长: 340nm or 420nmor anyone point between 300-400nm
设备符合国标:GB/T1865-1997 ;GB/T16422.2-1999 ;GB/T2423.24-2013;GB/T1189-91
国际标准:ISO 105B-06 ;ISO 105B-02 ;ISO 105B-04;ISO4892-2 ;ISO11341; ATCC16E ;AATCC169
日标:JASOM346-93 GMW3414TM
美 标 :ASTM G155-1 ASTM G155-4 ASTM D4459
适用行业:汽车材料,塑料,包装,油漆与涂层,油墨,颜料、染料、稳定剂及添加剂,光化材料,工业及地表纺织
X-II水冷式氙灯老化试验箱操作说明书
型号 Model No. | X-II | ||
温度范围Temperature range | 工作室温度 Studio temperature | 35℃~85℃ | |
黑板温度 Board temperature | BPT 40℃~110℃ | ||
黑标温度 Board standard temp. | BST 40℃~110℃ | ||
温度波动度 Temperature fluctuation | ±2℃ | ||
相对湿度范围 Relative humidity range |
光照 Illumination | 10~75% | |
黑暗 Dark | 10~100% | ||
相对湿度偏差 Relative humidity deviation | ±3% | ||
光辐照度 Light irradiance | 340nm or 420nm ;or anyone point between 300-400nm | ||
光辐照度偏差 Light irradiance deviation | ±0.01W/㎡ | ||
光辐照度校准功能 Light irradiance calibration function |
自动校准,可通过国家计量部门校验 Irradiance can calibration |
||
总暴露面积 Total exposure area | 2500c㎡ | ||
试样架 The specimen holder | 25pcs(70mm×70mm)or Customized | ||
光照/黑暗循环 Light / dark cycle | 自动控制 Automatic control | ||
不同试验方法和程序 Different test methods and procedures |
自动控制,实时监控并显示 Automatic control, real-time monitoring and display |
||
操作控制系统 Operation control system | PLC+ Touch panel+ Patent irradiation control system | ||
氙灯冷却方式 Xenon lamp cooling method | 水冷 Water cooling | ||
长弧水冷氙灯 Xenon lamp | 4.5KW, life about 2000H | ||
内箱尺寸 Internal size:W*H*D(cm) | 58×59×58 | ||
外箱尺寸 External size:W*H*D(cm) | 100×205×85 | ||
电 源 Supply Power | AC220V/50Hz or AC110V/60Hz |
