Bird SH-60S-TC SignalHawk Handheld Spectrum Analyzer

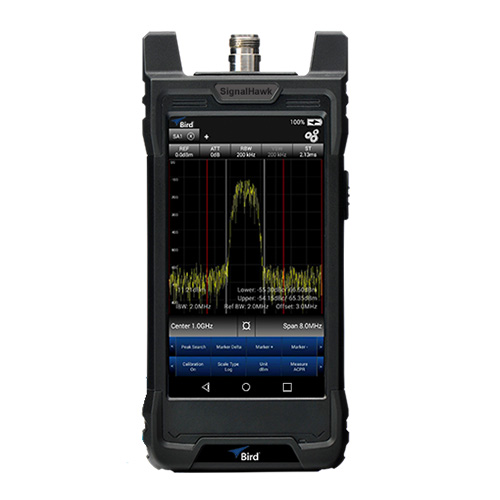

The SignalHawk™ SH-60S-TC is a real-time spectrum monitoring and analysis solution for RF frequency circuits, operating within an extensive range from 9kHz to 6 GHz. Engineered for field engineers, technicians, wireless equipment manufacturers, service providers, contractors, tower erectors, and military field personnel, Bird has combined best-in-class functionality in a compact form factor while featuring an intuitive touchscreen interface.With the SH-60S-TC, users can experience exceptional performance and comprehensive features that are readily available on-the-go. The analyzer enables viewing of signal bursts and transients through the "Zero-span" function with video-level triggering (akin to an oscilloscope display with time on the x-axis) or through a "Waterfall" display, which is a color-coded scrolling chart useful for analyzing intermittent signal sources.
SH-60S-TC SignalHawk Handheld Spectrum Analyzer Key Features
- Spectrogram/Waterfall display provides instant visualization of intermittent power levels.
- FM demodulation facilitates rapid verification of communication signals at specified frequencies.
- Predefined measurements automatically scan and detect spectrum events often missed by other analyzers.
- Display options include trace display, spectrogram display, or both for versatile spectrum analysis.
- User-friendly and highly intuitive menus supported by multi-touch operation.
- Sweeping speeds more than twice as fast as comparable alternatives in the market.
- High-resolution, full-color display for clear visibility indoors or outdoors.
- Robust, rugged construction with weather-resistant capabilities.
- Offers up to 5 hours of continuous battery life.
- Comes bundled with the Bird RF Meter App for seamless interoperability with a wide array of Bird Field sensors.
SH-60S-TC SignalHawk Handheld Spectrum Analyzer Predefined Measurements
- Channel Power
- Adjacent Channel Power Ratio (ACPR)
- Phase Noise
- N dB Down Bandwidth
- Occupied Bandwidth (OBW)
- Field Strength
- FM Demodulation Quality
- CNR Loss (for GNSS Signal Quality assessment)
- Spectrum Masking and Limit Lines
SH-60S-TC SignalHawk Handheld Spectrum Analyzer Product Specifications
| Product Specifications | SH-60S-TC SignalHawk Handheld Spectrum Analyzer |
|---|---|
| Item Number | SH-60S-TC |
| Item Name | SignalHawk |
| Frequency Range | 9 kHz to 6 GHz |
| Span Accuracy | ±1% |
| Aging | ±1 ppm |
| Sweep Time |
1.1 ms to 1600 s Full Span 2.69 ms to 1600 s Settable Zero Span |
| Resolution Bandwidth |
10 Hz to 5 MHz in 1, 2, 3, 5, 10 Steps Accuracy: ≥1 MHz, ±10% (<1 MHz, ±2%) |
| Second Harmonic Distortion | -70 dBc @ 1.6 GHz |
| Third-Order Intercept (TOI) | +15 dBm (–10 dBm tones, 1 MHz apart, Preamp Off, Reference Level –10 dBm) |
| P1dB | +5 dBm (nominal) |
| Phase Noise |
-95 dBc/Hz @ 10 kHz (typical -97 dBc/Hz) -115 dBc/Hz @ 1 MHz (typical -116 dBc/Hz) |
| Measurement Range | DANL to +20 dBm |
| Input Attenuator |
Range: 0 to 30 dB, 1 dB step Uncertainty: ±0.6 dB |
| Max Safe Input Level |
Preamp Off: +30 dBm Preamp -20 dB: 0 dBm Preamp +40 dB: -20 dBm |
| Reference Level Range |
-140 dBm to +20 dBm -190 dBm to +70 dBm (Ref Level Offset: ON) |
| RBW Switching Uncertainty | ±0.3 dB |
| Display Average Noise Level (DANL) |
Preamp Off: 1 GHz, -129 dBm/Hz (typ -132 dBm/Hz) Preamp +20 dB: 1 GHz, -149 dBm/Hz (typ -152 dBm/Hz) Preamp +40 dB: 1 GHz, -168 dBm/Hz (typ -169 dBm/Hz) |
| Residual Responses | -75 dBm |
| Amplitude Accuracy | ±1.5 dB (ATT 0 dB, input signal -5 to -30 dBm) |
| Reference Level Accuracy | ≥ -60 dBm, ±0.8 dB |
| Connectors |
RF In: N (Female) USB: USB Type C Power Interface: Slim Tip, DC 20V |
| Display | 5.5 in, 1280 x 720 pixels |
| Operating System | Android |
| Languages Supported | English, Chinese |
| Battery |
Type: Li-ion Operating Time: 5 hours (typ) Charge Time: 6 hours (typ) |
| Compatibility | See Bird's RF Meter Page for a complete list of compatible sensors |
| Temperature Range |
Operating: 0 to 50 °C Storage: -20 to 70 °C |
| Dimensions | 7.8 in x 3.7 in x 2.4 in (197 mm x 93 mm x 61 mm) |
| Weight | 1.98 lb (0.9 kg) |

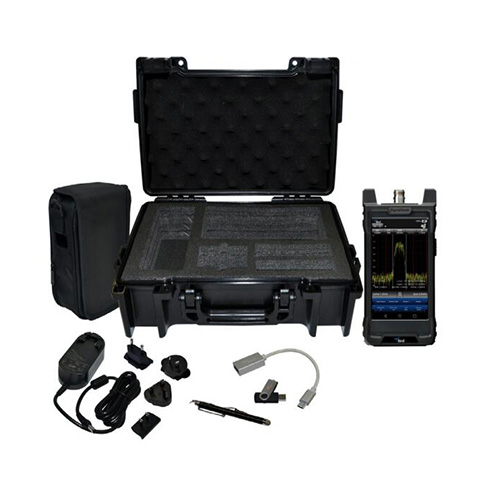

| Standard Accessories |
Hard Carrying Case Soft Carrying Case AC Adapter (12 Vdc Output) Stylus USB Drive USB Adapter Manual and Battery |
