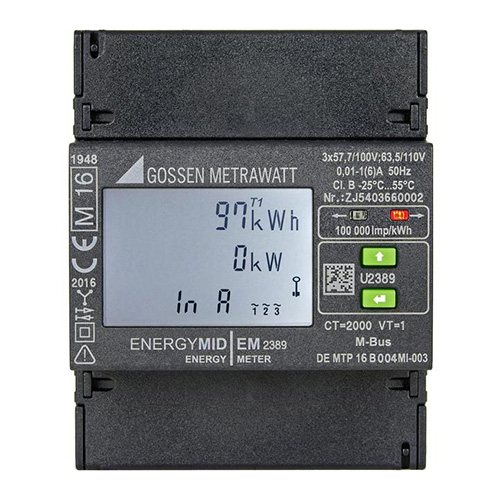

EnergyMIDEM2389高精度电量表
EnergyMIDEM2389高精度电量表 由于接口范围广泛,因此可以很容易地将值传输到数据记录、计费和优化系统以及楼宇自动化和控制技术应用程序中。新一代ENERGYMID电表在用户的电气系统中开辟了全新的透明度。除能源外,多功能型号还可以获取多达33个其他电参数;借助安装工具和对连接错误进行综合诊断,安装变得更加简单快捷;由于EnergyMIDEM2389紧凑的设计,在仪表柜中占据的空间非常小,便于用户安装;通信接口已经集成在外壳中,可以防止外部污染,......
产品描述
EnergyMIDEM2389高精度电量表由于接口范围广泛,因此可以很容易地将值传输到数据记录、计费和优化系统以及楼宇自动化和控制技术应用程序中。新一代ENERGYMID电表在用户的电气系统中开辟了全新的透明度。除能源外,多功能型号还可以获取多达33个其他电参数;借助安装工具和对连接错误进行综合诊断,安装变得更加简单快捷;由于EnergyMIDEM2389紧凑的设计,在仪表柜中占据的空间非常小,便于用户安装;通信接口已经集成在外壳中,可以防止外部污染,能源记录仪的外壳具有防篡改的功能。
EnergyMIDEM2389高精度电量表测量范围
Voltage | ||
See order information | 100 V ¼ 500 V | |
Allowable deviation | + 15% / - 20% | |
Current | Direct Measurement | Transformer |
Iref | 5 A | 1 A |
Starting current | 20 mA | 2 mA |
Imin | 0.1 A | 0.01 A |
Imax | 80 A | 6 A |
Frequency Range | ||
Nominal frequency | 50 Hz | |
Cutoff frequency | 45 Hz ¼ 65 Hz | |
Accuracy | ||
Active energy | Class B per DIN EN 50470-3 | |
Reactive energy | Class 2 per DIN EN 62053-23 |
EnergyMIDEM2389高精度电量表具有集成接口的极其紧凑的外壳(4个标准宽度单元,即72mm),5(80)直接连接或1(6)变压器,可选的计数器读数配置文件,可以根据颜色变化,显示屏上可以直观的看到检测错误,例如相旋转方向,相故障,极性相反或过载的变压器等,多达33个附加测量值,例如无功功率,视在功率,功率因数和频率等。
EnergyMIDEM2389高精度电量表操作说明收的技术特征
适用于工业和商业用途以及要求苛刻的家庭使用的精度等级B
由于根据MID(合格评定程序模块B和D)在工厂进行了初始校准,因此适合于计费
通过四象限测量来测量能源进出口
通过获取电流和电压的THD以及中性线电流IN的廉价电源监控
通过集成总线接口(M-Bus,Modbus RTU,Modbus TCP,LON或BACnet)或通用脉冲输出(2 ea。S0,具有可调的脉冲速率和持续时间,以及可选的电压范围)进行灵活的通信
具有LED背景照明的高对比度3行LCD(42 x 28 mm)
即使转换比可调,也可以进行校准
可选地集成负载配置文件,具有事件记录器,每天96个注册周期,共60天(例如,过电压或更改CT / VT值)
8种价格输入,可以根据未来的能源市场价格结构进行调整:4种价格(标准控制为硬件控制),4种附加总线的价格(由软件控制)
具有防篡改盖和禁用配置

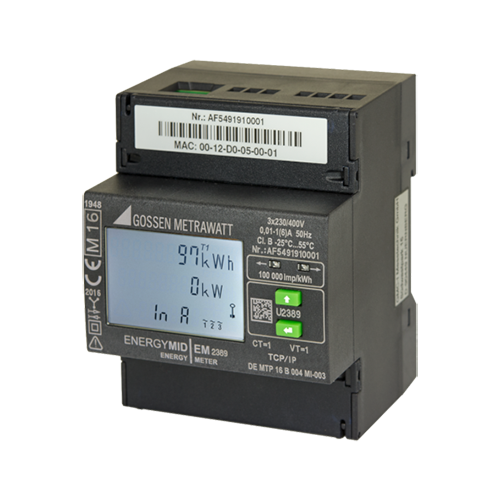

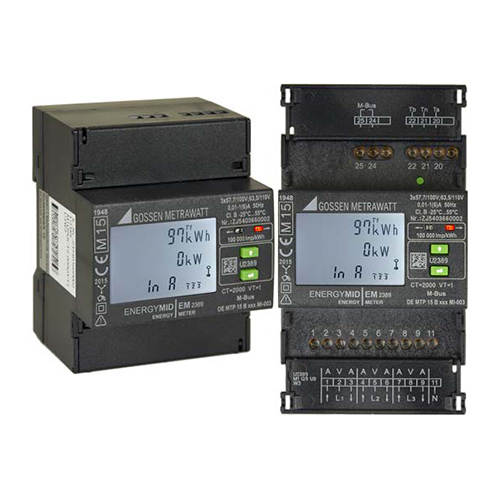

EnergyMIDEM2389高精度电量表三相电能表,配有4线制系统和变压器连接1(6)A,可用于用于在工业,家庭,商业和建筑物管理应用中获取和计费有功电能。在工业和楼宇管理应用中很常用的传输介质是双绞线铜缆,与电气隔离的FTT-10A收发器一起使用。两个导体都可以连接到任何一个电极上,因此安装是反极性保护的。较大传输距离受电缆电气特性和网络拓扑的影响。多功能电能表EnergyMIDEM系列有EM2289/2281/2381/2389/2387,用户可根据需求进行不同的选择。使用的电缆应符合规定的规格,以防止通信过程中的干扰。由于存在反射的可能性,在任何给定的总线段中只能使用一种电缆类型。
Designation | Article Number / Feature | |||||
EM2281 energy meter for 2 wire systems, 230 V, direct 5(80) A | U2281 | |||||
EM2289 energy meter for 4-wire systems, any load, direct 5(80) A | U2289 | |||||
EM2381 energy meter for 2-wire systems, 230 V, transformer 1(6) A (incl. 5(6) A) | U2381 | |||||
EM2387 energy meter for 3-wire systems, any load, transformer 1(6) A (incl. 5(6) A) | U2387 | |||||
EM2389 energy meter for 4-wire systems, any load, transformer 1(6) A (incl. 5(6) A) | U2389 | |||||
Multifunctional Variant / Display | Without | M0 | M0 | M0 | M0 | M0 |
With U, I, P, Q, S, PF, f, THD, IN | M1 | M1 | M1 | M1 | M1 | |
With reactive energy 1 | M2 | M2 | M2 | M2 | M2 | |
With U, I, P, Q, S, PF, f, THD, IN &reactive energy 1 | M3 | M3 | M3 | M3 | M3 | |
Reference voltage Un | 100 ... 110 V L–L | — | — | — | U3 | U3 |
230 V L–N | U5 | — | U5 | — | — | |
400 V L–L | — | U6 | — | U6 | U6 | |
500 V L–L | — | — | — | U7 | — | |
MID approval with declaration of conformity | MID approval | P0 | P0 | P0 | P0 | P0 |
MID approval and calibration certificate | P9 | P9 | P9 | P9 | P9 | |
Pulse output | Without (only with bus connection) | V0 | V0 | V0 | V0 | V0 |
Can be calibrated, 1000 pulses per kWh 2 | S0, standard 3 | V1 | V1 | V1 | V1 | V1 |
Programmable rate: 1 ... 1000 pulses per kWh sec. | S0, programmable 3 | V2 | V2 | — | — | — |
Programmable rate: 1 ... 50,000 pulses per kWh sec. 2 | S0, programmable 3 | — | — | V2 | V2 | V2 |
Can be calibrated, Switching output up to 230 V, 1000 pulses per kWh 2 | 230 V, standard 3 | V3 | V3 | V3 | V3 | V3 |
Switching output up to 230 V, programmable rate 1 … 1000 | 230 V, programmable 3 | V4 | V4 | — | — | — |
Switching output up to 230 V, programmable rate 21 ... 50,000 | 230 V, programmable 3 | — | — | V4 | V4 | V4 |
Can be calibrated, 100 pulses per kWh | S0, 130 ms, 100 pulses per kWh 3 | V7 | V7 | — | — | — |
Can be calibrated, 100 pulses per kWh, depends on CT x VT with Q9 | S0, 130 ms, 100 pulses per kWh 3 | — | — | V7 | V7 | V7 |
Can be calibrated, 1000 pulses per kWh, not with Q9 | S0, 130 ms, 1000 pulses per kWh 3 | — | — | V8 | V8 | V8 |
Can be calibrated, 2000, 5000, 10000 pulse per kWh VTA: entry for S0 100 ... 20,000 (with U6 or U7) VTB: entry for S0 100 ... 50,000 (with U5) VTC: entry for S0 100 ... 50,000 (with U3) |
Customer-specific S0 3 not with Q9 | — | — |
V9 — VTB = — |
V9 VTA = — VTC = |
V9 VTA = — VTC = |
Bus connection | None (only with pulse output) | W0 | W0 | W0 | W0 | W0 |
LON 4 | W1 | W1 | W1 | W1 | W1 | |
M-Bus 4 | W2 | W2 | W2 | W2 | W2 | |
TCP/IP 4 (BACnet 4, Modbus TCP, HTTP) | W4 | W4 | W4 | W4 | W4 | |
Modbus RTU 4 | W7 | W7 | W7 | W7 | W7 | |
Transformer ratios | ||||||
Fixed current/voltage, calibrated main display | CT=VT=1 | — | — | Q0 | Q0 | Q0 |
Programmable current/voltage, calibrated secondary display | Programmable CT, VT (CT x VT £ 100,000) | — | — | Q1 | Q1 | Q1 |
Fixed current/voltage, calibrated main display QCT = 1 ... 10,000, QVT = 1 ... 1000, CT x VT £ 1 million |
CT, VT fixed | — | — |
Q9 QCT = QVT = |
Q9 QCT = QVT = |
Q9 QCT = QVT = |
Counter reading profile | None | Z0 | Z0 | Z0 | Z0 | Z0 |
Included (only with bus connection) | Z1 | Z1 | Z1 | Z1 | Z1 |
