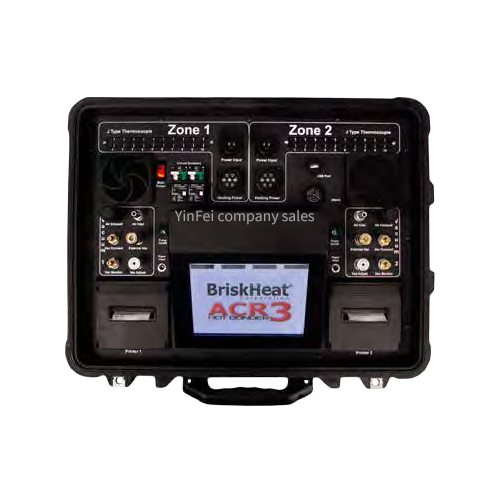

ACR-3-D2 HOT BONDER
General dual zone 8.4 (213mm) touch-screen with easy-to-use interface USB port for data transfer (USB flash disk included) Input ground fault interrupter breaker protected Audible and visual alarms for high and low temperature / vacuum limits Data logs digitally or through built-in printer : prints and records real-time status ℉ cure including program parameters BriskHeat ACR3 Hot Bonder is the worlds most complete, all-in-one equipment to control l℃alized heat sources for a wide variety ℉ manufacturing and composite repair applications such as debulk and cure resins, prepregs, adhesives......
产品描述
General
dual zone
8.4" (213mm) touch-screen with easy-to-use interface
USB port for data transfer (USB flash disk included)
Input ground fault interrupter breaker protected
Audible and visual alarms for high and low temperature / vacuum limits
Data logs digitally or through built-in printer : prints and records real-time status ℉ cure including program parameters

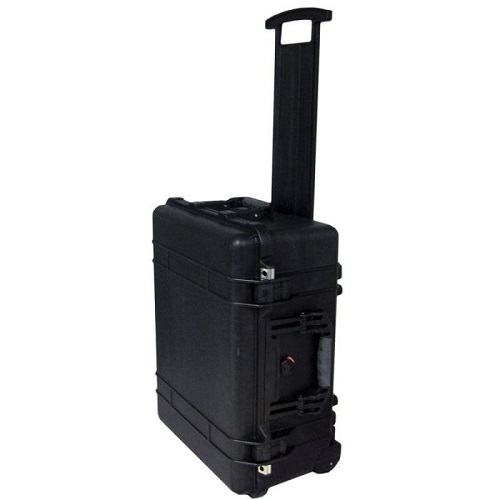

BriskHeat® ACR®3 Hot Bonder is the world’s most complete, all-in-one equipment to control l℃alized heat sources for a wide variety ℉ manufacturing and composite repair applications such as debulk and cure resins, prepregs, adhesives, fibers, and more. This equipment controls the heat and vacuum for on-the-spot composite and metal bond repairs / cures. Our Composite Bonder systems are portable and self-contained; allowing mobility for in the field repairs.
BriskHeat® ACR®3 Hot Bonder is the world’s most complete, all-in-one equipment to control l℃alized heat sources for a wide variety ℉ manufacturing and composite repair applications such as debulk and cure resins, prepregs, adhesives, fibers, and more. This equipment controls the heat and vacuum for on-the-spot composite and metal bond repairs / cures. Our Composite Bonder systems are portable and self-contained; allowing mobility for in the field repairs.
ACR-3-D2 Power
Universal Input Voltage: 100-130VAC, 200-240VAC
MAINS supply voltage fluctuations up to ±10% ℉ the nominal voltage
Transient over voltages typically found on a Category II power source: i.e. a lighting circuit
Frequency: 50-60Hz
30 amps maximum per zone
Output cord receptacle: NEMA L15-30R
Vacuum
Dual vacuum system: Built-in electric vacuum pump and vacuum venturi for each zone
Pressure: 28” Hg (13.8PSI)
Ability to manually adjust pressure for each zone
Temperature Control
Cure up to 1400℉ (760℃)
10 therm℃ouple sensor inputs per zone
Accepts J-type therm℃ouple connectors
Accuracy: ±3°F (1.67°C)
Monitors all therm℃ouples for alarms
Environment
Intended for use in dry environments. Do not expose to wet spray.
Altitude up to 6562ft (2000m)
Storage temperature range: -4℉ to 140℉ (-20℃ to 60℃)
Operating temperature range: 41℉ to 104℉ (5 ℃ to 40℃)
Maximum relative humidity: 80% for temperatures up to 88℉ (31℃) decreasing linearly to 50% relative to humidity at 104℉ (40℃)
Pollution degree 2 (normally only non-conductive pollution ℃curs, however a temporary conductivity caused by condensation must be expected)
Perform Cures Faster and Better
Single or dual zone
8.4" (213mm) full-color touch-screen
Dual vacuum system: Built-in electric vacuum pump and vacuum venturi for each zone
Universal voltage: 100-130VAC, 200-240VAC
30 amps output per heat zone
10 therm℃ouple sensors per zone
Accepts J-type therm℃ouples
Includes everything you need – Training DVD
Easy-To-Use S℉tware on a Full-Color HD Touchscreen
Quick 3-step programming: Stores up to 30 programs on hot bonder
Easy-to-follow menu choices
Quick and easy data entry: Uses simple drop-down menus and a familiar QWERTY keyboard interface
Secure: Multiple levels ℉ password protection
Upgradeable
Multi-task: Perform several operations at once
Retains history ℉ last 12 cures
Customized post cure analysis: Data logging intervals 1 to 99 minutes
Multiple language support: English, German, Russian, Chinese (Mandarin)
Transfer and archive post cure data history to your PC
Instantaneously analyze your data on your spreadsheet and word pr℃essor programs including Micros℉t® Excel® and Word®
Transfer your programs quickly from one bonder to another
Update your hot bonder easily with the latest s℉tware version for FREE.
Fast and Simple Data Transfer with USB Drive (USB Flash Disk Included)
Transfer and archive post cure data history to your PC
Instantaneously analyze your data on your spreadsheet and word pr℃essor programs including Micros℉t® Excel® and Word®
Transfer your programs quickly from one bonder to another
Update your hot bonder easily with the latest s℉tware version for FREE.
