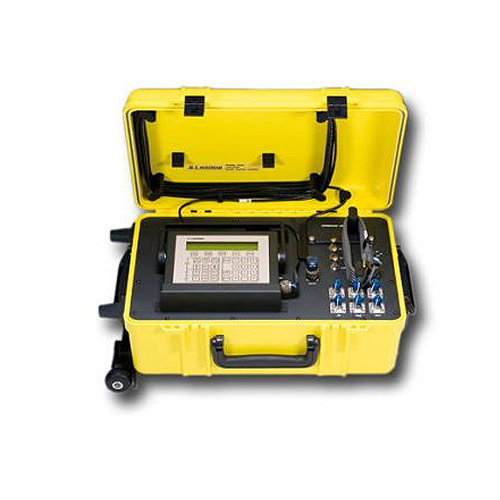

Model 6600-M4 Automated Pitot Static Tester - 3 Outputs (Hi-range)
The 6600-M4 Automated Tester is ideal for use on aircraft with "Smart Probes" capable of measuring AOA using Air Data. The tester has one Static output (Ps1), one Pitot output (Pt) and a third output (Ps2) which can be used to simulate either AOA or AOS. Using the small and light-weight Remote unit a user can operate the tester from the cockpit and test the entire pitot and static system of the aircraft. The tester includes built-in vacuum and pressure pumps and emergency manual bleed-down valves. The high accuracy of this unit meets all RVSM requirements. Also, it requires no maintenance other than to be calibrated only once a year. The use of “Profiles” makes it possible for the operator to run through a test using only a single key on the Remote unit.
Interfaces
RS232 Standard; IEEE-488 & Encoder optional
Dimensions & weights
The 6600-M4 Automated Tester is ideal for use on aircraft with "Smart Probes" capable of measuring AOA using Air Data. The tester has one Static output (Ps1), one Pitot output (Pt) and a third output (Ps2) which can be used to simulate either AOA or AOS. Using the small and light-weight Remote unit a user can operate the tester from the cockpit and test the entire pitot and static system of the aircraft. The tester includes built-in vacuum and pressure pumps and emergency manual bleed-down valves. The high accuracy of this unit meets all RVSM requirements. Also, it requires no maintenance other than to be calibrated only once a year. The use of “Profiles” makes it possible for the operator to run through a test using only a single key on the Remote unit.
Model 6600-M4Specifications
●Ps1 Output
●Pressure function
●range: 0.1 to 42 inHg
●resolution: 0.0001 inHg
●accuracy: 0.002 inHg
●Altitude function
●range: -4000 ft. to 80,000 ft.
●resolution: 1 foot
●accuracy: 2 ft. @ 0 ft;6 ft. ；@ 35,000 ft.；12 ft. @ 50,000 ft.；50 ft. @ 80,000 ft
●Climb function
●range: 0 ft/min to 50,000 ft/min
●resolution: 1 ft/min
●accuracy: 1% of rate of climb
●Displayed units: Feet, meters, inHg, mbar
●Ps2 Output
●Ps2 Output
●Pressure function: Same as for Ps1 Output
●Altitude function: Same as for Ps1 Output
●Climb function: Same as for Ps1 Output
●Airspeed function
●range: 0 to 500 knots
●resolution: 0.1 knots
●accuracy: 0.3 knots @ 50 knots；0.16 knots @ 100 knots；0.05 knots @ 500 knots
●Displayed units: inHg, mbar, Dfin, Dfmb,Feet, meters, knots, kmph
●Pt Output
●Displayed units: inHg, mbar, Dfin, Dfmb,Feet, meters, knots, kmph
●Pt Output
●Pressure function
●range: 0.1 to 100 inHg
●resolution: 0.0001 inHg
●accuracy: 0.003 inHg
90-260 VAC, 47-440 Hz ; 240 VA (350VA with heaters on)
●Airspeed function
●range: 0 to 1000 knots
●resolution: 0.1 knots
●accuracy: 0.5 knots @ 50 knots；0.25 knots @ 100 knots；0.05 knots @ 650 knots；0.01 knots @ 1000 knots
●Mach function
●range: 0.0 to 5.0 Mach
●resolution: 0.001 Mach
●accuracy: 0.001 above 0.2 Mach
●Displayed units: knots, Mach, kmph, mph, EPR,inHg, mbar, Qcin, Qcmb
“Jog” feature
Allows set-point to be increased or decreased in steps of 1 foot or 0.1 knots simply by using arrow keys.
“Profiles” feature
A profile of the standard set-points of an altimeter check or airspeed check can be downloaded from a computer. Such a profile allows the user to operate the unit using a single key. Up to 12 such profiles can be stored in the unit. PC-based software is included.
Pressure & Vacuum system
The tester includes separate pressure and vacuum diaphragm pumps for higher reliability. The pressure system includes a membrane dryer, and a filter to provide clean dry air for the entire system.
Remote unit
The Remote unit is the operator interface for the tester. It is small and light enough to be used in the cockpit. The tester can be turned On and Off from the Remote. All valid parameters, including altitude, climb and airspeed, are clearly displayed simultaneously on a single screen on the Remote.
Manual Vent
The tester includes manual metering valves to enable the system (aircraft) to be manually vented in the event of loss of power.
Power requirement
●Displayed units: knots, Mach, kmph, mph, EPR,inHg, mbar, Qcin, Qcmb
“Jog” feature
Allows set-point to be increased or decreased in steps of 1 foot or 0.1 knots simply by using arrow keys.
“Profiles” feature
A profile of the standard set-points of an altimeter check or airspeed check can be downloaded from a computer. Such a profile allows the user to operate the unit using a single key. Up to 12 such profiles can be stored in the unit. PC-based software is included.
Pressure & Vacuum system
The tester includes separate pressure and vacuum diaphragm pumps for higher reliability. The pressure system includes a membrane dryer, and a filter to provide clean dry air for the entire system.
Remote unit
The Remote unit is the operator interface for the tester. It is small and light enough to be used in the cockpit. The tester can be turned On and Off from the Remote. All valid parameters, including altitude, climb and airspeed, are clearly displayed simultaneously on a single screen on the Remote.
Manual Vent
The tester includes manual metering valves to enable the system (aircraft) to be manually vented in the event of loss of power.
Power requirement
Interfaces
RS232 Standard; IEEE-488 & Encoder optional
Dimensions & weights
Main unit: 22” x 14” x 9” / 46 lbs
Remote unit: 7” x 8” x 2” / 1 lb.
Environmental specs:
Environmental specs:
Operating temp. 0o to 50℃
Storage temp. -25o to 75℃
Humidity: 5 to 100%
