FLUKE福禄克Fluke289数据记录万用表
FLUKE福禄克Fluke289数据记录万用表是一款尖端且卓越的真有效值(True-RMS)数据记录万用表,专为应对工业和专业领域中严苛环境下的精密电气测量及长期性能监控需求而设计。这款高性能万用表不仅具备超凡的测量精准度与广泛的功能覆盖范围,而且独树一帜地集成了先进的数据记录功能,能够有效地帮助用户实时捕捉并深度分析设备的关键电气参数趋势,从而提前预见潜在故障,有力提升设备维护效率及整体运行可靠性。通过该款智能化仪表的运用,工程师和技术人员能够在复杂的操作环境下轻松实现对电气系统的精细化管理,确保系统始终处于优秀的状态,进而降低意外停机风险,节约运维成本,提高生产效能。The Fluke 289 True-RMS Data Logging Multimeter is a high-performance, industrial-grade tool designed for precision electrical measurements and long-term monitoring in demanding environments. It combines exceptional accuracy with versatile functionality, featuring integrated data logging to capture and analyze trends in equipment performance, enabling early detection of potential issues and streamlining maintenance processes. With its True-RMS capability, it provides reliable readings on non-linear loads and offers advanced features like TrendCapture, real-time clock, and wireless connectivity through the Fluke Connect system for remote monitoring and sharing of data. The rugged design and extensive measurement capabilities make the Fluke 289 ideal for professionals dealing with complex electronics, automation systems, power distribution, and electromechanical equipment.
真有效值数字万用表Fluke289开箱标配
- 289 True-RMS 工业记录万用表
- (1 对)TL71 测试线
- AC175 鳄鱼夹
- 6 节 AA 电池(已安装)
- 快速参考指南
Fluke289数据记录万用表基本测量功能
- 直流电压:量程从50.000 mV到1000.0 V,基础精度达0.025%。
- 交流电压:真有效值测量,范围覆盖50.000 mV至1000.0 V,基础精度0.4%。
- 直流电流:量程包括500.00 μA至10.000 A,基础精度为0.05%。
- 交流电流:同样采用真有效值测量技术,范围在500.00 μA至10.000 A之间,基础精度0.6%。
- 温度测量:支持-200.0°C至1350.0°C的宽温度范围,基础精度1.0%(需配合适当的热电偶探头使用)。
- 电阻测量:从50.000 Ω至500.0 MΩ,基础精度0.05%。
- 电容测量:范围1.000 nF至100 mF,基础精度1.0%。
- 频率测量:频率分辨率涵盖99.999 Hz至999.99 kHz,基础精度0.005%。
Fluke289数据记录万用表高级功能及特性
- 数据记录与趋势捕获:内置TrendCapture功能可存储并显示多达10,000个事件和读数,提供高达14倍的局部放大视图以深入分析趋势。
- 可调节记录阈值:允许用户设置百分比变化阈值,当读数达到该阈值时开始新的事件记录。
- 显示屏:配备大型50,000计数、1/4 VGA点阵显示屏,带有白色背光,易于阅读和分析。
- 存储能力:可以存储高达15,000次记录事件,方便离线工作后进行PC下载分析。
- 特殊功能:包含低阻抗电压(LoZ Volts)功能消除幻影电压干扰;具有电机绕组或接触电阻比较所需的50欧姆两终端电阻测试功能,以及针对变频驱动器等高噪声环境的低通滤波器功能。
- 实时时钟:自动对保存的读数添加时间戳。
- 真有效值AC测量:确保非线性信号条件下测量结果准确无误。
- 测量速度:瞬态捕捉速度可达250微秒。

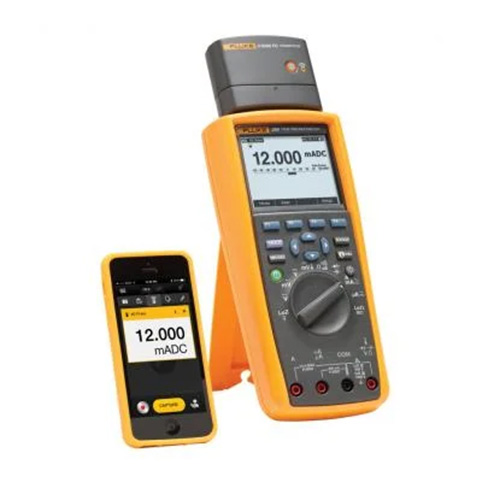

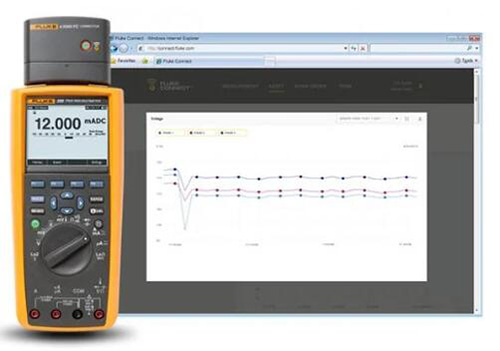

- 连接性和扩展功能:兼容Fluke Connect系统,可配ir3000 FC无线适配器与智能手机应用程序连接,实现远程监控和数据共享,并可通过FlukeView Forms软件生成专业文档报告。
- 耐用性与安全:符合IEC/EN 61010-1第3版标准,能够承受1米跌落,具备IP防护等级,适合各种恶劣工作环境。
- 电源与尺寸:由6节AA碱性电池供电,标称电池寿命在普通模式下至少100小时,在记录模式下可达200小时。仪器尺寸为22.2 x 10.2 x 6厘米(8.75 x 4.03 x 2.38英寸),重量约为870.9克(28盎司)。
Specifications: Fluke 289 FlukeView® Forms Combo Kit
Specifications | ||
Function | ||
DC volts | Range / resolution | 50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V |
Basic accuracy | 0.025% | |
AC volts | Range / resolution | 50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V |
Basic accuracy | 0.4% (True-RMS) | |
DC current | Range / resolution | 500.00 μA, 5000.0 μA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A |
Basic accuracy | 0.05% | |
AC current | Range / resolution | 500.00 μA, 5000.0 μA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A |
Basic accuracy | 0.6% (True-RMS) | |
Temperature (excluding probe) | Range / resolution | -200.0°C to 1350.0°C (-328.0°F to 2462.0°F) |
Basic accuracy | 1.0% | |
Resistance | Range / resolution |
50.000 Ω, 500.00 Ω, 5.0000 kΩ, 50.000 kΩ, 500.00 kΩ, 5.0000 MΩ, 50.00 MΩ, 500.0 MΩ |
Basic accuracy | 0.05% | |
Capacitance | Range / resolution |
1.000 nF,10.00 nF 100.0 nF, 1.000 μF, 10.00 μF, 100.0 μF, 1000 μF, 10.00 mF, 100 mF |
Basic accuracy | 1.0% | |
Frequency | Range / resolution | 99.999 Hz, 999.99 Hz, 9.9999 kHz, 99.999 kHz, 999.99 kHz |
Basic accuracy | 0.005% | |
Connectivity | Optional infrared connector via Fluke ir3000 FC | |
General Specifications | ||
Maximum voltage between any terminal and earth ground | 1000 V | |
Battery type | 6 AA alkaline batteries, NEDA 15A IECLR6 | |
Battery life | 100 hours minimum, 200 hours in logging mode | |
Temperature | Operating | -20°C to 55°C |
Storage | -40°C to 60°C | |
Relative humidity | 0 to 90% (0 to 37°C), 0 to 65% (37°C to 45°C), 0 to 45% (45°C to 55°C) | |
Electromagnetic compatibility | EMC EN61326-1 | |
Vibration | Random vibration per MIL-PRF-28800F Class 2 | |
Shock | 1 meter drop per IEC/EN 61010-1 3rd Edition | |
Size (H x W x L) | 22.2 x 10.2 x 6 cm (8.75 x 4.03 x 2.38 in) | |
Weight | 870.9 g (28 oz) | |
Multiple on screen displays | Yes | |
True-RMS AC bandwidth | 100 kHz | |
dBV/dBm | Yes | |
DC mV resolution | 1 μV | |
Megohm range | Up to 500 MΩ | |
Conductance | 50.00 nS | |
Continuity beeper | Yes | |
Battery/fuse access | Yes/Yes | |
Elapse time clock | Yes | |
Time of day clock | Yes | |
Min-max-avg | Yes | |
Duty cycle | Yes | |
Pulse width | Yes | |
Isolated optical interface | Yes | |
Auto/touch hold | Yes | |
Reading memory | Yes | |
Log to PC | Yes | |
Interval/event logging | Yes | |
Logging memory | Up to 15,000 readings | |
Wireless connectivity (optional) | Yes |
文章来源Fluke,深圳银飞公司有售Fluke289数据记录万用表
