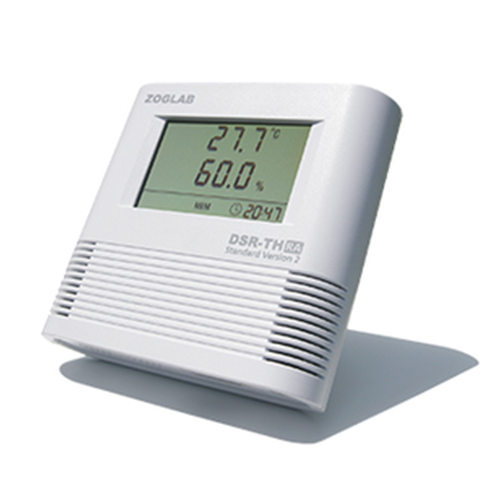

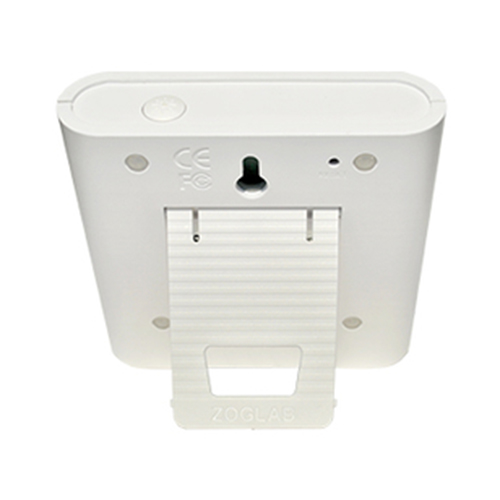

ZOGLAB DSR-THPUA温湿度大气压力记录仪，DSR温湿度记录仪是一种集信号采集、显示、存储、分析于一体的低功耗数字化仪表，可广泛应用于医疗、电子、食品、暖通空调、档案管理、农业研究、纺织、气象、运输、生化实验等领域。经过多年的研究努力，DSR系列记录仪已形成了包括温度、湿度、压力、气体浓度等测量参数在内的丰富产品线，同时还能满足客户对无线传输、物联网监控、系统二次开发的各种需求。DSR系列数字化信号记录仪可提供温度、湿度、大气压力、风速、风向、雨量、辐射CO.浓度等常规环境变化参数的显示、记录、分析。配套强大的图形化界面数据分析软件，使您的专业数据分析成为现实。DSR系列温湿度记录仪目前拥有8种型号,分别为环境温湿度型DSR-TH、单温度型DSR-T、双温度型DSR-TT、外置探头温湿度型DSR-THEXT、温湿度大气压型DSR-THP、温湿度二氧化碳型DSR-THCO温湿度差压型DSR-THDP、差压型DSR-DP。DSR-THUA是一款可以墙挂安装，也可卓面放置的温湿度识录仪。产品功耗低，美观大方，显示清晰明了等特点。10918组温湿度存储容量(其他存储容量可选)，USB通讯接口(其他多种通讯方式可选)。DSR temperature and humidity recorder is a low-power digital instrument integrating signal acquisition, display, storage and analysis, which can be widely used in the fields of medical, electronics, food, HVAC, file management, agricultural research, textile, meteorology, transportation, biochemical experiments and so on. After years of research efforts, DSR series recorder has formed a rich product line including temperature, humidity, pressure, gas concentration and other measurement parameters, but also to meet the customer's wireless transmission, Internet of Things monitoring, system secondary development of a variety of needs.DSR series of digitalized signal recorder can provide the temperature, humidity, atmospheric pressure, wind speed, wind direction, rainfall, radiation CO. concentration and other conventional Environmental change parameters such as display, record, analyze. Supported by powerful graphical interface data analysis software, so that your professional data analysis becomes a reality. DSR series temperature and humidity recorder currently has eight models, respectively, for the environment temperature and humidity type DSR-TH, single temperature type DSR-T, double temperature type DSR-TT, external probe temperature and humidity type DSR-THEXT, temperature and humidity type atmospheric pressure DSR-THP, temperature and humidity carbon dioxide type DSR-THCO temperature and humidity type DSR-THEXT, temperature and humidity type DSR-THP, temperature and humidity type DSR-THEXT, temperature and humidity type DSR-THEXT, temperature and humidity type DSR-THEXT, temperature and humidity type DSR-THEXT. DSR-THCO temperature and humidity differential pressure type DSR-THDP, differential pressure type DSR-DP. DSR-THUA is a temperature and humidity recorder that can be wall-mounted or placed on the surface. The product is characterized by low power consumption, beautiful appearance, clear display, etc. 10918 groups of temperature and humidity storage capacity (other storage capacity is optional), USB communication interface (a variety of other communication methods are optional). 产品应用：医疗行业；食品行业；生化实验室；档案管理；纺织行业；暖通制冷；农业研究；气象行业；运输行业电子行业；仓储库房；洁净厂房。特点及优势：超低功耗,节能环保；更清晰更宽工作温区的液晶显示屏；强大的组网功能和不间断记录；更安全的设计,严格的电磁兼容测试；专业与灵活的电气设计。DSR-THP 温湿压记录仪，同时支持温度/湿度/大气压力的测量与记录，支持超限输出报警，以及可在线校准，500.0hPa~1100.0hPa全量程精度较好的±0.5hPa，符合ISO17025、GLP、航空航天领域等专业规范。数字化组网温湿度记录仪：集信号采集、显示、存储、分析于一体的数字化仪表。超低功耗，节能环保DSR-THP记录仪在待机模式下工作功率不超过0.18mW。1节3.6V/2400mAh的锂电池可以让其工作3~5年。清晰宽温液晶显示屏FSTN技术提供了高达170°的可视范围，让用户从任何角度观察都能获得清晰明亮的数字显示。强大的组网功能DSR-THP记录仪支持RS485/LAN/Wi-Fi/Zigbee等多种形式的组网监控、记录及报警，并可无限地混合组网。更安全设计，严格电磁兼容测试DSR-THP通过 CE、FCC 认证，并严格执行RoHS标准。主机可以耐受25KV静电打击，坚塑料合金外壳使用了阻燃无毒的材料。专业与灵活的电气设计灵活的电源与通信接口，5-24V宽电压输入，极性自动识别，自适应的RS232/485二合一接口，极大地方便了现场调试和安装。Applications: medical industry; food industry; biochemical laboratories; records management; textile industry; HVACR; agricultural research; meteorological industry; transportation industry electronics industry; storage warehouses; clean plants. Features and advantages: ultra-low power consumption, energy saving and environmental protection; clearer and wider working temperature range of the LCD display; powerful networking capabilities and uninterrupted recording; safer design, strict electromagnetic compatibility testing; professional and flexible electrical design.DSR-THP temperature, humidity and pressure recorder, while supporting temperature / humidity / atmospheric pressure measurement and recording, support for over-limit output alarms, as well as can be calibrated online. 500.0hPa~1100.0hPa full-range accuracy of the best ±0.5hPa, in line with ISO17025, GLP, aerospace and other professional specifications. Digital networking temperature and humidity logger: digital instrument integrating signal acquisition, display, storage and analysis. Ultra-low power consumption, energy saving and environmental protection DSR-THP logger in standby mode working power is not more than 0.18mW. 1 section of 3.6V/2400mAh lithium battery can make it work for 3~5 years. Clear Wide Temperature LCD Display FSTN technology provides a viewing range of up to 170°, allowing users to get a clear and bright digital display from any angle of observation. Powerful Networking FunctionDSR-THP recorder supports RS485/LAN/Wi-Fi/Zigbee and other forms of networking monitoring, recording and alarming, and unlimited mixed networking. Safer Design, Strict EMC TestingDSR-THP is CE, FCC certified and strictly enforces RoHS standards. The mainframe can withstand 25KV static strikes, and the tough plastic alloy shell uses flame retardant and non-toxic materials. Professional and flexible electrical design flexible power supply and communication interface, 5-24V wide voltage input, polarity automatic identification, adaptive RS232/485 two-in-one interface, greatly facilitates on-site commissioning and installation.

产品参数　　 温度测量范围：-30℃~70℃ 温度测量精度：±0.3℃(23℃±2℃), 全程±0.5℃ 温度分辨率：0.1℃/0.2℉ 湿度测量范围：0%~100%RH 湿度测量精度：±3%RH(10%~85%RH)/其它范围±5%RH(测试环境23℃±2℃)/±2%RH(高精度版) 湿度分辨率：0.1%RH 数据存储容量 ：10918[A型]/21840[B型]/18万[C型]/36万[D型]组可选（温湿度双通道） 报警设置 ：温湿度上下限报警，显示+讯响+背光 刷新间隔 ：2、5、10、30、60、255秒 记录间隔 ：2秒~24小时可调 延时启动 ：1~120秒 启动模式 ：立即启动/延时启动/定时启动 结束方式 ：存满为止/先进先出/定点存储/定时结束 定时启动/结束 ：任意时间开启 任意时间结束 存储温度 ：-50℃~90℃ 静电防护 ：±25KV 通讯接口 ：RS232/RS485[R]/USB[U]/以太网[L]/无线[W、B、Z、F、G] 电池型号 ：3.6V锂电池 ×1 电池寿命 ：1年使用时间(刷新间隔10秒)，5年(休眠存放) 时钟电池 ：CR2032 时钟精度 ：< 12 分钟/年 外接电源 ：5~24V直流 配套软件 ：ANALYSIS 防护等级 ：IP54传感器 外形尺寸 ：123×117.3×33.4mm 显示区域 ：66×42mm 外壳材质 ：ABS+PC，阻燃，无毒无卤 整机重量 ：260g

Product Parameters　　 Temperature Measuring Range: -30℃~70 Temperature Measurement Accuracy: ±0.3℃(23℃±2℃), ±0.5℃ in whole range Temperature Resolution: 0.1℃/0.2℉ Humidity measurement range: 0%~100%RH Humidity Measurement Accuracy: ±3%RH(10%~85%RH)/Other ranges ±5%RH(test environment 23℃±2℃)/±2%RH(high precision version) Humidity resolution : 0.1%RH Data storage capacity : 10918 [A-type] / 21840 [B-type] / 180,000 [C-type] / 360,000 [D-type] group optional (temperature and humidity dual-channel) Alarm setting: temperature and humidity upper and lower limit alarm, display + sound + backlight Refresh interval ：2、5、10、30、60、255 seconds Recording interval: 2 seconds ~ 24 hours adjustable Delay start ：1~120 seconds Start mode: immediate start / delayed start / timed start End mode: until full/first-in-first-out/fixed-point storage/timed end Timed start/end ：Any time start Any time end Storage temperature ：-50℃~90℃ Static electricity protection ：±25KV Communication interface ：RS232/RS485[R]/USB[U]/Ethernet[L]/Wireless[W,B,Z,F,G]。 Battery type: 3.6V lithium battery ×1 Battery life ： 1 year of use (refresh interval 10 seconds), 5 years (hibernation storage) Clock battery ：CR2032 Clock accuracy ：< 12 minutes/year External power supply ：5~24V DC Supporting software ：ANALYSIS Protection level ：IP54 sensor Overall dimensions ：123×117.3×33.4mm Display area ：66×42mm Shell material ：ABS+PC，flame-retardant，non-toxic and halogen-free Weight ：260g

深圳银飞有售ZOGLAB DSR-THPUA温湿度大气压力记录仪
