Fluke Compact4.0测温仪在光伏行业和太阳能行业的温度测量

Fluke Compact4.0测温仪在光伏行业和太阳能行业的温度测量,文章来源于福禄克,光伏行业的丝网印刷工艺是一种在光伏电池片上印刷电极的原理,主要流程包括背电极印刷、背电场印刷和正面栅极印刷。利用丝网印刷技术将导电浆料均匀地施加在电池片上,形成电极和导线。导电浆料中的导电材料(如银浆)具有良好的导电性能,可以提供电流传输路径。丝网印刷技术可以控制浆料的厚度和形状,以满足太阳能电池的设计要求。烧结过程中,导电材料与基片材料结合在一起,形成稳定的电极和导线结构。每个步骤都有其特定的作用,如形成良好的欧姆接触特性、焊接性能和附着性,以及收集和引出电流。而温度的控制在丝网印刷工艺中显得尤为重要,因为丝网印刷的质量在很大程度上取决于温度控制。如果温度过高或过低,可能会导致浆料干燥不均匀,影响成品质量。另外,适当的温度可以加快浆料的干燥速度,提高生产效率。反之,如果温度控制不当,可能会导致生产效率降低。最后,准确的温度控制可以避免能源的浪费,有助于节能环保。Fluke Compact 4.0 Thermometer for Temperature Measurement in Photovoltaic Industry and Solar Industry, Article from Fluke, The screen printing process in the photovoltaic industry is a principle of printing electrodes on photovoltaic cell wafers, and the main processes include back-electrode printing, back-field printing, and front-face gate printing. Screen printing technology is utilized to apply conductive paste uniformly on the cell to form electrodes and wires. The conductive material in the conductive paste (e.g., silver paste) has good electrical conductivity and can provide a current transmission path. Screen printing technology can control the thickness and shape of the paste to meet the design requirements of the solar cell. The sintering process combines the conductive material with the substrate material to form a stable electrode and wire structure. Each step has a specific role to play, such as forming good ohmic contact characteristics, solderability and adhesion, and collecting and drawing current. And temperature control is especially important in the screen printing process, because the quality of screen printing depends largely on temperature control. If the temperature is too high or too low, it may lead to uneven drying of the paste and affect the quality of the finished product. In addition, the proper temperature can speed up the drying speed of the paste and improve the production efficiency. On the contrary, if the temperature is not properly controlled, it may lead to lower production efficiency. Finally, accurate temperature control can avoid energy waste and help save energy and protect the environment.

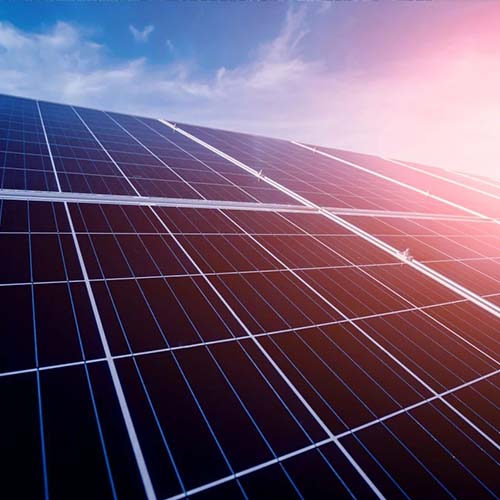

福禄克 Compact 4.0测温仪光伏行业
一般的红外测温仪虽然可以对被测物进行非接触地温度测量,但是需要置于烘箱外,并且对烘箱的观察窗、被测物的温度、大小等均有一定的限制条件,而这些条件往往限制了红外测温仪的应用。因此,有没有一款测温仪能够放置于烘箱内,对被测物进行实时、准确的温度测量呢,来自Fluke过程仪器的Compact 4.0系列测温仪是一款专门为锂电池和太阳能行业设计的紧凑型红外测温传感器。它具有IP65的防护等级,并可在无额外冷却的情况下最高耐受180°C环境温度。这使其能够在严苛的环境下长时间工作,帮助用户优化工艺质量,提高生产效率。General infrared thermometer can be non-contact temperature measurement of the object to be measured, but it needs to be placed outside the oven, and the observation window of the oven, the temperature of the object to be measured, size and so on, there are certain limitations, and these conditions often limit the application of infrared thermometers. Therefore, there is a pyrometer can be placed in the oven, the measured object for real-time, accurate temperature measurement it, from Fluke Process Instruments Compact 4.0 series pyrometer is a specially designed for lithium batteries and solar industry compact infrared temperature sensor. It is IP65 rated and can withstand ambient temperatures of up to 180°C without additional cooling. This enables it to operate for extended periods of time in harsh environments, helping users to optimize process quality and increase productivity.

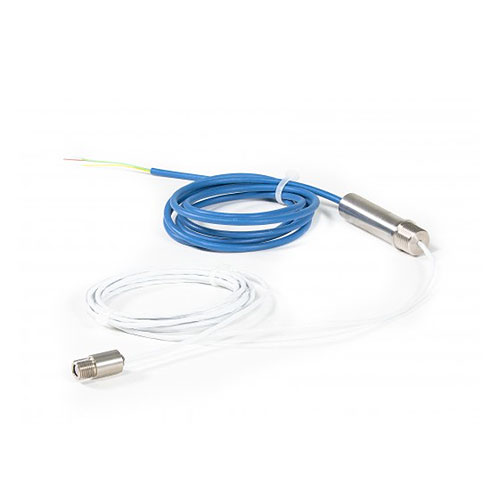

福禄克Compact 4.0测温仪
Compact 4.0测温仪采用了创新的数字技术和标准的两线安装,符合工业4.0标准。它可以提供准确的温度测量,适用于各种过程控制应用。同时,Compact 4.0系列测温仪还具有多种通信方式,如Modbus、4-20mA模拟量等。Compact 4.0系列测温仪在锂电池和太阳能行业中具有广泛的应用。例如,在锂电池行业中,Compact 4.0系列测温仪可以用于电芯、电池组和整车的工艺温度监测。在太阳能行业中,则可以用于太阳能电池板、逆变器和电缆等部件的生产过程温度监测。总之,Compact 4.0系列测温仪是一款功能强大、性能稳定、应用广泛的紧凑型红外测温传感器,为锂电池和太阳能行业提供了可靠的温度监测解决方案。The Compact 4.0 series pyrometer utilizes innovative digital technology and standard two-wire mounting to comply with Industry 4.0 standards. It provides accurate temperature measurement for a wide range of process control applications. Meanwhile, the Compact 4.0 series pyrometers also have a variety of communication methods, such as Modbus, 4-20mA analog, etc. The Compact 4.0 series pyrometer has a wide range of applications in the lithium battery and solar energy industries. For example, in the lithium battery industry, Compact 4.0 series pyrometer can be used for battery cells, battery packs and vehicle process temperature monitoring. In the solar industry, it can be used for solar panels, inverters and cables and other components of the production process temperature monitoring. In short, the Compact 4.0 series is a powerful, stable and widely used compact infrared temperature sensor that provides a reliable temperature monitoring solution for the lithium battery and solar industry.
深圳银飞电子有售Fluke Compact4.0测温仪
