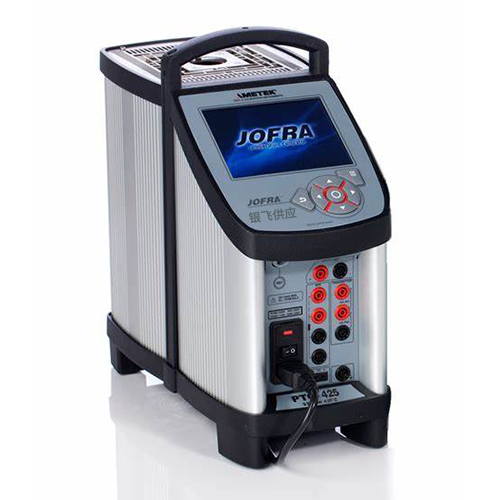

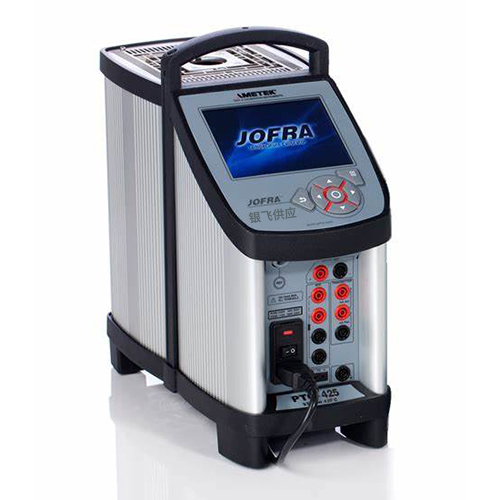

PTC425专业级高精度干体炉
PTC-425专业级高精度干体炉优点一
我们增加了PTC-425，扩大了专业温度校准器PTC系列的范围，其温度范围为33至425oC（91至797oF），使其成为制药、医疗和食品行业灭菌通道以及验证和监控应用的理想选择之一。我们所有的校准器都以其准确性、稳定性和可靠性而闻名。PTC校准器是专门设计的，具有直观、易于使用的界面，并以专有的JofraCal软件为标准。此外，PTC系列采用AMETEK的有源双加热区系统，无论浸入的传感器数量或尺寸如何，都能在插入件中提供高温均匀性。
PTC-425专业级高精度干体炉优点二
PTC-425专业级高精度干体炉优点三
PTC-425专业级高精度干体炉优点四
效率提升：可快速加热/制冷，有效提升工作效率。33℃至425℃仅需10分钟。PTC-425专业级高精度干体炉优点五
校准工单功能，用户使用工单功能可实现全自动校准。自动步进菜单可以设定20 步自动步进，包括每一步的保持时间。完成一个自动步进过程以后，用户可以方便的读出被检探头的读数。很多可以存储20组自动步进测试数据，用户可以通过温度设定功能设置目标温度(分辨率0.01)。PTC-425专业级高精度干体炉优点六
快速校准，升降温速度方面做了很大的提升。例如从33℃~425℃需要仅仅10分钟，快速升降温的好处就在于能够大大减少设备停车时间和校准的成本。独特的双区加热功能：PTC-425 系列干体炉可以对各种型号和类型的温度探头进行精密校准。这得益于它所采用的创新的双区加热技术。PTC-425系列干体炉都具有双区加热功能，每个加热区都可以单独控制进行精确的温度测量。在加热块底部的温度一致性非常接近于实验室液体槽的指标。下面的加热区域保证整个加热块合适的热量消耗，上面的加热区域补偿加热体上部和被测传感器的热量损失。这种设计无需隔热被测探头，可以校准充液式或其他机械式的探头。
PTC-425提供三种型号可供选择
每个PTC校准器有三种型号：A型-无输入校准器；B型-带参考传感器和被测装置输入的校准器；C型校准仪，输入参考传感器。
Temperature
Temperature Range
Range .............................. 33 to 425°C / 91 to 797°F
Accuracy
*PTC-425 with int. ref. sensor @ 33 to 350°C . ±0.20°C /±0.36°F
*PTC-425 with int. ref. sensor @ 350 to 425°C ±0.25°C /±0.45°F
∆PTC-425 with external STS-150 ref. sensor... ±0.13°C /±0.23°F
*Specification when using the internal reference. (Load 4 mm OD reference probe in the center of the insert)
∆12-month period. Relative to reference standard. Specifications by use of the external STS-150 reference sensor.
Stability
PTC-425 ..............................±0.02°C / ±0.036°F
Measured after the stability indicator has been on for 10 minutes. Measuring time is 30 minutes.
Radial Homogeneity (difference between holes)
PTC-425 ..............................0.02°C / 0.036°F
Settings
Resolution ............................1 or 0.1 or 0.01
Units. .................................. °C or °F or K
Heating Time
PTC-425 ..............................33 to 425°C / 91 to 797°F .. .10 minutes
All specifications are given with an ambient temperature 23° C/73.4° F；± 3° C/5.9° F. Specified at 115 V/230 V.
Cooling Time
PTC-425............................425 to 100°C / 797 to 212°F .. .25 minutes
PTC-425............................100 to 50°C / 212 to 122°F .. .16 minutes
Time to Stability (typical)
PTC-425............................10 minutes
Mains Power
Voltage ..................... 115 V (90-127) / 230 V (180-254)
Max Power Consumption.............1150 VA
Frequency, US deliveries .............60 Hz ±3
Frequency, non US deliveries.......50 Hz ±3, 60 Hz ±3
Physical Specifications
Dimension L x W x H .... .362x171x363 mm / 14.3x6.7x14.3 in
Weight
PTC-425............................9.2 kg / 20.3 lb
Immersion Depth
PTC-425............................150 mm / 5.91 in
Well Diameter
PTC-425............................26 mm / 1.02 in
Insert Dimensions (diameter x length)
PTC-425............................25,8 x 155 mm / 1.02 x 6.1 in
Electrical
Switch Input (dry contact)
Test Voltage............................Maximum 5 VDC
Test Current............................Maximum 2.5 mA
Digital Interface：USB2.0
Environmental
Operating Temperature：0 to 40°C / 32 to 104°F
Storage Temperature：-20 to 50°C / -4 to 122°F
Humidity：0 to 90% Rh, non-condensing
Protection Class：IP-10
External Reference Sensor
STS-150-A............................0 to 660°C / 32 to 1220°F
Accuracy
Hysteresis (@ 0°C / 32°F)........................0.01°C / 0.018°F
Long Term Stability (@ 0°C / 32°F) ........ 0.014°C / 0.025°F
Repeatability................................. 0.004°C/ 0.007°F
Note： Stability when exposed to max. temperature for 100 hours
Sensing Element
Type .....................................................Pt100
Response Time
STS-150-A ： t0.5 (50%) .......................7 sec.
STS-150-A： t0.9 (90%) .......................18 sec.
Note： Liquid in motion, 0.4 m/sec
Dimensions
Diameter....................................4 mm / 0.157 in
Length....................................... 203 mm / 7.99 in
Max. height over calibrator top..38 mm / 1.50 in
