KE401 KE401IT-Kit进口寻线仪。由EASYTEST和PROBE组成的电缆查找器套件无需费时剥离电线，技术人员可以快速找到任何类型的电缆、电线或线对。检测电缆中的排列、配置错误、反向对、过载、中断和其他干扰等故障。电缆查找器套件适用于所有类型的电缆，如电力电缆、电话电缆、钟形线、所有类型的数据电缆、同轴电缆、汽车线束和许多其他电缆。
安装和维护通信设施的公司优先考虑的是用户安全，而库尔特很新一代的寻线仪也具备极强的安全性。库尔特寻线仪KE301、KE401、KE501、KE701和KE801系列，具备高额定电压等级，意外接触到交流电源、中继器电压和有源通信电缆时能有效防护。这样的电压通常至少会损坏其他小型测试仪，并且很坏的情况是在用户手中产生电弧。

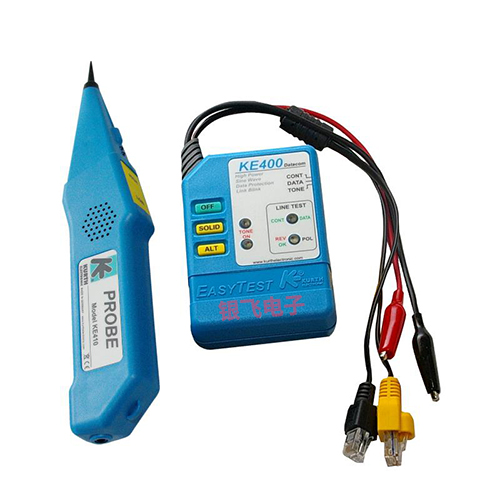

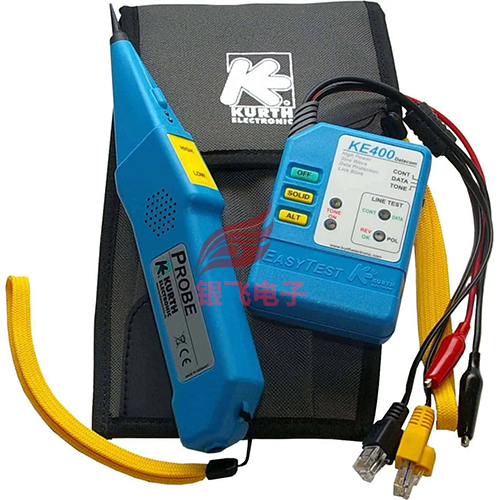

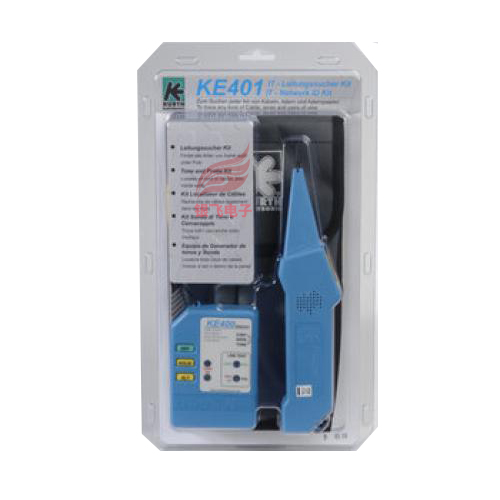

KE401 KIT寻线仪套件

Without time-consuming stripping of wires the cable finder kit, consisting of EASYTEST & PROBE, allows technicians to find any kind of cable, wires or pairs contact-free rapidly. Faults such as permutations, misarranged configurations, reversed pairs, overdrafts, interruptions and other disturbances in the cable are detected. The cable finder kits are suitable for all types of cables such as power cables, telephone cables, bell wires, and all classes of data cables, coax cable, wire harnesses in motor vehicles and many others.

KE401 IT Kit:

• Designed for IT & Telco cable tracing and pair identification
• RJ11, RJ45 connectors & alligator clips
• Data Port test with HUB-Blink function
• ISDN signal detection with Probe
• 120 V AC overvoltage protection

PROBE 310/410 (contact-free receiver) The PROBE is a contact-free test speaker that receives the signals sent by EASYTEST and makes them audible. The green signal strength LED with filter function indicates the precise 1KHz signal from the EASYTEST. Interfering signals, e.g. 50 Hz or the harmonics thereof, are filtered out. The PROBE KE410 additionally has a red LED, with which an ISDN UK0 line can be found. This makes it easy to detect an active ISDN UK0 line at e.g. distribution boxes. A flashlight function with pure white light guarantees clear colour recognition of the wire markings in dark distribution boxes. Note: In the US version of PROBE KE310, the green signal level LED detects a frequency of 557.5 Hz rather than 1KHz. The test probe of the PROBE is made of fiber-reinforced, conductive plastic with a bayonet lock for easy replacement on site without opening the device. At the lower end of the PROBE there is a connection socket for an optionally available earphone (Art.-No. 49600), with which signals from greater distances (up to 150 cm) can still be easily tracked. The PROBE is switched on by pressing the HIGH or LOW buttons. The HIGH position is the most sensitive level for finding weak signals. In the LOW position, for example, the found wire pair or cable is specified.
