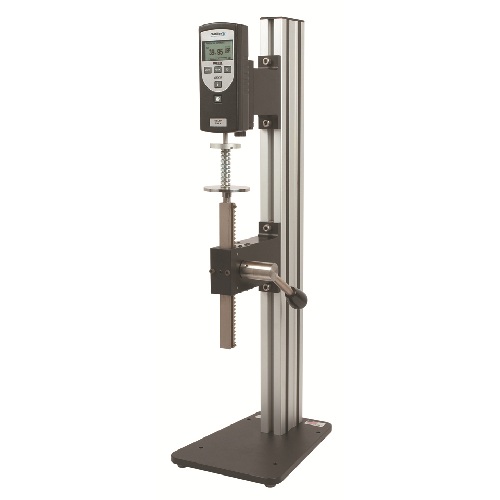

Chatillon MT系列手动测试机架
负载测试应用的手动测试机架较大测试量程可以达到500 lbf (2.5 kN)。 Chatillon MT 系列手动测试机架是灵活易用的负载测试解决方案。它有两种型号：MT150 为 150 lbf（660 N）规格，MT500 为 500 lbf（2.5 kN）规格。 150 毫米（6 英寸）的弯喉深度使MT系列特别适合测试大尺寸样本，可拆卸底盘适合各种公制和英制螺纹工装。 该手动测试机架适用于拉伸测试、压缩测试、剥离和弯曲测试。 它可以装配速动拉杆或精密手轮，以控制横梁速度和行程。 MT 系列手动测试机架......
产品描述
负载测试应用的手动测试机架较大测试量程可以达到500 lbf (2.5 kN)。
Chatillon MT 系列手动测试机架是灵活易用的负载测试解决方案。它有两种型号：MT150 为 150 lbf（660 N）规格，MT500 为 500 lbf（2.5 kN）规格。
150 毫米（6 英寸）的弯喉深度使MT系列特别适合测试大尺寸样本，可拆卸底盘适合各种公制和英制螺纹工装。
该手动测试机架适用于拉伸测试、压缩测试、剥离和弯曲测试。
它可以装配速动拉杆或精密手轮，以控制横梁速度和行程。
MT 系列手动测试机架通常装配 DFX II 测力计使用，以检查按压按钮所需力度，或装配 LG 机械测力计，在喷瓶装盖的生产线终端实施低负载的拉伸测试。。它们还可用于测试纸箱折成正确形状所需的载荷。
MT 系列主要特点：
- 易于使用
- 紧凑型，轻巧台式设计，可置于台面或挂壁
- 可水平放置
- 可选柱高（750、1000 和 1500 毫米）
MT500 Series Mechanical Force Tester
The CHATILLON®MT500 Series mechanical test stand is an easy-to-use solution for force measurement applications up to 500 lbf (2.5 kN) capacities. The test stand may be equipped with a quick-action lever or precision handwheel for controlling crosshead speed and travel. The MT500 test stand can be bench mounted, wall mounted or positioned horizontally. Vertical clearances are available from 750mm (29.5 inch) up to 1500mm ( 60 inch). Standard stroke is 6 inches (150 mm), although longer strokes can be accommodated as a special order.
The MT500 Series features an innovative design that maximizes working space and simplifies operation and maintenance. The single column design with 150mm (6 in) throat is ideal for large specimens. The removable platen is designed to accommodate metric and imperial threaded fixtures. Special gauge adapter make gauge alignment automatic. Options include a digital travel indicator, capable of displaying travel up to 0.01mm (0.0005 inch) and column ruler which is graduated in millimeters and inches.
The MT500 Series includes hook, compression plate, adapters and gauge mounting hardware.
Features
Tensile, Compression, Peel & Flexural Testing
Optional Column Heights
- 500mm Standard
- 1000mm Extended
- 1500mm Ultra
6-inch Stroke
- Longer Strokes Available as Special Order
Compact, Lightweight, Benchtop Design
- Table & Wall Mount Options
Simple Operation
- Lever Actuation
- Handwheel Actualtion
Mounts to Chatillon DF Series Force Gauges
2 Year Warranty
Specifications
MT150 Series Mechanical Force Tester
The CHATILLON®MT150 Series mechanical test stand is an easy-to-use solution for force measurement applications up to 150 lbf (660N) capacities. The test stand may be equipped with a quick-action lever or precision handwheel for controlling crosshead speed and travel. The MT150 test stand can be bench mounted, wall mounted or positioned horizontally. Vertical clearances are available from 750mm (29.5 inch) up to 1500mm ( 60 inch). Standard stroke is 6 inches (150 mm), although longer strokes can be accommodated as a special order.
The MT150 Series features an innovative design that maximizes working space and simplifies operation and maintenance. The single column design with 150mm (6 in) throat is ideal for large specimens. The removable platen is designed to accommodate metric and imperial threaded fixtures. Special gauge adapter make gauge alignment automatic. Options include a digital travel indicator, capable of displaying travel up to 0.01mm (0.0005 inch) and column ruler which is graduated in millimeters and inches.
The MT150 Series includes hook, compression plate, adapters and gauge mounting hardware.
Features
Tensile, Compression, Peel & Flexural Testing
Optional Column Heights
- 500mm Standard
- 1000mm Extended
- 1500mm Ultra
6-inch Stroke
- Longer Strokes Available as Special Order
Compact, Lightweight, Benchtop Design
- Table & Wall Mount Options
Simple Operation
- Lever Actuation
- Handwheel Actuation
Mounts to Chatillon DF Series Force Gauges
2 Year Warranty
Specifications
150 毫米（6 英寸）的弯喉深度使MT系列特别适合测试大尺寸样本，可拆卸底盘适合各种公制和英制螺纹工装。
该手动测试机架适用于拉伸测试、压缩测试、剥离和弯曲测试。
它可以装配速动拉杆或精密手轮，以控制横梁速度和行程。
MT 系列手动测试机架通常装配 DFX II 测力计使用，以检查按压按钮所需力度，或装配 LG 机械测力计，在喷瓶装盖的生产线终端实施低负载的拉伸测试。。它们还可用于测试纸箱折成正确形状所需的载荷。
MT 系列主要特点：
- 易于使用
- 紧凑型，轻巧台式设计，可置于台面或挂壁
- 可水平放置
- 可选柱高（750、1000 和 1500 毫米）
MT500 Series Mechanical Force Tester
The CHATILLON®MT500 Series mechanical test stand is an easy-to-use solution for force measurement applications up to 500 lbf (2.5 kN) capacities. The test stand may be equipped with a quick-action lever or precision handwheel for controlling crosshead speed and travel. The MT500 test stand can be bench mounted, wall mounted or positioned horizontally. Vertical clearances are available from 750mm (29.5 inch) up to 1500mm ( 60 inch). Standard stroke is 6 inches (150 mm), although longer strokes can be accommodated as a special order.
The MT500 Series features an innovative design that maximizes working space and simplifies operation and maintenance. The single column design with 150mm (6 in) throat is ideal for large specimens. The removable platen is designed to accommodate metric and imperial threaded fixtures. Special gauge adapter make gauge alignment automatic. Options include a digital travel indicator, capable of displaying travel up to 0.01mm (0.0005 inch) and column ruler which is graduated in millimeters and inches.
The MT500 Series includes hook, compression plate, adapters and gauge mounting hardware.
Features
Tensile, Compression, Peel & Flexural Testing
Optional Column Heights
- 500mm Standard
- 1000mm Extended
- 1500mm Ultra
6-inch Stroke
- Longer Strokes Available as Special Order
Compact, Lightweight, Benchtop Design
- Table & Wall Mount Options
Simple Operation
- Lever Actuation
- Handwheel Actualtion
Mounts to Chatillon DF Series Force Gauges
2 Year Warranty
Specifications
| Load Capacity: | 500 lbf, 2.5 kN |
| Column Heights: | 500mm Standard |
| 1000mm Extended | |
| Stroke | 1500mm Ultra |
| 6 inches (152mm) | |
| Travel Rates: | Longer Strokes Available |
| Lever Actuator: | 75mm per Revolution |
| Handwheel Actuator: | 12mm per Revolution |
| Load Measurement: | Chatillon DF Gauges |
| Operating Temperature: 40°F to 110°F | |
| Instrument Weight: | 5°C to 45°C |
| 20 lbs (9 kg) | |
| Shipping Weight: | 25 lbs (12 kg) |
MT150 Series Mechanical Force Tester
The CHATILLON®MT150 Series mechanical test stand is an easy-to-use solution for force measurement applications up to 150 lbf (660N) capacities. The test stand may be equipped with a quick-action lever or precision handwheel for controlling crosshead speed and travel. The MT150 test stand can be bench mounted, wall mounted or positioned horizontally. Vertical clearances are available from 750mm (29.5 inch) up to 1500mm ( 60 inch). Standard stroke is 6 inches (150 mm), although longer strokes can be accommodated as a special order.
The MT150 Series features an innovative design that maximizes working space and simplifies operation and maintenance. The single column design with 150mm (6 in) throat is ideal for large specimens. The removable platen is designed to accommodate metric and imperial threaded fixtures. Special gauge adapter make gauge alignment automatic. Options include a digital travel indicator, capable of displaying travel up to 0.01mm (0.0005 inch) and column ruler which is graduated in millimeters and inches.
The MT150 Series includes hook, compression plate, adapters and gauge mounting hardware.
Features
Tensile, Compression, Peel & Flexural Testing
Optional Column Heights
- 500mm Standard
- 1000mm Extended
- 1500mm Ultra
6-inch Stroke
- Longer Strokes Available as Special Order
Compact, Lightweight, Benchtop Design
- Table & Wall Mount Options
Simple Operation
- Lever Actuation
- Handwheel Actuation
Mounts to Chatillon DF Series Force Gauges
2 Year Warranty
Specifications
| Load Capacity: | 150 lbf, 660 N |
| Column Heights: | 500mm Standard |
| 1000mm Extended | |
| Stroke | 1500mm Ultra |
| 6 inches (152mm) | |
| Travel Rates: | Longer Strokes Available |
| Lever Actuator: | 75mm per Revolution |
| Handwheel Actuator: | 12mm per Revolution |
| Load Measurement: | Chatillon DF Gauges |
| Operating Temperature: 40°F to 110°F | |
| Instrument Weight: | 5°C to 45°C |
| 20 lbs (9 kg) | |
| Shipping Weight: | 25 lbs (12 kg) |
