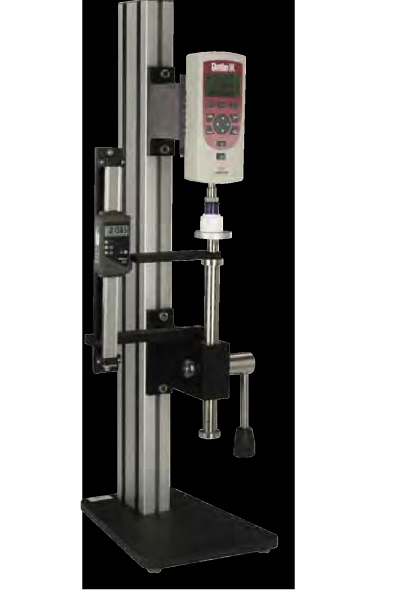

MT150 Series Mechanical Force Tester

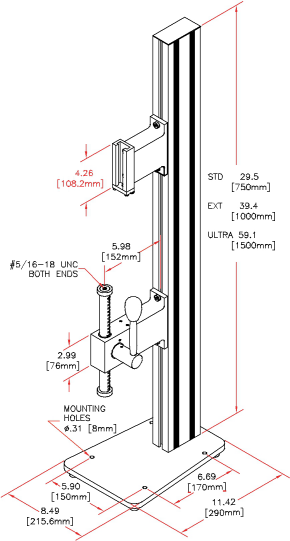

The CHATILLON®MT150 Series mechanical test stand is an easy-to-use solution for force measurement applications up to 150 lbf (660N) capacities. The test stand may be equipped with a quick-action lever or precision handwheel for controlling crosshead speed and travel. The MT150 test stand can be bench mounted, wall mounted or positioned horizontally. Vertical clearances are available from 750mm (29.5 inch) up to 1500mm ( 60 inch). Standard stroke is 6 inches (150 mm), although longer strokes can be accommodated as a special order.

The MT150 Series features an innovative design that maximizes working space and simplifies operation and maintenance. The single column design with 150mm (6 in) throat is ideal for large specimens. The removable platen is designed to accommodate metric and imperial threaded fixtures. Special gauge adapter make gauge alignment automatic. Options include a digital travel indicator, capable of displaying travel up to 0.01mm (0.0005 inch) and column ruler which is graduated in millimeters and inches.

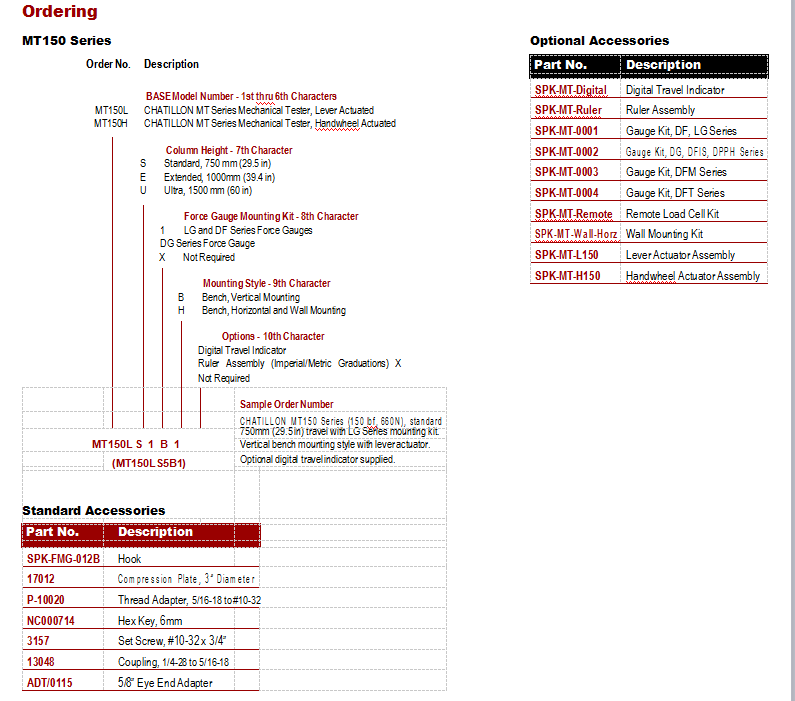

The MT150 Series includes hook, compression plate, adapters and gauge mounting hardware.




Features
 Tensile, Compression, Peel & Flexural Testing

 Optional Column Heights

- 500mm Standard

- 1000mm Extended

- 1500mm Ultra

 6-inch Stroke

- Longer Strokes Available as Special Order

 Compact, Lightweight, Benchtop Design

- Table & Wall Mount Options

 Simple Operation

- Lever Actuation

- Handwheel Actuation

 Mounts to Chatillon DF Series Force Gauges

 2 Year Warranty




Specifications

Load Capacity:	150 lbf, 660 N
Column Heights:	500mm Standard
	1000mm Extended
Stroke	1500mm Ultra
	6 inches (152mm)
Travel Rates:	Longer Strokes Available
Lever Actuator:	75mm per Revolution
Handwheel Actuator:	12mm per Revolution
Load Measurement:	Chatillon DF Gauges
Operating Temperature: 40°F to 110°F
Instrument Weight:	5°C to 45°C
	20 lbs (9 kg)
Shipping Weight:	25 lbs (12 kg)
