泰克科技低带宽光探头提供您可以依赖的性能以及业内领先的服务和支持。
宽波长响应500至950nm 或者1100至1700nm
高带宽DC至1.2GHz
高增益1 V/mW
低噪声<11 pW/√Hz
探头连接到DPO7000*1 和 DPO/DSA/MSO70000*2 系列
SONET/SDH 和光纤通道参考接收机性能

主要参数	P6701B低带宽光探头	P6703B低带宽光探头
波长响应范围	500 -950nm	1100-1650nm
带宽1 (Typical)	DC - 1.0 GHz	DC - 1.2 GHz
上升时间 (Typical)	≤ 500 ps	≤ 395 ps
转换增益	1 V/mW	1 V/mW
较大输入光功率	1 mW (0 dBm)2	1 mW (0 dBm)2
	10 mW (10 dBm)3	10 mW (10 dBm)3
	20 mW (13 dBm)4	20 mW (13 dBm)4
较大输出调制深度	≤ 200 mVp-p	≤ 200 mVp-p
等效噪声功率*NEP	≤ 0.87 NEP μW (RMS)5	≤ 0.59 μW (RMS)5
	≤ 28 pW per √Hz	≤19 pW per √Hz
较大输入光纤芯径	62.5 μm	62.5 μm



备注：
1--光带宽（-6dB电信号 带宽）
2--较大平均工作功率
3--较大平均无损伤功率
4--较大峰值无损伤功率
5--1 GHz低通滤波器输出


测试参考：

Small, conveniently packaged P6701B and P6703B optical-to-electrical analog converters provide an accurate interface for optical pulse shape measurements.

Features and benefits

• Broad Wavelength Response 500 to 950 nm or 1100 to 1700 nm
• High-bandwidth DC up to 1.2 GHz
• High Gain 1 V/mW
• Low Noise
• Probe Connects to DPO7000 1 and DPO/MSO70000 2 Series
• SONET/SDH and Fibre Channel Reference Receiver Performance:
  • TDS500C/700C (Opt. 3C or 4C)
  • P6701B – Fibre Channel up to 1063 Mb/s
  • P6703B – SONET/SDH up to 622 Mb/s

1Requires the TPA-to-BNC adapter
2Requires the TCA-to-BNC adapter

Applications

• Eye Pattern Testing of Optical Communication Signals (SONET/SDH and Fibre Channel)

Product description

The Tektronix P6700 Series optical-to-electrical (O/E) converters change optical signals into electrical signals for convenient analysis on Tektronix DPO7000 and DPO/MSO70000 Series oscilloscopes with appropriate adapters (see footnote 1 and 2), any other Tektronix oscilloscope equipped with a TekProbe interface, or when used with the 1103 TekProbe power supply. The P6700 Series O/E converters are ideal for optical source characterization in the development, manufacture, or service of optical communication systems and devices.

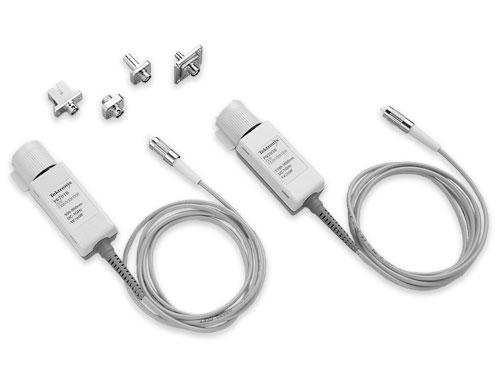

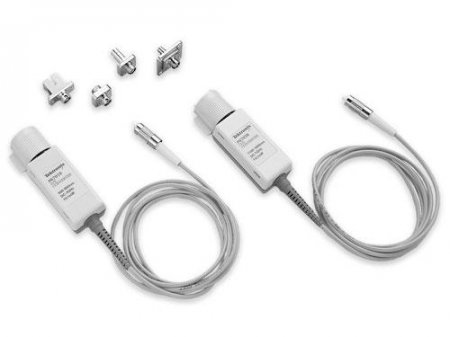

Small, conveniently packaged P6701B and P6703B optical-to-electrical analog converters provide an accurate interface for optical pulse shape measurements. The high gain, large dynamic range, and stable output offset of these O/E converters make them ideal for performing eye pattern analysis and extinction measurements.
The P6701B/P6703B optical input is a 1 meter, 62.5μ Multi Mode fiber with an FC/PC connector. Using the standard assortment of hybrid fiber-optic mating sleeves, these O/Es can accommodate the various industry connector standards.
The TekProbe interface provides power, auto-scaling, auto-termination, and correct units (microwatts) when used with Tektronix DPO7000 or DPO/MSO70000 and earlier TekProbe-equipped Series oscilloscopes.

Performance you can count on

Depend on Tektronix to provide you with performance you can count on. In addition to industry-leading service and support, this product comes backed by a one-year warranty as standard.
The standard P6701B has a nominal frequency response which follows the fourth-order Bessel-Thompson for Fibre Channel 1063 Mb/s. The 1103 TekProbe power supply can be used to connect these products to the DSA8300 Series sampling oscilloscopes.

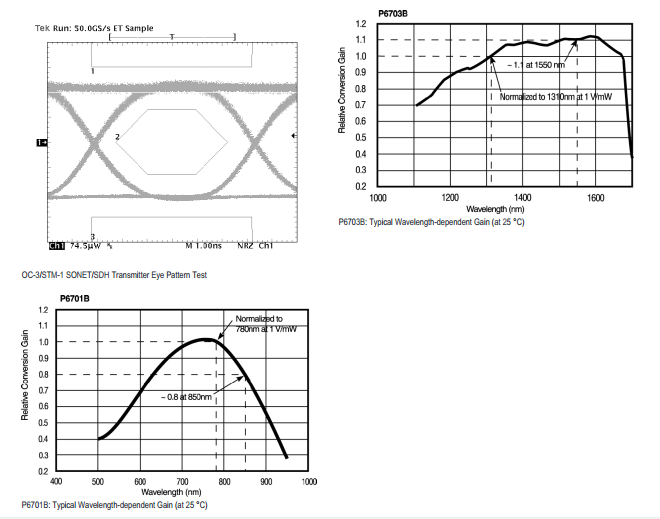

OC-3/STM-1 SONET/SDH Transmitter Eye Pattern Test
P6701B: Typical Wavelength-dependent Gain (at 25 °C)
P6703B: Typical Wavelength-dependent Gain (at 25 °C)
