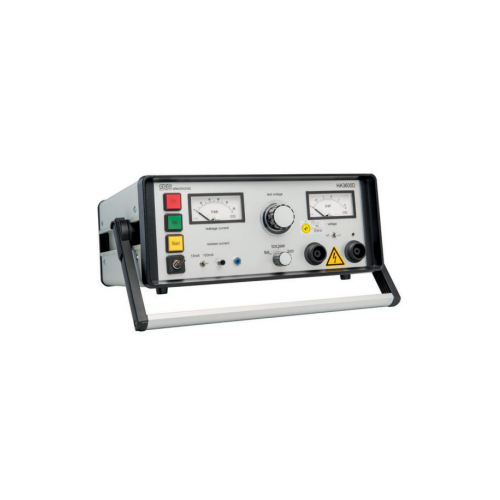

HA3600A 耐压测试仪 德国SPS electronic
产品描述
下列的表格是HA3600A耐压测试仪和HA3600D耐压测试仪的参数性能作一个比较,如下表:
Device variants |
||
Type |
HA3600A已停产 |
HA3600D |
High voltage AC |
0,25 - 5 kVAC / 100mA |
range 1: 0,25 - 2,5 kVAC / 100mA range 2: 0 - 5 kVAC / 100mA |
Short circuit current |
200 mA |
200 mA |
Transformer capacity |
500 VA |
500 VA |
Tripping current |
0 - 100 mA |
range 1: 0 - 10 mA range 2: 0 - 100 mA |
Indicating instrument |
analog voltage display |
analog voltage display analog current display |
Time basis |
--- |
time base: 1sec. - 60 min. |
Potential |
free |
free |
Plug-in |
14" / 3 HU |
14" / 3 HU |
Weight |
ca. 18 kg |
ca. 18 kg |
Power supply |
230 V / 50 Hz or 115 V / 60 Hz |
230 V / 50 Hz or 115 V / 60 Hz |
