The Art of Precision Calibration: A Comprehensive Analysis of the JOFRACAL Temperature and Pressure Calibration Software
In the realm of precision engineering and quality control, calibration is not merely a technical operation; it is an art of precise craftsmanship that guards the accurate functioning of measuring devices. On this journey in pursuit of ultimate precision, the JOFRACAL temperature and pressure calibration software serves as a wise guide, leading us through the complex labyrinth of calibration, ensuring each step is robust and accurate.
Overview of JOFRACAL Temperature and Pressure Calibration Software

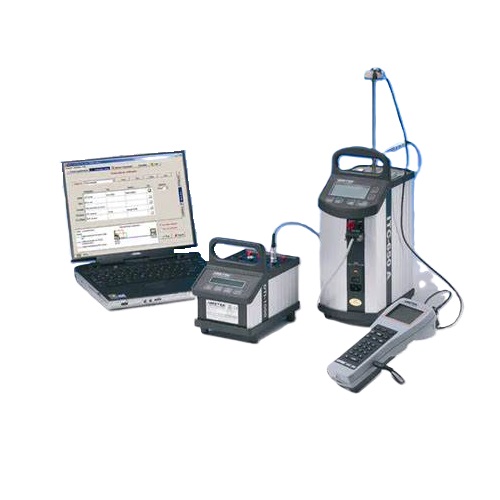

The JOFRACAL software supports all JOFRA temperature, pressure, and signal calibrators equipped with RS232 interfaces, including JOFRA DTI reference thermometers. It provides fully automated sensor calibration and semi-automated complete process loop calibration, which are performed via a PC. The software handles comparisons between process readings and reference values, meeting the requirements of ISO9000, GMP, or HACCP systems.
Features of JOFRACAL Software
User-Friendly Database: Calibration procedures and results are stored in a user-friendly database similar to a resource manager, including search and sorting functions.
Flexible Temperature Calibration: Different temperature sources can be chosen, such as dry block calibrators, liquid baths, and ovens.
Reduction of Calibration Time: Two dry blocks can be controlled simultaneously, significantly reducing overall calibration time.
Scheduling Program Function: Future calibrations can be planned, listing tags, locations, and expiration dates.
Use of JOFRACAL Software
Temperature Calibration: The software supports various configurations, including manual and automatic temperature calibration.
Pressure Calibration: Manual and semi-automatic pressure calibration options are available, supporting the calibration of analogue pressure gauges, digital pressure gauges, transducers, and switches.
Equipment Maintenance: JOFRACAL differentiates between temperature and pressure equipment to reflect their differences.
Device History: The history of the tested device's calibrations, including deviation points, can be viewed.
Scheduling Program: Previous calibration times are listed, allowing for planning and scheduling future calibrations.
JOFRACAL: The Eye of Calibration
As a carefully crafted calibration solution by AMETEK, JOFRACAL software not only supports all JOFRA temperature, pressure, and signal calibrators with RS232 interfaces but also stands out in the field of calibration with its exceptional performance and user-friendly design. Its creation represents the culmination of an unwavering pursuit of precision and a profound understanding of the complexity of the calibration process.
Multipurpose Integration: The Swiss Army Knife of Calibration
The versatility of JOFRACAL software functions like a Swiss Army knife, integrating the needs of various calibration scenarios. Whether it's RTDs, thermocouples, transducers, thermistors, pressure gauges, or pressure switches, JOFRACAL provides comprehensive calibration support. It not only works perfectly with JOFRA temperature calibrators but also collaborates with JOFRA pressure and signal calibrators, even functioning as an independent product, showcasing its exceptional flexibility and adaptability.
User-Friendly Navigation
In the world of JOFRACAL, user-friendly design acts as a clear navigation map, guiding users through complex calibration processes. The software offers multiple screens with easily readable information and instructions, providing a intuitive working interface. Both beginners and experienced technicians can efficiently complete calibration tasks under the guidance of JOFRACAL.
Multiple Sensor Input: Symphony of Calibration
When combined with the JOFRA ASM signal multiplexer, JOFRACAL can simultaneously calibrate up to 24 sensors, creating a symphony where each sensor is a harmonious note, collectively playing the melody of precise calibration. This efficient calibration capability greatly enhances work efficiency and reduces calibration time.
Clear Calibration View: The Painting of Calibration
The graphical display feature of JOFRACAL is like a beautiful painting, offering a clear view of calibration results. Whether viewed online in real-time or printed on certificates, users can quickly gain a comprehensive overview of the calibration outcomes. This clear visualization not only increases the transparency of calibration but also strengthens the credibility of the calibration results.
Functional Depth Analysis: The Hidden Power of JOFRACAL
The power of databases: Memory bank for calibration
JOFRACAL stores calibration procedures and results in a structured database, acting as a memory bank that records every detail of each calibration. This database is easy to search and sort, helping users rapidly find frequently used calibration programs and ensuring consistency and traceability in the calibration process.
Temperature Calibration Flexibility: The Chameleon of Calibration
In temperature calibration, JOFRACAL offers great flexibility. Users can choose different temperature sources according to their needs, whether dry block calibrators, liquid baths, or ovens, JOFRACAL provides accurate calibration solutions. This flexibility adapts to various environments like a chameleon, ensuring the accuracy and reliability of calibration.
Reducing Calibration Time: The Calibration Accelerator
JOFRACAL's ability to control two dry blocks simultaneously represents an accelerator, significantly reducing overall calibration time. In today's time-is-efficiency era, this functionality greatly boosts work efficiency and cuts production costs.
Scheduling Program: The Planner of Calibration
JOFRACAL's scheduling program functions as a savvy planner, assisting users in planning future calibration tasks. By listing tags, locations, and calibration due dates, users can manage calibration plans effortlessly, ensuring all equipment is calibrated on schedule, maintaining the continuity and stability of the production process.
Calibration Practice: Application Scenarios of JOFRACAL
Temperature Calibration: Precise Temperature Control
For temperature calibration, JOFRACAL offers both manual and automatic modes. Whether using the JOFRA ATC as a heating/cooling source or manually inputting calibration data, JOFRACAL provides consistent appearance and data storage, ensuring uniformity and accuracy in all temperature calibrations.
Pressure Calibration: Precise Measurement of Pressure
In pressure calibration, JOFRACAL supports manual and semi-automatic calibration suitable for analog pressure gauges, digital pressure gauges, pressure transmitters, and pressure switches. Through JOFRACAL, users can achieve precise calibration of pressure devices, ensuring the accuracy and reliability of pressure measurement.
Equipment Maintenance and History: Guardian of Calibration
JOFRACAL categorizes calibration equipment into temperature and pressure types, reflecting the differences between them and aiding better maintenance. Its equipment history function allows users to review the calibration history of test equipment, including deviation at calibration points, serving as a guardian for the long-term stable operation of the equipment.
JOFRACAL, the wise partner for calibration
JOFRACAL is a temperature and pressure calibration software that stands out with its multifunctionality, user-friendliness, efficiency, and accuracy, becoming the intelligent companion in the field of calibration. It not only simplifies the calibration process and enhances work efficiency but also ensures the accuracy and reliability of calibration results. In the pursuit of precision, JOFRACAL shines like a beacon, illuminating the path of calibration and guiding us towards the pinnacle of exactitude.
The article is from the Temperature Calibrator（温度校验仪）
