Broadcast Power Monitors.RF Power Monitors that continually monitor VSWR and RF Power

BPME Series, Broadcast Power Monitors accurately monitor RF power and VSWR continuously in addition to providing the ability to set alarms for important power and VSWR thresholds and enable data logging for a wide range of frequencies and power levels.

Features

• A single line display divided into two fields.
• Displays forward power, and either reflected power or the match measurement. An indicator in the lower right of the last digit blinks on and off to indicate communication with the BPME, RF Power Monitor.
• Displays match measurements as VSWR, Rho, Return Loss, or efficiency.
• Supplies DC power to the BPME.
• Displays the BPME alarm status.
• Provides an electrical interface for the discrete outputs from the BPME.
• Provides a serial interface to connect a PC to the BPME.

Attribute	Details

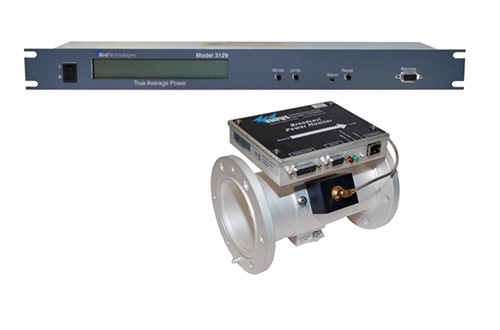

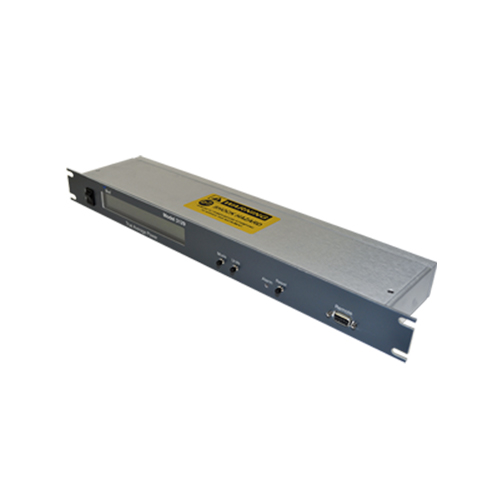

Model Number	3129A Display
Product Title	BPME Broadcast Power Monitor Display
Display Type	20-character LCD with LED backlight
RS-232 Serial Port Connector (Input)	Male DB-9
Input Serial Port Protocol	RS-232, 9600 baud rate, no parity, 8 data bits, 1 stop bit, no handshaking
Power Alarm Parallel Port Connector	DB-15 Male Connector
Remote Computer Connector (Output)	DB-9 Female Connector
Output Serial Port Protocol	RS-232, 9600 baud rate, no parity, 8 data bits, 1 stop bit, no handshaking
Power Requirements	115/230 VAC @ 50/60 Hz, 0.6A
Domestic AC Connector	North American power cord standard type SVT, 300 VAC, 18 AWG, 10 A, 3-core (with ground)
International AC Connector	H05VV-F type, 300 VAC, 1.00 mm², 10 A, 3-conductor (with ground)
Operating Temperature	–10 to +50 °C (+14 to 122 °F)
Storage Temperature	–40 to +80 °C (–40 to +176 °F)
Relative Humidity	Maximum 95% ±5% (non-condensing)
Operating Altitude	3000 meters (10,000 feet)
Dimensions	1U, rack-mountable; 19 inches x 1.75 inches x 5 inches (483 x 44 x 127 millimeters)
Weight	Less than 10 pounds
