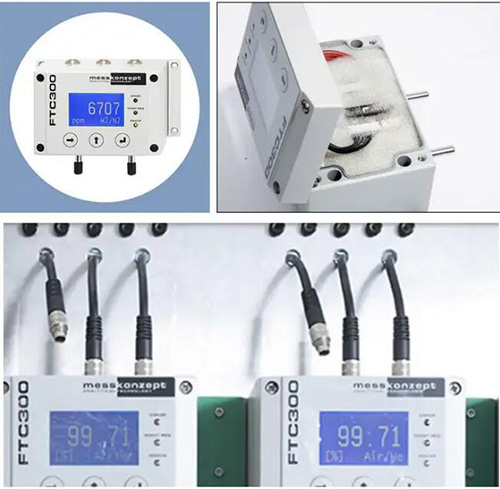

Messkonzept的FTC300-He热导氦气分析仪是一款采用先进热导原理的设备，其独特之处在于单台分析仪经过适当配置后，能够胜任对16种不同二元气体组分的检测任务。这款分析仪在测试每个二元气体组分时，其量程范围广泛，覆盖了从0至100%的体积浓度，且具备出色的分辨率，可达1ppm，确保了测量数据的精确性。其精度高达0.5%满量程（FS），进一步保证了分析结果的可靠性。值得注意的是，Messkonzept的FTC300-He热导氦气分析仪的气体传感器响应速度非常快，仅需1秒即可达到T90的时间点，这极大地提升了分析效率和实时监测能力。经过精心标定后的FTC300-He分析仪，能够在特定的范围内对二元气体进行精准测量此外，为了适应各种复杂环境下的应用，Messkonzept的热导氦气分析仪采用了特殊的薄膜处理技术。这种处理使得分析仪在高湿度和存在腐蚀性气体的环境中仍能保持稳定的测量性能，展现了其强大的环境适应性和耐用性。Messkonzept的FTC300-He热导氦气分析仪体积小，重量轻，易于集成到系统中

Messkonzept的FTC300-He热导氦气分析仪凭借其多功能性、高精度、快速响应以及优良的环境耐受性，成为了一款在多种气体检测场景中不可或缺的专业工具。无论是科研实验、工业生产还是环保监测等领域，它都能提供可靠的数据支持和卓越的使用体验。
The FTC300 is a thermal conductivity analyzer with outstanding properties for measuring tasks in process analytics. The device is characterized by high measurement accuracy and stability. It has a comfortable operating menu that allows you to adjust, parameterize and configure without much effort. In addition, operator and data access via an RS232 interface are possible, as well as various analog signal inputs and outputs. The robust design of the FTC300 is designed in protection class IP65 and enables operation at ambient temperatures of -20 ° C to + 50 ° C and is pressure-resistant up to 20 bar. For the measurement of hydrogen in nitrogen, the smallest measuring range is 0 to 0.5 vol.%. The thermal conductivity analyzer FTC300 can be set up in such a way that switching between different measuring tasks is possible. Concentration determination in up to 16 different binary gas mixtures is possible. This option can be ordered under the keyword “Multi Gas Mode” The FTC300 provides a highly effective routine for cross-sensitivity compensation, which can be flexibly adapted to the respective measurement task. It requires as an input external voltage signal, which represents the concentration of the cross-sensitivity causing gas components.
