DRUCK DPI705E的附件选项
DRUCK DPI705E的附件选项Accessories，DPI705E / DPI705E-IS与以下配件兼容。除非另有说明，否则所有附件均与产品的本质安全或非本质安全版本兼容。建议用户购买原厂配套的适配器转接头。The DPI705E / DPI705E-IS is compatible with the following accessories. All accessories are compatible with either the Intrinsically Safe or Non-Intrinsically Safe versions of the product unless otherwise specified.
| 订购编号Part Code | 产品描述Description |
| IO-RTD-M12CON | Field wireable M12 connector 4-pin to fit RTD-INTERFACE |
| IO-RTD-M12EXT | M12 male to female extension lead 2m (6.6ft) 4-wire |
| IO-RTD-PRB150 | 150mm length 6mm diameter PT100 steel RTD probe Class A |
| PM700E-CABLE | Remote Sensor Extension Cable 2.9m (9.5ft) |
| IO705E-STRAP | Magnetic Hanging Strap with Loop |
| IO705E-CASE | Carry Case (for non-Intrinsically Safe DPI705E Unit) |
| IO705E-CASE-IS | Carry Case (for Intrinsically Safe DPI705E-IS Unit) |
| IO-ADAPT-G1/4 | G1/4 female pressure adaptor |
| IO-ADAPT-1/4NPT | 1/4 NPT pressure adaptor |
| IO-ADAPT-1/8NPT | 1/8 NPT pressure adaptor |
| IO-ADAPT-QF | Quick-fit hose pressure adaptor |
| IOHOSE-NP1 | Nylon hose, 1m (3.3ft) length, 20bar/300psi MWP |
| IOHOSE-NP2 | Nylon hose, 2m (6.6ft) length, 20bar/300psi MWP |
| IO620-HOSE-P1 | Pneumatic Hose, 1m (3.3ft) length, 100bar/1500psi MWP |
| IO620-HOSE-P2 | Pneumatic Hose, 2m (6.6ft) length, 100bar/1500psi MWP |
| IO620-HOSE-H1 | Hydraulic Hose, 1m (3.3ft) length, 1000bar/15000psi MWP |
| IO620-HOSE-H2 | Hydraulic Hose, 2m (6.6ft) length, 1000bar/15000psi MWP |
| IO620-HOSE-P1-IS | Pneumatic Hose for IS units, 1m (3.3ft) length, 100bar/1500psi MWP |
| IO620-HOSE-P2-IS | Pneumatic Hose for IS units, 2m (6.6ft) length, 100bar/1500psi MWP |
| IO620-HOSE-H1-IS | Hydraulic Hose for IS units, 1m (3.3ft) length, 1000bar/15000psi MWP |
| IO620-HOSE-H2-IS | Hydraulic Hose for IS units, 2m (6.6ft) length, 1000bar/15000psi MWP |
| IO620-BSP | 5 adaptors AMC Quick connect to G1/4F, G3/8F, G1/2F, G1/4M, G1/8M |
| IO620-NPT | 5 adaptors AMC Quick connect to 1/4NPTF, 3/8NPTF, 1/2NPTF, 1/4NPTM, 1/8NPTM |
| IO620-MET | 2 adaptors AMC Quick Connect to M14F & M20F |
| IO620-COMP | 2-way comparator adaptor AMC Quick connect male to 2 X AMC quick connect Female – for comparing 2 gauges simultaneously. |

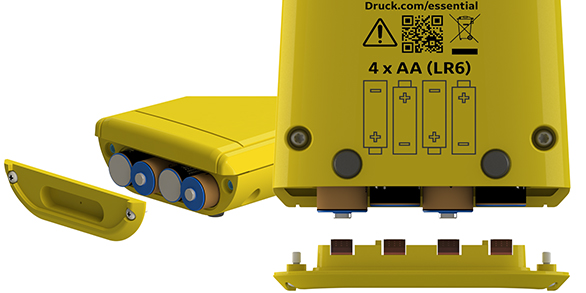

DRUCK DPI705E压力指示仪的电池，有关兼容的电池类型，请参阅设备随附的快速入门和安全手册，Druck DPI705E 数字压力指示器 压力测试仪需要 4 节 AA/LR6 电池，安装如下图所示。使用一把小的Posidrive螺丝刀松开电池仓盖上的螺丝，并按照仪器背面显示的电池方向进行安装，如下图所示。
Batteries
For compatible battery types refer to Quick Start and Safety Manual provided with the unit .
The DPI705E instrument requires 4xAA/LR6 batteries, fitted as shown below. Use a small Posidrive screwdriver to loosen the screws in the battery compartment cover and fit as per the battery orientation shown on the back of the instrument as illustrated below:
