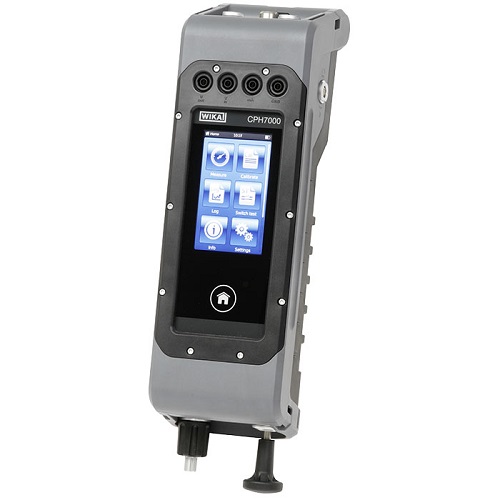

Portable process calibrator CPH7000.The model CPH7000 process calibrator is a precise, portable calibrator for the calibration and checking of analogue pressure measuring instruments, pressure transmitters and process transmitters. The CPH7000 in Ex version can also be used in hazardous areas. Furthermore, pressure switches can be checked and the switching point determined. With the CPH7000, not only can transmitters be checked, but also simulated and tested.

■ Calibration service companies and service industry

■ Measurement and control laboratories

■ Quality assurance

■ On-site calibration (safety also in hazardous areas)

The calibrator offers the possibility to set calibration routines

quickly and easily, but also to run preconfigured calibration

routines and automatically save the measured values. Over

the WIKA-Wireless interface, the completed calibration

processes can be transmitted to a PC. This data can

subsequently be evaluated and archived using WIKA-Cal

software. Thus a completely paperless transmitter calibration

is possible with just the CPH7000.

■ Manual pressure generation of -0.85 … +25 bar[12.3 ... +360 psi]

■ Accuracy: 0.025 % FS (incl. calibration certificate)

■ Generation/measurement of 0 ... 24 mA and voltagesupply DC 24 V

■ Data logger with high measuring rate and large memory

■ Intrinsically safe version

1. Digital process calibrator model CPH7000

Indication: Display Touchscreen colour display

Display resolution: up to 5 digits; selectable

Pressure units: mbar, bar, psi, Pa, kPa, hPa, MPa, mmHg, cmHg, inHg, mmH2O, mH2O, inH2O (4 °C),inH2O (20 °C), inH2O (60 °F), inHg (0 °C), inHg (60 °F), kg/cm², kp/cm², lbf/ft², kN/m², atm, Torr,micron, g/l (20 °C), kg/m³ (20 °C) as well as two user-defined units

Settings

Applications (Apps): Measure, calibrate, logger, switch test

Measuring rate: Pressure  50/s

                         Current/Voltage  60/s

                         Application pressure switch  60/s

                         Pt100/AMB module  1/s

Refresh rate display: 4/s

Menu languages: English, German, Spanish, French, Italian, Russian, Arabic, Chinese (settable)

Connections

External pressure sensor 1): max. 2, compatible with model CPT7000 reference pressure sensors

External ambient module 1): max. 1 ambient module 2)

External temperature probe 1): max. 1 temperature probe 2)

Manual pressure generation 1): -0.85 … +25 bar [-12.3 ... +360 psi]

Voltage supply

Power supply: internal Lithium-Ion rechargeable battery (typical charging time < 7 h)

Battery life: minimum 8 hours 3)

Permissible ambient conditions

Operating temperature: -10 ... +50 °C [14 ... 122 °F]

Storage temperature: -20 ... +50 °C [-4 ... +122 °F]

Ambient temperature when charging: 0 ... 40 °C [32 ... 104 °F] (only allowed outside the hazardous areas)

Air humidity: at 35 °C [95 °F]: max. 90 % r. h. (non-condensing)

                    at 40 °C [104 °F]: max. 75 % r. h. (non-condensing)

                    at 50 °C [122 °F]: max. 45 % r. h. (non-condensing)

Shock and vibration: 15 g per EN 60068-2-6

Communication

Interface: WIKA-Wireless 4)

Case

Material: PC + ABS blend

Ingress protection: IP54 category 2 (tested according to ATEX and IECEx: IP20)

Dimensions: see technical drawing

Weight: approx. 1.9 kg [4.19 lbs.] without internal pump and reference sensor

             approx. 2.5 kg [5.51 lbs.] incl. internal pump and reference sensor



2. Internal sensor technology

Overpressure safety: 3 times

Accuracy of the measuring chain 6): 0.025 % of span 7)

Resolution: 5 digits

Pressure connection: G ⅛ B female thread or ⅛ NPT female thread (only with selected pneumatic unit)

Barometric reference 1) 8)

Measuring range: 850 ... 1,100 mbar [12.3 ... 16 psi]

Accuracy: ±1 mbar

Electrical safety

Resistance to overvoltage: Yes

Short-circuit resistant: Yes

Reverse polarity protection: Yes

Voltage-resistant: Up to 60 V

Input impedance

Current measurement: 20 Ω

Voltage measurement: 1 MΩ

Current

Measuring input: 0 … 30 mA (mA socket)

Supply: 0 … 24 mA (VOUT socket)

Resolution: 1 µA

Accuracy Measure: 0.01 % ±1 µA 9)

Supply: 0.01 % ±2 µA

Voltage

Measuring input DC 0 … 30 V (VIN socket)

Supply DC 24 V (VOUT socket)

Resolution 1 mV

Accuracy 0.01 % or reading ±1 mV



3. Power supply unit model FW7530

Input voltage: AC 100 ... 240 V, 50 ... 60 Hz

Output voltage: DC 12 V

Nominal output current: 2,500 mA

Permissible ambient conditions

Operating temperature: 0 ... 40 °C [32 ... +104 °F]; up to 90 % r. h. (non-condensing)

Storage temperature: -40 ... +70 °C [-40 ... +158 °F]

Air humidity: 20 ... 80 % r. h. (non-condensing)



4. Temperature probe Pt100 1)

Measuring range: -50 ... +250 °C [-58 ... +482 °F]

Accuracy: 1/10 DIN, class B ±0.1 °C 10)

Probe length: 200 mm [7.87 in]

Probe diameter: 3 mm [0.12 in]

Cable length: 1 m [3.28 ft]

Connection to CPH7000: max. 1 temperature probe 2)

User-defined RTD probe: Input of the coefficients of R0, A, B and C



5. Ambient module 1)

Measuring range

Air humidit: 0 ... 100 % r. h.

Temperature: -30 ... +125 °C [-22 ... +257 °F]

Accuracy

Air humidity: ±5 % r. h.

Temperature: ±0.2 K [0.36 °F]

Connection to CPH7000: max. 1 ambient module 2)



6. WIKA-Wireless 4)

Frequency range: 2,400 ... 2,500 MHz

HF output power: max. 2 dBm (+ 2 dBi)

Number of channels: 79

Channel spacing: 1 MHz

Bandwidth: 80 MHz

Output power: 4 dBm / 10 mW



7. Reference conditions per IEC 61298-1

Atmospheric pressure: 860 hPa < P < 1,060 hPa [12.5 psi < P < 15.4 psi]

Ambient temperature: 18 °C < T < 28 °C, typ. 23 °C

Air humidity: 35 % r. h. < T < 95 % r. h. , typ. 55 % r. h.

Position: Hand-held lying face-up



8. Permissible ambient conditions

Medium temperature -20 ... +60 °C [-4 ... +140 °F] 12)

-20 ... +80 °C [-4 ... +176 °F]

Operating temperature -20 ... +80 °C [-4 ... +176 °F]

Storage temperature -20 ... +80 °C [-4 ... +176 °F]

Relative humidity 0 ... 95 % r. h. (non-condensing)

Temperature compensation 10 ... 60 °C [50 ... 140 °F]

Temperature coefficient Zero point = 0.1 % / 10 K

Span = 0.1 % / 10 K

Case

Material Stainless steel

Connection to the CPH7000 Option: external operation via 1 m or 3 m [3.28 ft or 9.84 ft] connection cable (plug-and-play)

Ingress protection IP65 / IP67 when connected

Dimensions see technical drawing

Weight approx. 230 g [0.5 lbs.]

The CPH7000 optionally features an integrated reference pressure sensor and also a manual pressure generation, with which pressures of -0.85 ... +25 bar [12.3 ... +360 psi] can be generated. It is possible to simultaneously power an external transmitter via the electrical module and to measure (or also simulate) its output signal.The CPH7000 is temperature compensated and achieves an accuracy of 0.025 % of span. In order to avoid intricate calculations, the measured values can also be displayed directly in customer-specific units.
